ME-SFI ignition ON function - GF07.61-P-3005GS
ENGINE 111.951 /952 /955 /956 /957 /958 /982 /983 with CODE (925) low emission EURO3

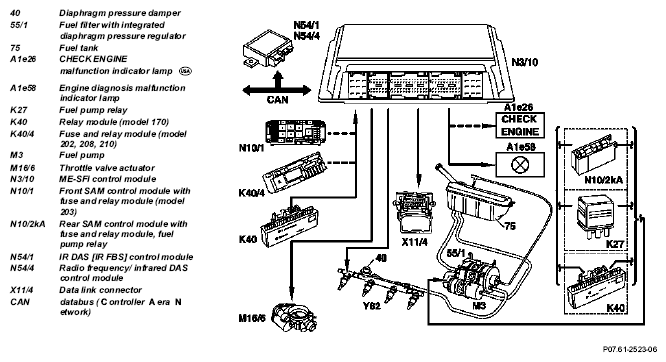

Functions with ignition ON:
- Supplying voltage to the ME-SFI fuel injection and ignition system through the relay module (K40), fuse and relay module (K40/4) or front SAM control module with fuse and relay module (N10/1).
- Actuating the fuel pump for about 5 s as a full running protection (partially audible).
- Indicator lamps in the instrument cluster must come on (bulb check)
- At ignition ON, data transfer over CAN databus (e.g. for drive authorization)
If the fuel pump does not run, first of all test the fuses at the fuse and relay module (K40/..) or front SAM control module with fuse and relay module (N10/1) for voltage supply of ME-SFI control module, as well as the fuse of the fuel pump.
Model 170: Test crash relay (K56) if indicator lamps in instrument cluster do not come on.
| Battery | Charge state | ||
| Electronic ignition switch (EIS) control module position/task/design/function | Model 202, 208, 210 | GF80.57-P-4102A | |
| Voltage supply ME-SFI control module function | GF07.61-P-5001F | ||
| ME-SFI control module position / task / design / function | GF07.61-P-5000GS | ||
| ME-SFI fuel supply function | GF07.61-P-3004GS | ||
| Fuel pump relay position / task / design / function | GF54.15-P-4105L | ||
| Fuel pump position/task/design/function | GF47.20-P-4003L | ||
| Fuel filter with integrated fuel pressure regulator position/task/design/function | GF47.20-P-4100A | ||
| CHECK-ENGINE malfunction indicator lamp (A1e26) position/task/function | only |
GF07.13-P-3144F | |
| Engine diagnosis malfunction indicator lamp position/task/function | low emission EURO3/4 | GF54.30-P-4102A | |
| Throttle valve actuator position/task/design/function | GF30.22-P-4101GS | ||
| Crash relay (K56) position/task/function | Model 170 | GF15.40-P-5011A | |
| Relay module position / task / design / function | Model 170 | GF54.10-P-4033K | |
| Front SAM control module with fuse and relay module position/task/design | Model 203 | GF54.21-P-4108PP |
