ME-SFI acceleration enrichment function - GF07.61-P-3015GS

ENGINE 111.951 /952 /955 /956 /957 /958 /982 /983 with CODE (925) low emission EURO3

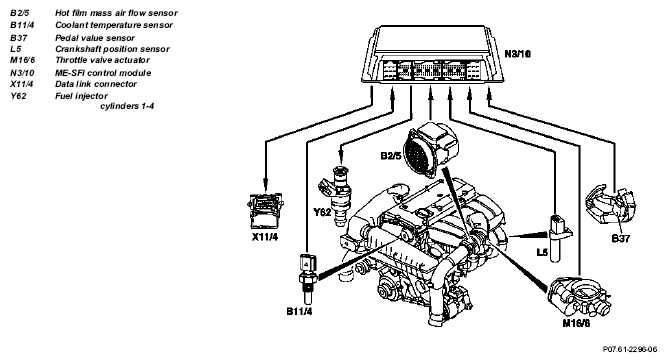

Fig 1: ME-SFI Acceleration Enrichment Function - Engine 111.951 /952 /955 /956 /957 /958 /982 /983 With Code (925) Low Emission EURO3

Acceleration jerks are prevented by means of acceleration enrichment.

If the throttle valve is opened rapidly during acceleration, a leaner mixture is produced for a short time. An additional quantity of fuel is supplied to the engine in line with the control map. The injectors are actuated by means of additional pulses for this purpose.

Acceleration enrichment is dependent on:

Coolant temperature
Load change rate (accelerator sensor rate)
Engine speed
Engine load
Correction programming with STAR DIAGNOSIS

	ME-SFI control module position / task / design / function		GF07.61-P-5000GS
	Coolant temperature sensor position/task/design/function		GF07.04-P-5026G
	Electronic accelerator function		GF30.20-P-3010E
	Crankshaft position sensor position/task/design/function		GF07.04-P-4116F
	Hot film mass air flow sensor position/task/design/function		GF07.07-P-4118GS
	Pedal value sensor position/task/design/function		GF30.20-P-4011L
	Throttle valve actuator position/task/design/function		GF30.22-P-4101GS
	Fuel injector position/task/design/function		GF07.03-P-5004F
	Correction programming function		GF07.61-P-3031F
