ME engine speed signal, function - GF07.61-P-3017V

ENGINE 272.920 in MODEL 203

ENGINE 272.922 in MODEL 211

ENGINE 272.940 in MODEL 203, 209

ENGINE 272.941 in MODEL 203

ENGINE 272.942 in MODEL 171

ENGINE 272.943 in MODEL 211

ENGINE 272.944 in MODEL 211

ENGINE 272.945 in MODEL 251

ENGINE 272.946 in MODEL 221

ENGINE 272.960 in MODEL 203, 209

ENGINE 272.963 in MODEL 171

ENGINE 272.964 in MODEL 211, 219

ENGINE 272.965 in MODEL 221

ENGINE 272.966 in MODEL 230

ENGINE 272.967 in MODEL 164, 251

ENGINE 272.970 in MODEL 203

ENGINE 272.972 in MODEL 211

ENGINE 272.975 in MODEL 221

ENGINE 273.922 in MODEL 221

ENGINE 273.923 in MODEL 164

ENGINE 273.924 in MODEL 221

ENGINE 273.943 in MODEL 164

ENGINE 273.960 in MODEL 211, 219

ENGINE 273.961 in MODEL 216, 221

ENGINE 273.962 in MODEL 211

ENGINE 273.963 in MODEL 164, 251

ENGINE 273.965 in MODEL 230

ENGINE 273.967 in MODEL 209

ENGINE 273.968 in MODEL 221

Shown on ENGINE 272

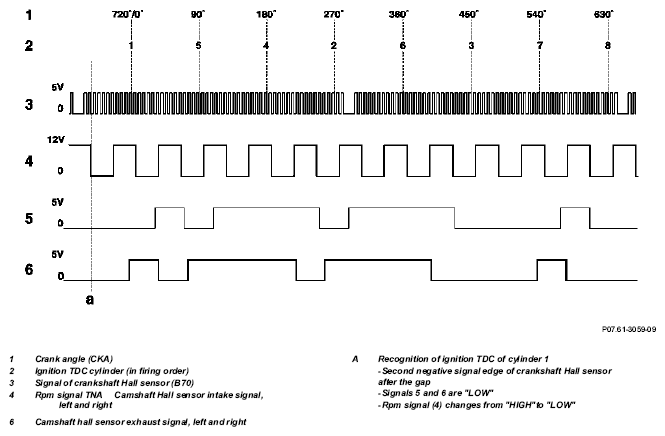

Fig 1: Signal Assignment Of ME Engine Speed (Shown On Engine 272)

Shown on ENGINE 273

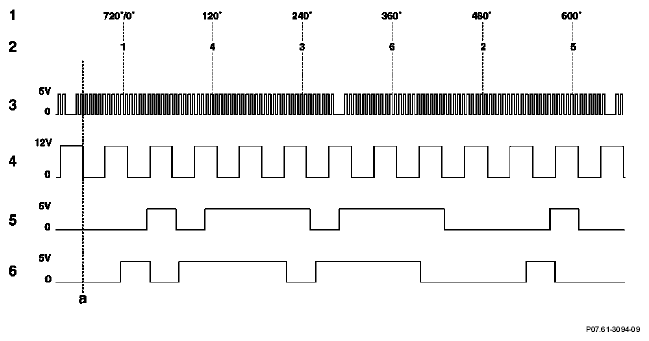

Fig 2: Signal Assignment Of ME Engine Speed (Shown On Engine 273)

The short-circuit proof engine speed signal "TNA" is generated from the signals from the crankshaft Hall sensor in the ME control unit. The output stage output can accept a maximum load of 20 mA.

The signal is picked up at the data link connector. In addition, the control unit outputs a CAN message with the engine speed to further control units and to the instrument cluster.

The engine speed signal "TNA" is a square wave signal with a constant duty cycle. 6 pulses are output per engine revolution. If the signal from the crankshaft Hall sensor fails, then the signals of the camshaft Hall sensor are used as a replacement.

	Component description for the ME-SFI [ME] control unit		GF07.61-P-6000V
	Component description for the crankshaft Hall sensor		GF07.04-P-6220V
	Component description for the camshaft Hall sensor		GF07.04-P-6020V
