Fuel consumption signal, function - GF07.61-P-3029D

ENGINE 271.921 in MODEL 203

ENGINE 271.940 in MODEL 203, 209

ENGINE 271.941 in MODEL 211

ENGINE 271.944 in MODEL 171

ENGINE 271.946 in MODEL 203

ENGINE 271.948 in MODEL 203

ENGINE 271.955 in MODEL 209

ENGINE 271.956 in MODEL 211

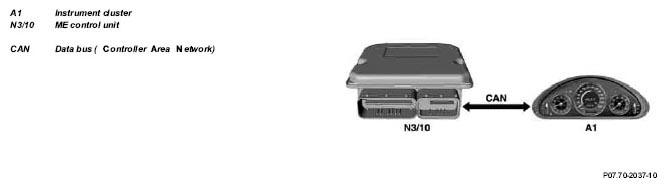

Fig 1: Identifying Instrument Cluster, ME Control Unit And Data Bus (Controller Area Network) (Engine 271)
G04738391

The current fuel consumption is sent to the trip computer in the instrument cluster via the CAN data bus from the ME control unit in the form of square-wave pulse packages.

The fuel consumption signal is calculated from the instrument cluster (e.g. 8 l/hour).

IMPORTANT One square-wave pulse means 0.2 l/hour.

  Component description for the ME control unit N3/10 GF07.61-P-6000KE
