Position display, function - GF27.19-P-5129-03P
Transmission 722.6 in model 203 up to 31.05.03, 215, 220 up to 31.08.02
The position display and program selection display in the instrument cluster (A1) is actuated via the CAN engine compartment. The program selection performed at the transmission mode switch (S16/5) is transmitted from the ETC [ETC] control unit (N15/3) to the instrument cluster (< >) and the selector lever position is transmitted from the electronic selector lever module control unit (N15/5) to the instrument cluster (A1).
The program selection performed at the transmission mode switch (S16/5) remains stored only after driving for approx. 1 minute and is then displayed again after the engine is started again. The driving time required of approx. 1 minute is due to the system.

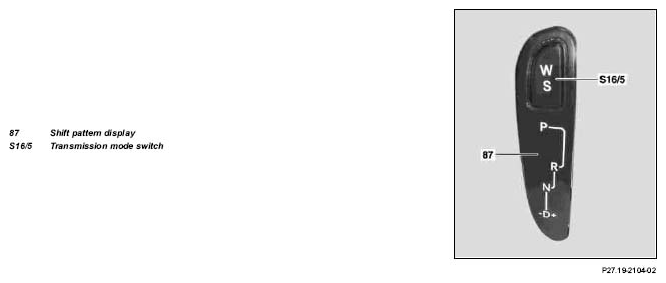

The shift pattern display (87) is illuminated when the driving lights are switched on.
Shown on Model 203
