Dynamic seat switch, location/task - GF91.25-P-2110S

MODEL 220 as of 1.9.02 with CODE (433) Left dynamic seat, incl. multicontour seat with CODE (434) Right dynamic seat, incl. multicontour seat

Location

Dynamic seat switch

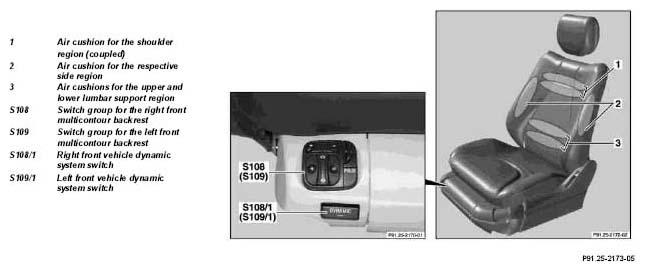

Fig 1: Identifying Dynamic Seat Switches Location
G04851624
  Dynamic seat switch, location The right/left front DS [FDS] switch group (S108/1;S109/1) in each case is located under the front multicontour backrest switch group on the seat cushion.
  Dynamic seat switch, task To switch the dynamic lateral support function on and off.
