Remove/install windshield - AR67.10-P-1000M: Notes

MODEL 220

	Remove
	Risk of injury  from slipping when clamping the blade in the multicutter and from glass splinters when cutting out cemented windows	Always interrupt air supply when inserting or removing blade. Wear protective gloves and protective glasses.	AS67.00-Z-0001-01A
1	Prepare glue cartridge		AR67.10-P-1000-07P
		Repair kit	*BR00.45-Z-1015-02A
2	Remove rain sensor		AR82.30-P-7700M
3	Unclip daylight sensor		AR82.10-P-2400I
4	Remove wiper arms		AR82.30-P-6100M
5	Remove water repellent over wiper system		AR83.25-P-1406M
6	Disconnect electric connector (2) for window heater
7	Remove both panels on outside of A-pillar		AR88.80-P-8500M
8	Remove ornament frame on windshield.		AR67.10-P-1200M

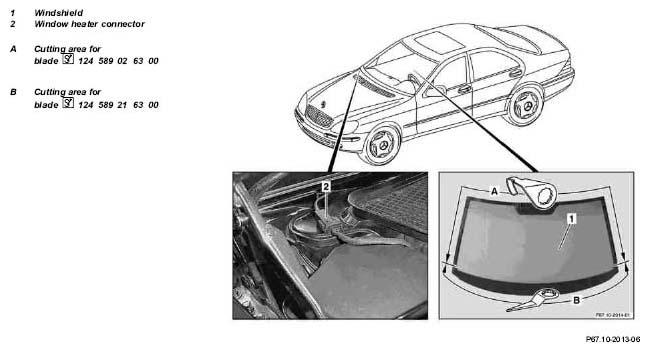

9	Cut windshield out with cutting blade		AR67.10-P-1000-01M
			Figure
			Figure
			*WH58.30-Z-1003-20A
10	Remove windshield from body with cup suction tool		*WE58.40-Z-1029-11A
	Install
11	Replace window rubber spacers	Do not remove protective foil	AR67.10-P-1000-02M
12	Align windshield in body opening		AR67.10-P-1000-04K
13	Prepare windshield for insertion		AR67.10-P-1000-03P
14	Prepare body flange for glazing		AR67.10-P-1501-01P
15	Remove protective foil from rubber windshield spacers
16	Open side window in driver's door.	During curing time, this prevents windshield from being pressed outward by air pressure when doors are closed
17	Smooth sealing channel with hand roller		Fig 4
18	Apply cement	Install window within 10 minutes before adhesive force of glue starts to decrease Height of glue bead approx. 13 mm	AR67.10-P-1000-08P
		Betagun 2K electric cartridge gun	*WH58.30-Z-1002-20A
19	Install windshield	Curing time is approx. 1 hour, calculated from the time the windshield is installed.	AR67.10-P-1503-01K
			*WE58.40-Z-1029-11A
20	Install ornamental frame on windshield		AR67.10-P-1200M
21	Install both panels on outside of A-pillar		AR88.80-P-8500M
22	Install water repellent over wiper system		AR83.25-P-1406M
23	Install wiper arms		AR82.30-P-6100M
24	Connect electric connector (2) for window heater
25	Install rain sensor		AR82.30-P-7700M
26	Clip in daylight sensor		AR82.10-P-2400I
27	Clean windshield
28	Reinitialize rain sensor	Doors and engine hood should be closed
		Diagnosis system STAR DIAGNOSIS	*WH58.30-Z-1048-13A

Number	Designation		Model 220
BE67.10-P-1001-01A	Distance between window upper edge and front edge of roof	Dim. "A"	12
		For figure, see	AR67.10-P-1000-04K

Number	Designation
WH58.30-Z-1048-13A	STAR DIAGNOSIS diagnosis system, Compact Passenger Car	6511 1801 00
WH58.30-Z-1002-20A	Electric cartridge gun
WH58.30-Z-1003-20A	Multicutter

WE58.40-Z-1029-11A

Cup suction tool for window removal and installation

Number	Designation	Order number
BR00.45-Z-1015-02A	Repair kit	A 220 670 00 93
