Electronic ignition/starter switch control module, location - GF80.57-P-4102-02S

Models 215, 220

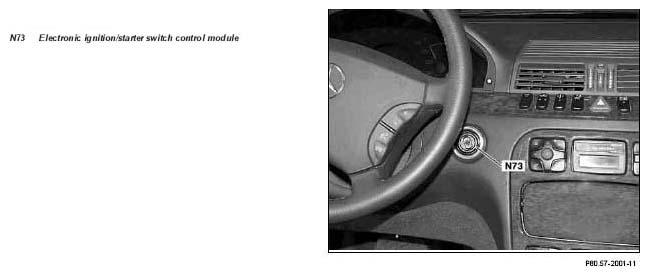

Fig 1: Identifying Electronic Ignition/Starter Switch Control Module - Illustrated On Model 220
G04850178

Illustrated on model 220
