Voice control system switch, location/task - GF82.70-P-4100M

MODELS 215.3, 220.0 /1 as of 1.9.03 with CODE (813) Voice control system (VCS)

Shown on model 211

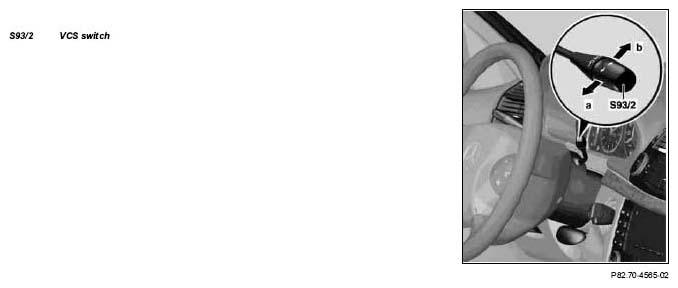

Fig 1: Identifying Voice Control System Switch - Shown On Model 211
G04841064
  Voice control system switch, location The VCS switch (S93/2) is installed on the right side of the steering column module (N80).
  Voice control system switch, purpose The VCS switch (S93/2) reads in the following driver requests:
  • Activation of the VCS and the hands-free system of the telephone
  • Deactivation of the VCS
