Multifunction steering wheel networking of components - GF82.90-P-0001-01SN

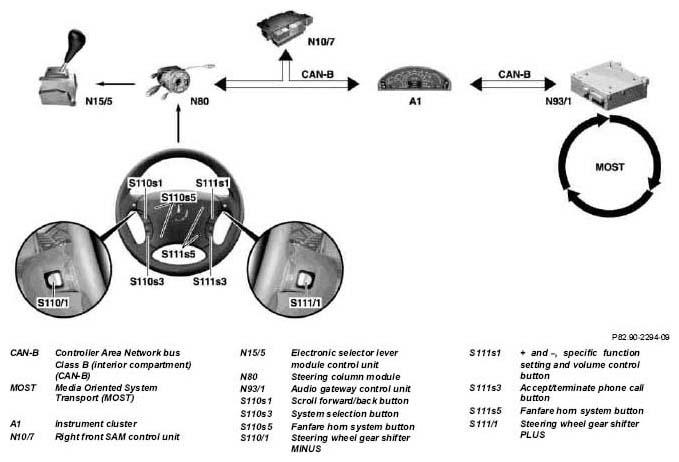

Fig 1: Multifunction Steering Wheel Component Networking Diagram

G04841110
