Multifunction steering wheel, networking of components - GF82.90-P-0001-01I

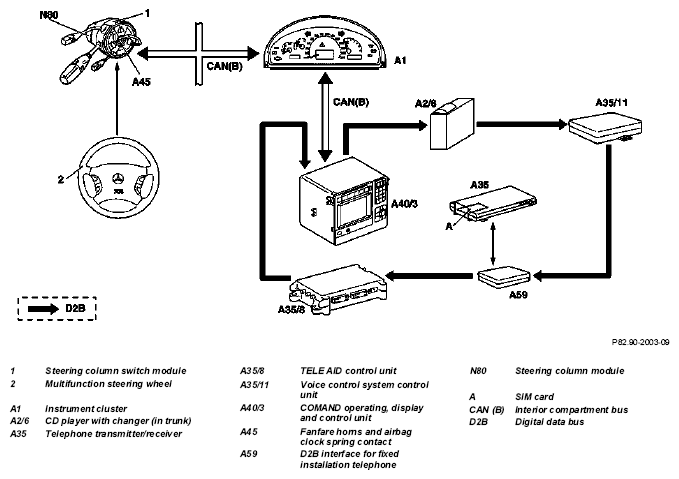

Shown in model 220 with COMAND
In model 215, the switch for voice operation is not located on the multifunction steering wheel, but on the steering column switch module.

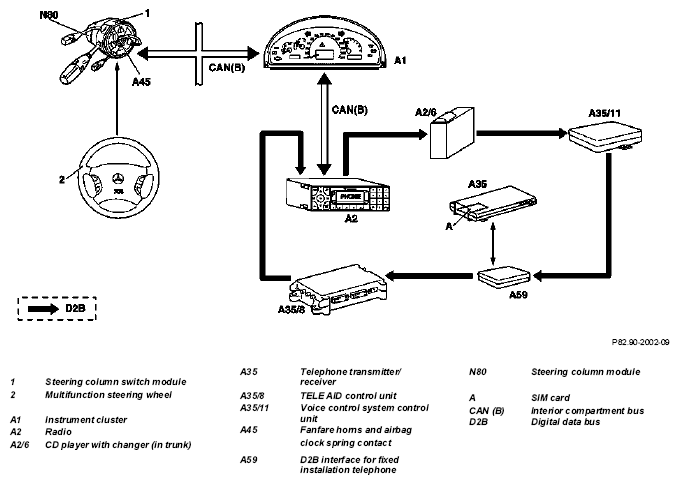

Fig 2: Multifunction Steering Wheel Component Networking Diagram - Shown In Model 220 With Radio (Audio 30)
Shown in model 220 with radio (Audio 30)
In model 215, the switch for voice operation is not located on the multifunction operation is not located on the multifunction steering wheel, but on the steering column switch module.
