Remove/install front seat control module - AR91.29-P-1550M
MODEL 220.0 /1 up to 30.6.01

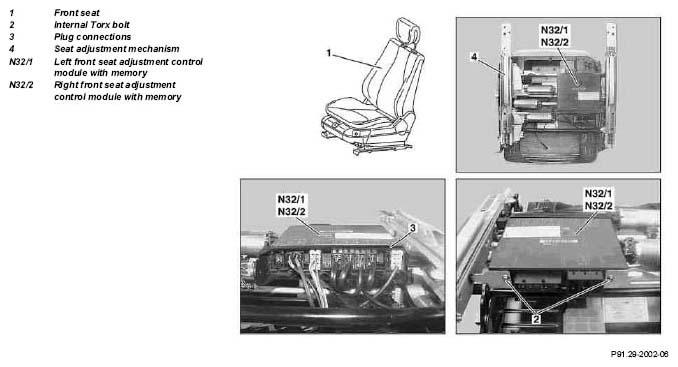

Fig 1: Identifying Front Seat Control Module Remove/Install Components - Model 220.0 /1 Up To 30.6.01
| Remove/install | |||
| 1 | Remove front seat (1) | AR91.10-P-1000M | |
| 2 | Disconnect all electrical connectors (3) | ||
| 3 | Unscrew internal Torx bolts (2) | Figure torx set | |
| 4 | Remove left front seat adjustment control module with memory (N32/1), right (N32/2) from bracket in seat adjuster (4) | ||
| 5 | Install in the reverse order | ||
| 6 | Perform function check on electric seat adjustment |
