Front seat ventilation motors, location/task/design/function - GF91.30-P-3100SS: Notes
MODELS 215, 220 as of 1.9.02 with CODE (401a) Front luxury seat, incl. heated seat and seat ventilation

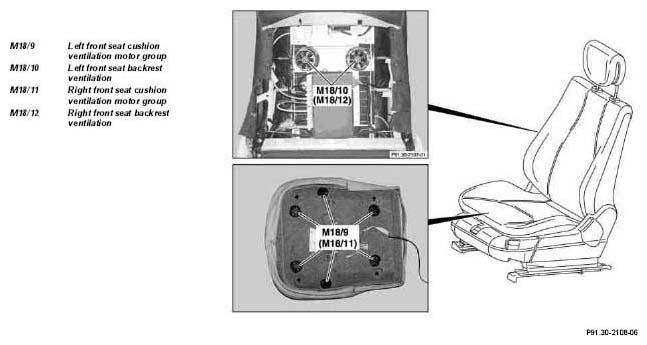

Location of the component shown on MODEL 220
| Front seat ventilation motors, location | The motors for the seat backrest ventilation are installed in the respective backrest lining. The motor group now comprises two fans with enlarged diameter. No change is planned for the motors of the seat cushion ventilation. | ||
| Front seat ventilation motors, task | Active ventilation of seat cushion and backrest. | ||
| Front seat ventilation motors, design | The seat cushion ventilation has six fan motors (MODEL 215: 4 motors). The seat backrest ventilation now comprises two fans with enlarged diameter. Each motor drives a small ventilator that produces a flow of air. |
||
| Front seat ventilation motors, function | The motors in each motor group are connected in parallel. They are actuated by the relevant seat control module. The actuation signal at the control module output is boosted by a regulator. |
