ME-SFI start quantity control function - GF07.61-P-3010AM
ENGINE 113.990 in MODEL 211, 219
ENGINE 113.991 in MODEL 215, 220
ENGINE 113.992 in MODEL 230
ENGINE 113.993 in MODEL 463
ENGINE 113.995 in MODEL 230
To facilitate starting a cold engine, additional fuel must be injected during the starting procedure (depending on the coolant temperature). The increased quantity of fuel injected is achieved by extending the injection time.

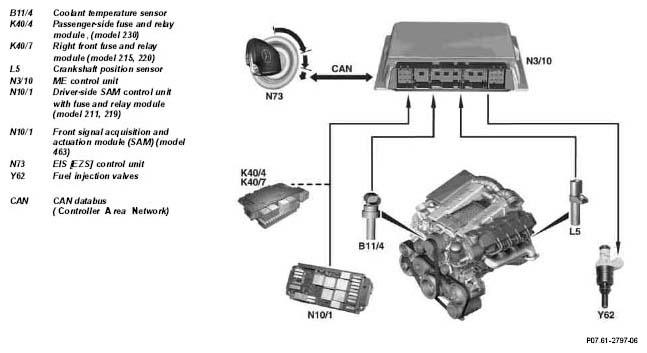

The start quantity control is dependent on:
- Start recognition
- Coolant temperature
- Engine speed
- Engine off time
- Altitude (atmospheric pressure)
The start quantity control is enabled after start recognition. It remains activated until a temperature-related engine speed is exceeded.
The higher the coolant temperature, the lower is the start quantity enable by the ME-SFI control unit.
| Fuel injection valve, location/task/design/function | GF07.03-P-5004KE | ||
| Crankshaft position sensor, location/task/design/function | GF07.04-P-4116AM | ||
| Coolant temperature sensor, location/task/design/function | GF07.04-P-5026AM | ||
| ME-SFI control unit, location/task/design/function | GF07.61-P-5000AM | ||
| Throttle valve actuator, location/task/design/function | GF30.22-P-4101AM |
