Pressure sensor downstream throttle valve actuator location/task/function - GF07.04-P-5049M: Notes
ENGINE 275.950 in MODEL 215, 220
ENGINE 275.951 in MODEL 230
ENGINE 275.953 in MODEL 216, 221
ENGINE 275.954 in MODEL 230
ENGINE 275.980 in MODEL 215, 220
ENGINE 275.981 in MODEL 230
ENGINE 275.982 in MODEL 216, 221
ENGINE 285.950 in MODEL 240
ENGINE 285.980 in MODEL 240

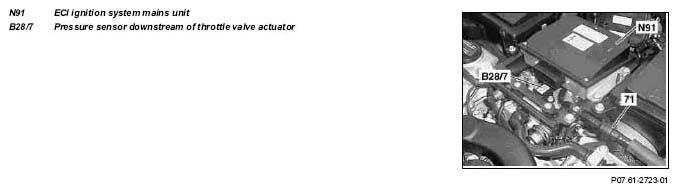

| Pressure sensor downstream of throttle valve actuator location | Mounted on the intake manifold upstream of the ECI ignition system power pack | ||
| Pressure sensor downstream of throttle valve actuator task | Detects the engine loading which depends on the throttle valve position and the charge pressure. | ||
| Pressure sensor downstream of throttle valve actuator function | GF07.04-P-5049-01M |
