Ignition module position - GF15.15-P-3101-01L

Engine 137.970

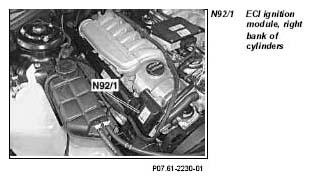

Fig 1: Identifying ECI Ignition Module, Right Bank Of Cylinders

G04840201

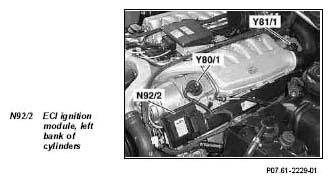

Fig 2: Identifying ECI Ignition Module, Left Bank Of Cylinders

G04840202
