Coolant temperature sensor, location/task/design/function - GF07.04-P-5026M: Notes
ENGINE 275.950 in MODEL 215, 220
ENGINE 275.951 in MODEL 230
ENGINE 275.953 in MODEL 216, 221
ENGINE 275.954 in MODEL 230
ENGINE 275.980 in MODEL 215, 220
ENGINE 275.981 in MODEL 230
ENGINE 275.982 in MODEL 216, 221
ENGINE 285.950 in MODEL 240
ENGINE 285.980 in MODEL 240
| Coolant temperature sensor position | GF07.04-P-5026-02M | ||
| Coolant temperature sensor task | Detects the coolant temperature and sends a signal to the engine control unit | ||

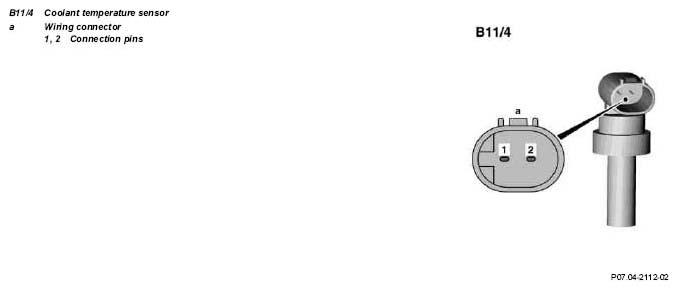

| Coolant temperature sensor, design | Plastic housing with integrated NTC resistor and a 2-pin, slanted plug connection. Inserted into a hole and sealed with an O-ring. The attachment is performed via a bracket. | ||
| Coolant temperature sensor function | GF07.04-P-5026-04M |
