Coolant temperature sensor, location/task/design/function - GF07.04-P-5026AM: Notes
ENGINE 113.990 /991 /992 /993 /995
| Coolant temperature sensor position | GF07.04-P-5026-02AM | ||
| Coolant temperature sensor task | The coolant temperature sensor detects the coolant temperature and transmits a corresponding voltage signal to the motor electronics control unit (N3/10). | ||

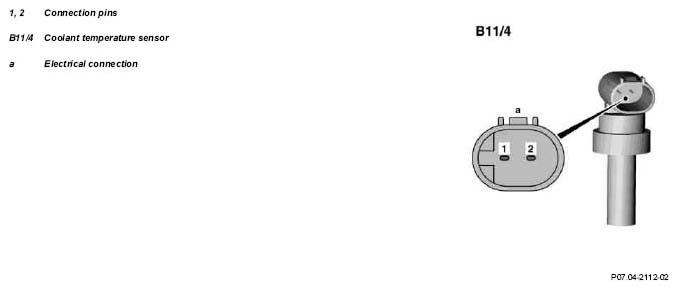

| Coolant temperature sensor, design | Metal housing with an integrated NTC resistance and a 2-pin plug connector. NTC = N egative T emperature C oefficient |
||
| Coolant temperature sensor function | GF07.04-P-5026-04AM |
