Fuel pressure sensor, location/task/design/function - GF47.20-P-4007M: Notes

ENGINE 275.950 in MODEL 215, 220

ENGINE 275.951 in MODEL 230

ENGINE 275.953 in MODEL 216, 221

ENGINE 275.954 in MODEL 230

ENGINE 275.980 in MODEL 215, 220

ENGINE 275.981 in MODEL 230

ENGINE 275.982 in MODEL 216, 221

ENGINE 285.950 in MODEL 240

ENGINE 285.980 in MODEL 240

Shown model 240

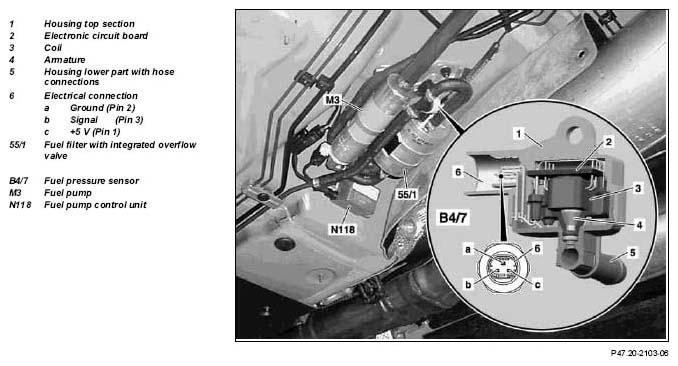

Fig 1: Identifying Fuel Pressure Sensor Components Location (Model 240)

Fuel pressure sensor position	Model 215, 220 with engine 275.950	GF47.20-P-4007-01K
	Model 215, 220 with engine 275.980	GF47.20-P-4007-01KA
	Model 216, 221	GF47.20-P-4007-01MS
	Model 230	GF47.20-P-4007-01R
	Model 240	GF47.20-P-4007-01MM
Fuel pressure sensor task	Detect fuel system pressure and conduct a corresponding voltage signal to the fuel pump control unit (N118).
Fuel pressure sensor design	Inductive measuring cell out of coil, movable anchor and electronics
Fuel pressure sensor function	With increasing fuel pressure the anchor moves further into the coil. An electronics detects the inductivity of the measuring cell and gives a signal (approx. 0.5 V at 0 bar; approx. 4.5 V at 9 bar).
