Voice control system (VCS), arrangement of components - GF82.70-P-0002-01E

Shown on model 202.0 (for 202.0, 208.3)

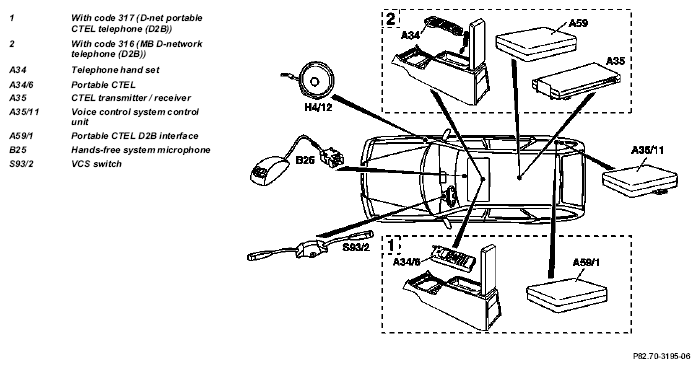

Fig 1: Identifying Voice Control System (VCS), Arrangement Of Components (Model 202.0)

Illustrated on model 202.1

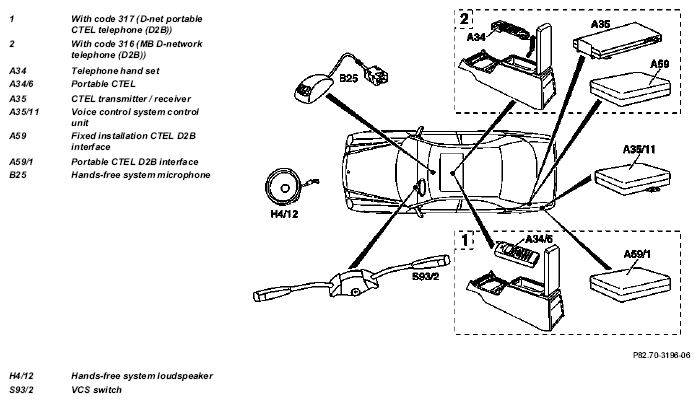

Fig 2: Identifying Voice Control System (VCS), Arrangement Of Components (Model 202.1)

Shown on model 210.0 as of 1.6.98

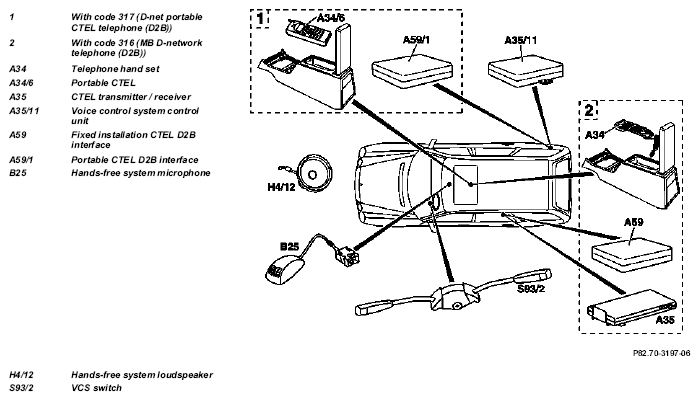

Fig 3: Identifying Voice Control System (VCS), Arrangement Of Components (Model 210.0 As Of 1.6.98)

Shown on model 210.2 as of 1.6.98

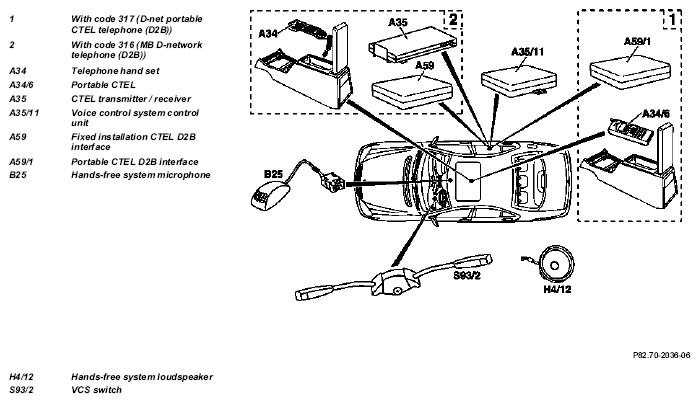

Fig 4: Identifying Voice Control System (VCS), Arrangement Of Components (Model 210.2 As Of 1.6.98)

Illustrated on model 215

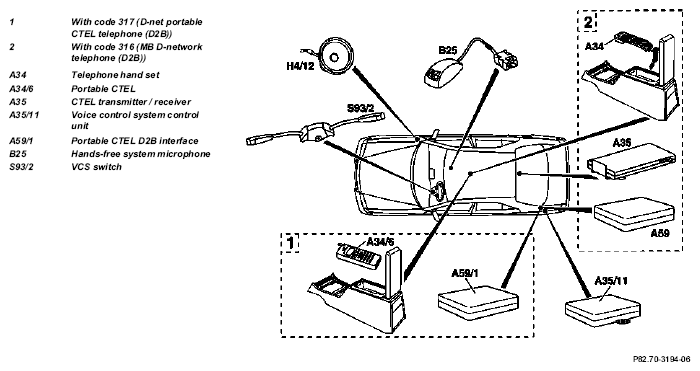

Fig 5: Identifying Voice Control System (VCS), Arrangement Of Components (Model 215)

Shown on MODEL 220

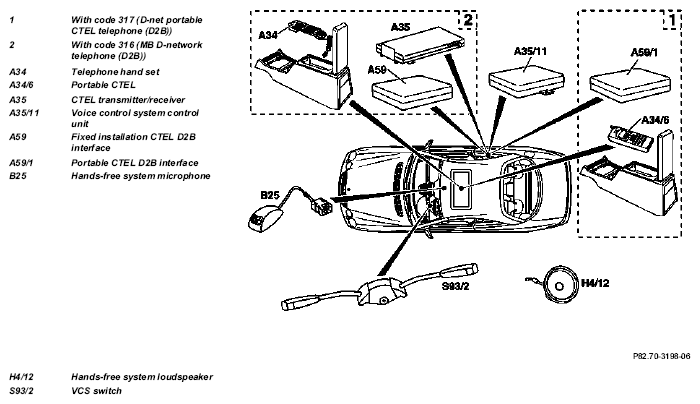

Fig 6: Identifying Voice Control System (VCS), Arrangement Of Components (Model 220)
