Sound amplifier, location/task/design/function - GF82.62-P-3100A: Notes

MODEL 215, 220 up to 31.8.03 with CODE (810) Sound system with CODE (352a) COMAND operating and display system

Location shown on model 215 as of 1.9.02

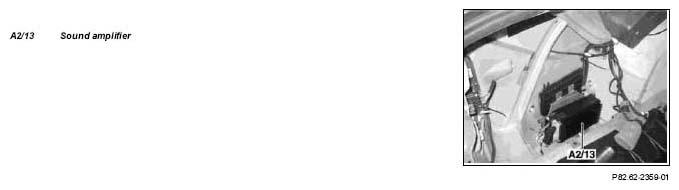

Fig 1: Identifying Sound Amplifier Location - Shown On Model 215 As Of 1.9.02
G04840998
  Sound amplifier, location With code 498 GF82.62-P-3100-01B
    Except code 498 GF82.62-P-3100-01A
  Sound amplifier, purpose Processing (sound adjustments) and amplification of all audio signals (radio, cassette, CD, voice output during navigation etc.).
  Sound amplifier, design
  • Interface to digital data bus (D2B)
  • Connection for sound amplifier microphone (B25/6) for Vehicle Noise Compensation
  • Digital filter technology
  • 6 outputs for left front, right front, left rear, right rear, Center speaker and Woofer

  Sound amplifier, function   GF82.62-P-3100-04A
