Special protection multifunction control module, location/task/design/function - GF82.25-P-4102S: Notes
MODEL 220 with CODE (930) Taxi emergency call with CODE (934) Taxi emergency alarm unit

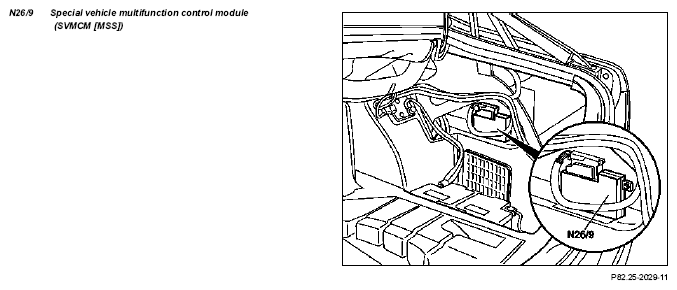

The special vehicle multifunction control module (SVMCM [MSS]) (N26/9) is located on the right side wall in the trunk, under the paneling.
| Special vehicle multifunction control module (SVMCM [MSS]), task | GF82.25-P-4102-02S | ||
| Special vehicle multifunction control module (SVMCM [MSS]), design | Integrated, CAN-capable control module with 33-pin plug. | ||
| Special vehicle multifunction control module (SVMCM [MSS]), function | Only one version of the control module is available. Adaptation to the special systems which are installed is carried out via the STAR diagnostic tool. Depending on programming, the control module's inputs and outputs are connected and initialized in various manners. |
