Lubrication pressure regulating valve, function - GF27.60-P-5122-01G
Transmission 722.6
Operation

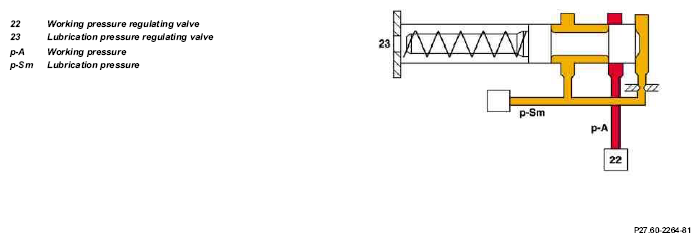

At the working pressure regulating valve (22) surplus oil is diverted to the lubrication pressure regulating valve (23), from where the lubrication pressure (p-Sm) is used in regulated amounts to supply the transmission lubrication system including the torque converter.
