Remove/install seat adjustment control module - AR91.29-P-0008GH
MODEL 163.113/128, 163.136/154 as of 1.9.99, 163.157, 163.172 as of 1.9.99, 163.175 with CODE (241) Memory for electrically adjustable left front seat with CODE (242a) Memory for electrically adjustable right front seat
MODEL 163.174
| Remove/install | |||
|---|---|---|---|
| 1 | Move front seat forwards and adjust rear front seat cushion upwards | ||

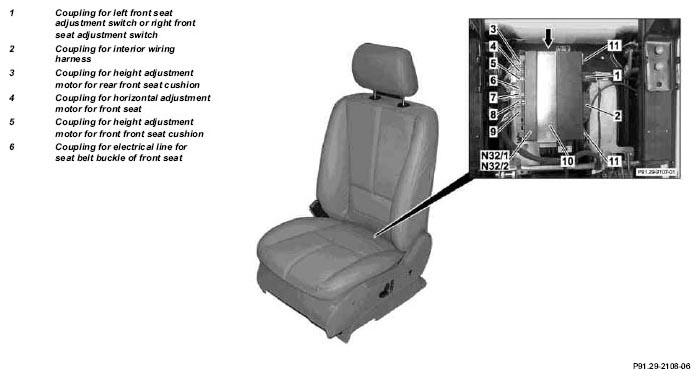

| 2 | Disconnect connector from coupling for left front seat adjustment switch or right front seat adjustment switch (1) and from the coupling for interior wiring harness (2) on the left front seat adjustment control module with memory (N32/1) or right front seat adjustment control module with memory (N32/2) | ||

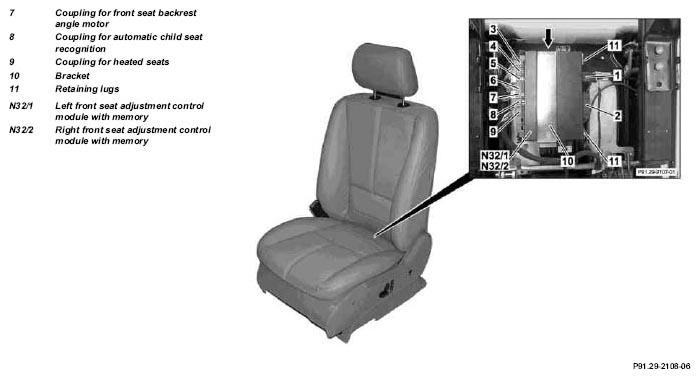

| 3 | Unscrew bolt (arrow) from bracket (10), unhook front bracket and remove | ||
| 4 | Remove left front seat adjustment control module with memory (N32/1) or right front seat adjustment control module with memory (N32/2) from bracket on front seat frame | ||
| 5 | Disconnect the remaining connectors on the left front seat adjustment control module with memory (N32/1) or right front seat adjustment control module with memory (N32/2) | ||
| 6 | Remove left front seat adjustment control module with memory (N32/1) or right front seat adjustment control module with memory (N32/2) | ||
| 7 | Install in the reverse order | ||
| 8 | Perform function check |
