Blower Switch

WARNING: This page is about a different car, the 2001 Mercedes-Benz SL500 and 2000 Mercedes-Benz SL500. However, it is still accessible from the selected car via links, so may be relevant.

Blower switch push buttons provide varying speeds. If automatic push button is pressed, system operating mode will use any blower speed determined necessary.

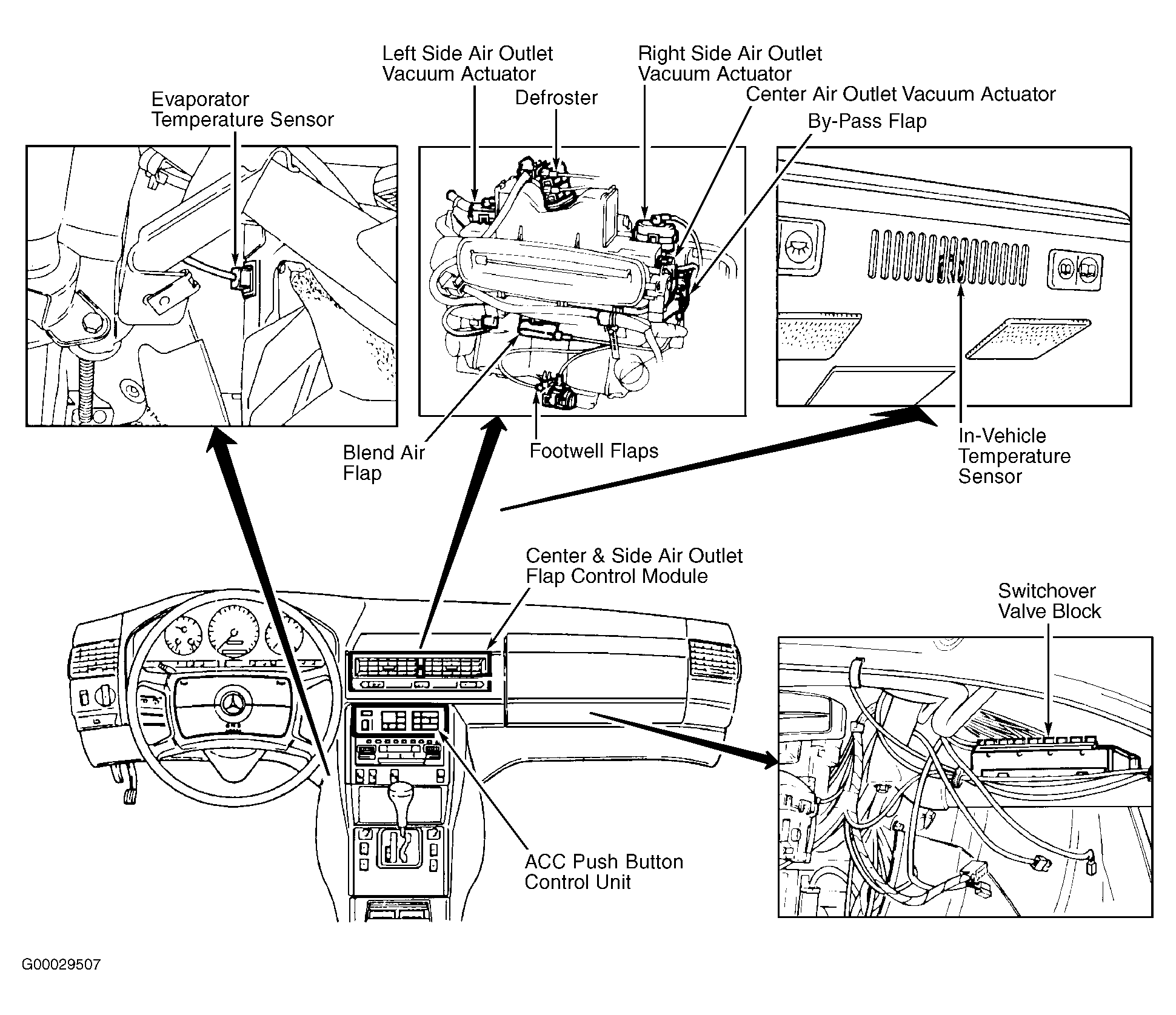

Fig 1: Identifying A/C-Heater System Components (1 Of 5)
G00029507Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

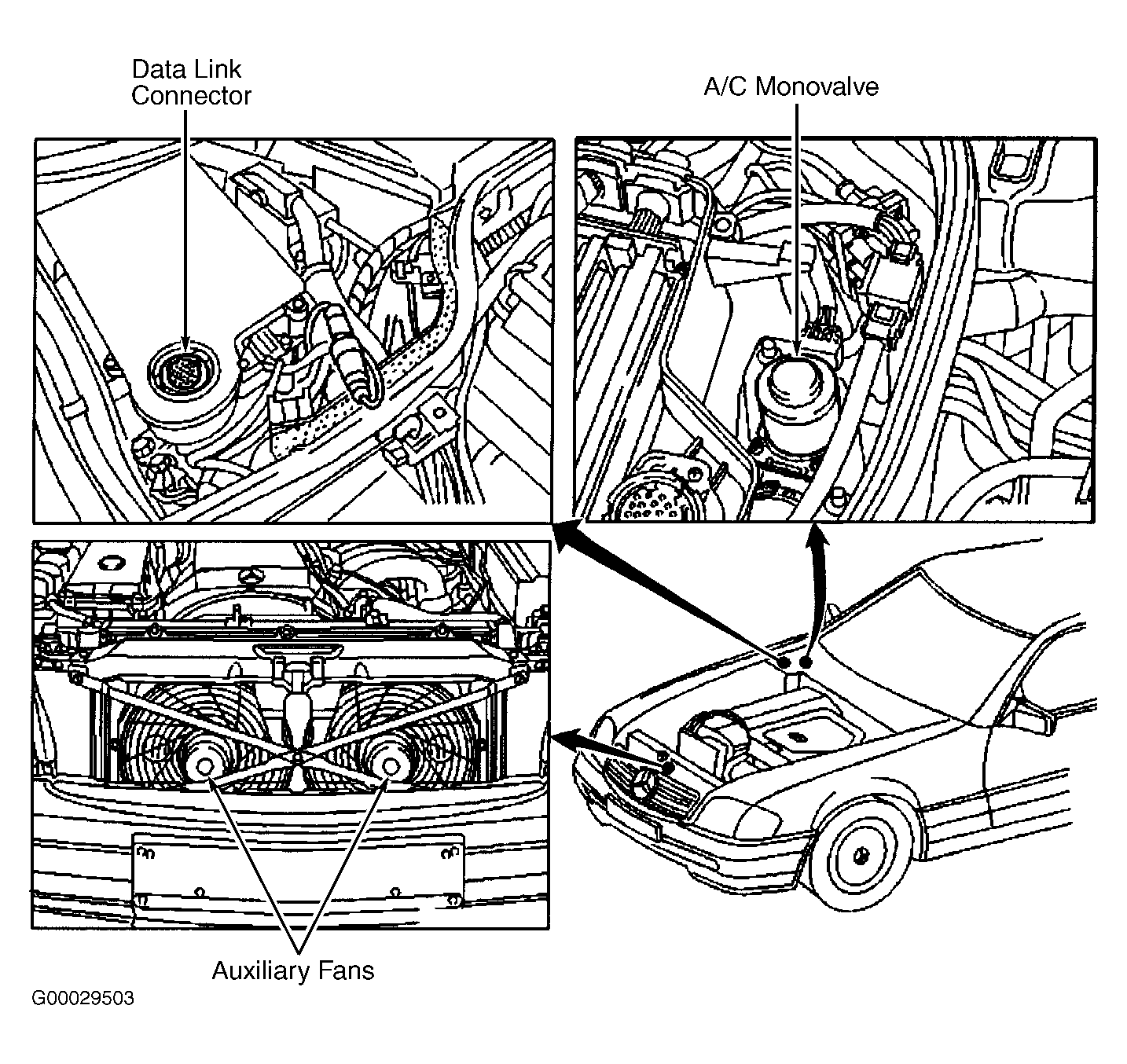

Fig 2: Identifying A/C-Heater System Components (2 Of 5)
G00029503Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

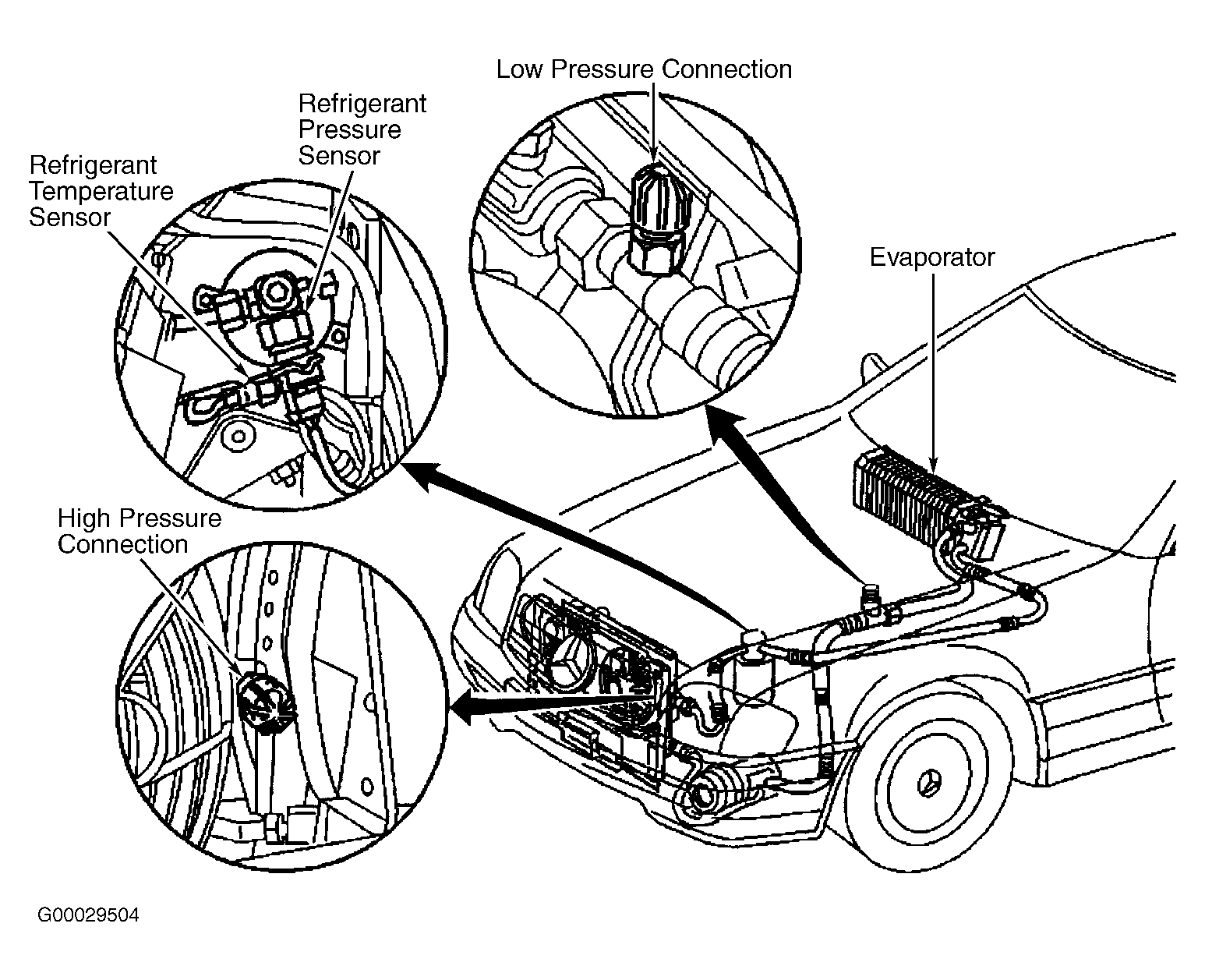

Fig 3: Identifying A/C-Heater System Components (3 Of 5)
G00029504Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

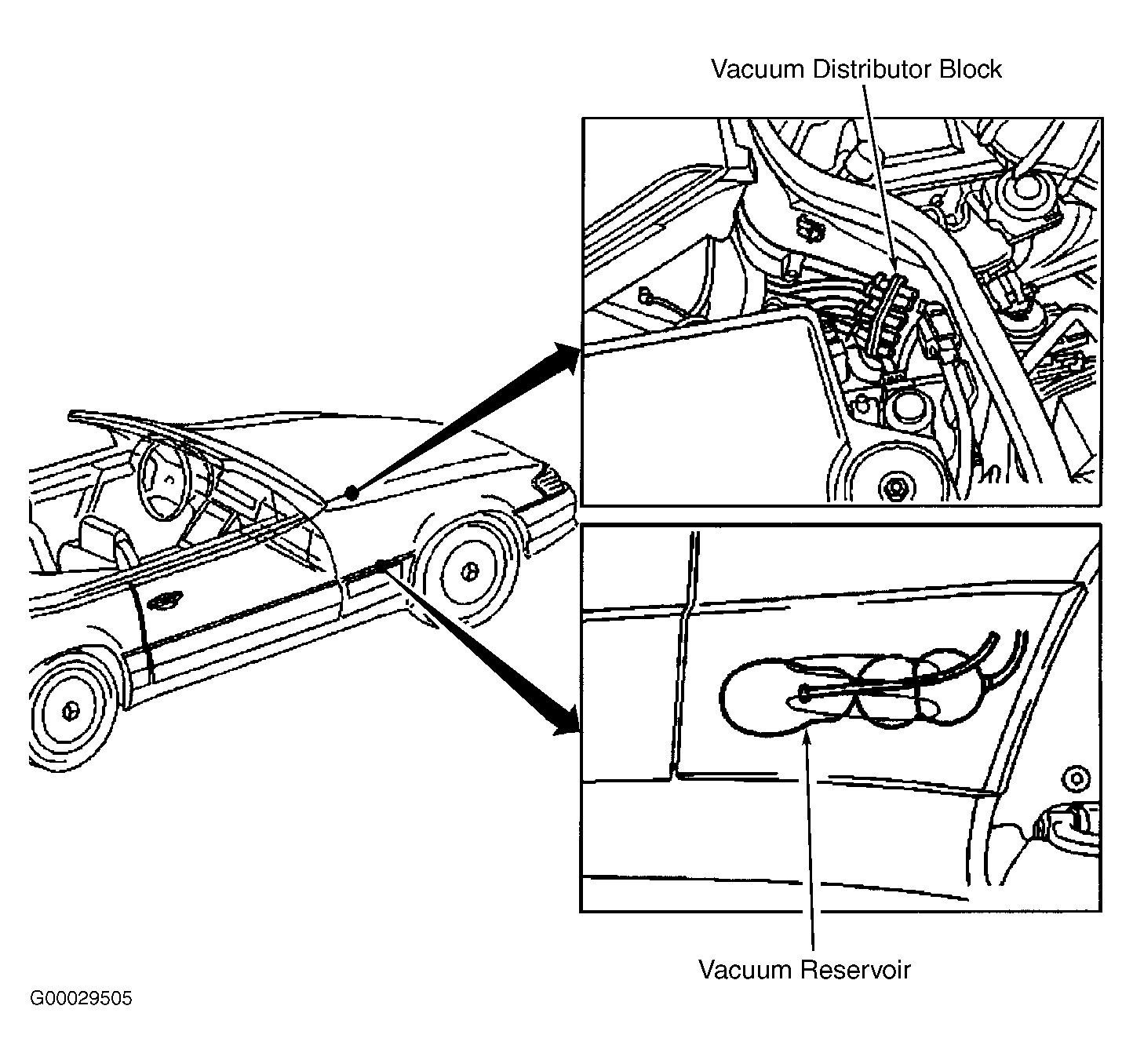

Fig 4: Identifying A/C-Heater System Components (4 Of 5)
G00029505Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

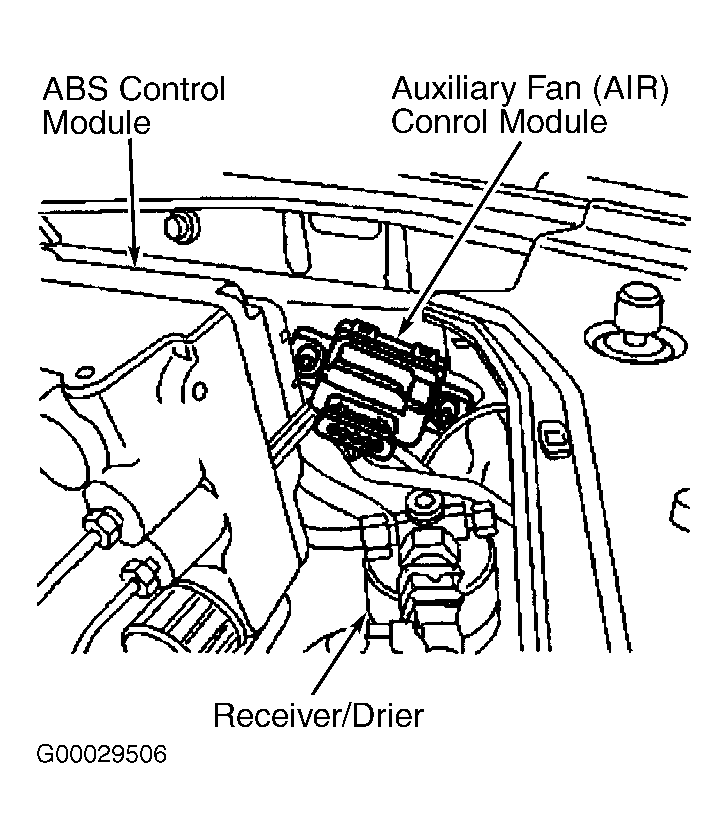

Fig 5: Identifying A/C-Heater System Components (5 Of 5)
G00029506Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
