Left Front Lamp Unit Connector End View (E1)

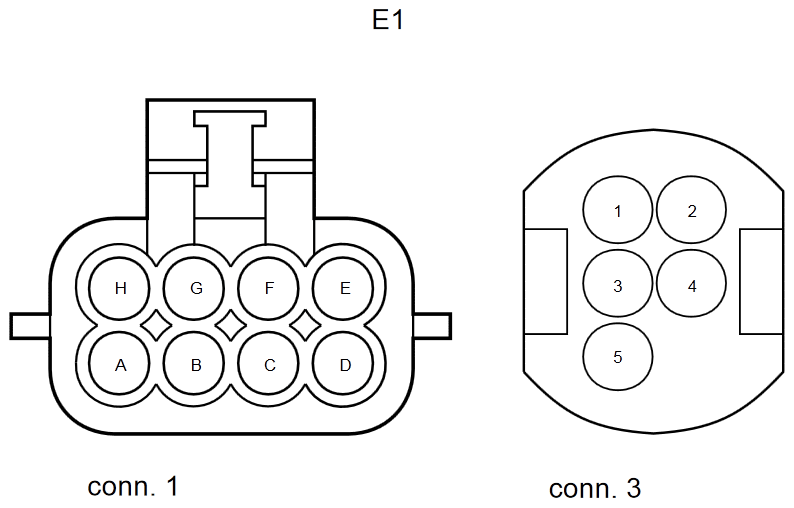

Fig 1: Left Front Lamp Unit Connector End View (E1)

G10973354

Courtesy of MERCEDES-BENZ USA
