Left Front Seat Adjustment Control Unit With Memory Connector End View (N32/1)

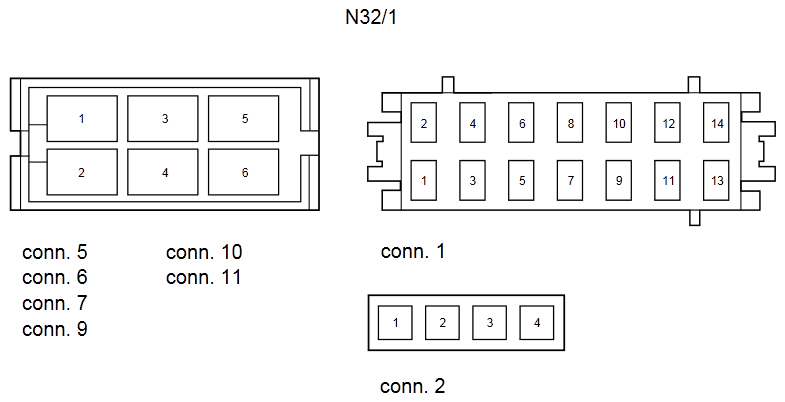

Fig 1: Left Front Seat Adjustment Control Unit With Memory Connector End View (N32/1)

G10972893

Courtesy of MERCEDES-BENZ USA
