Component Location

NOTE: Information for CL500 (215 chassis) and CL55 (215 chassis) system component locations is not available.

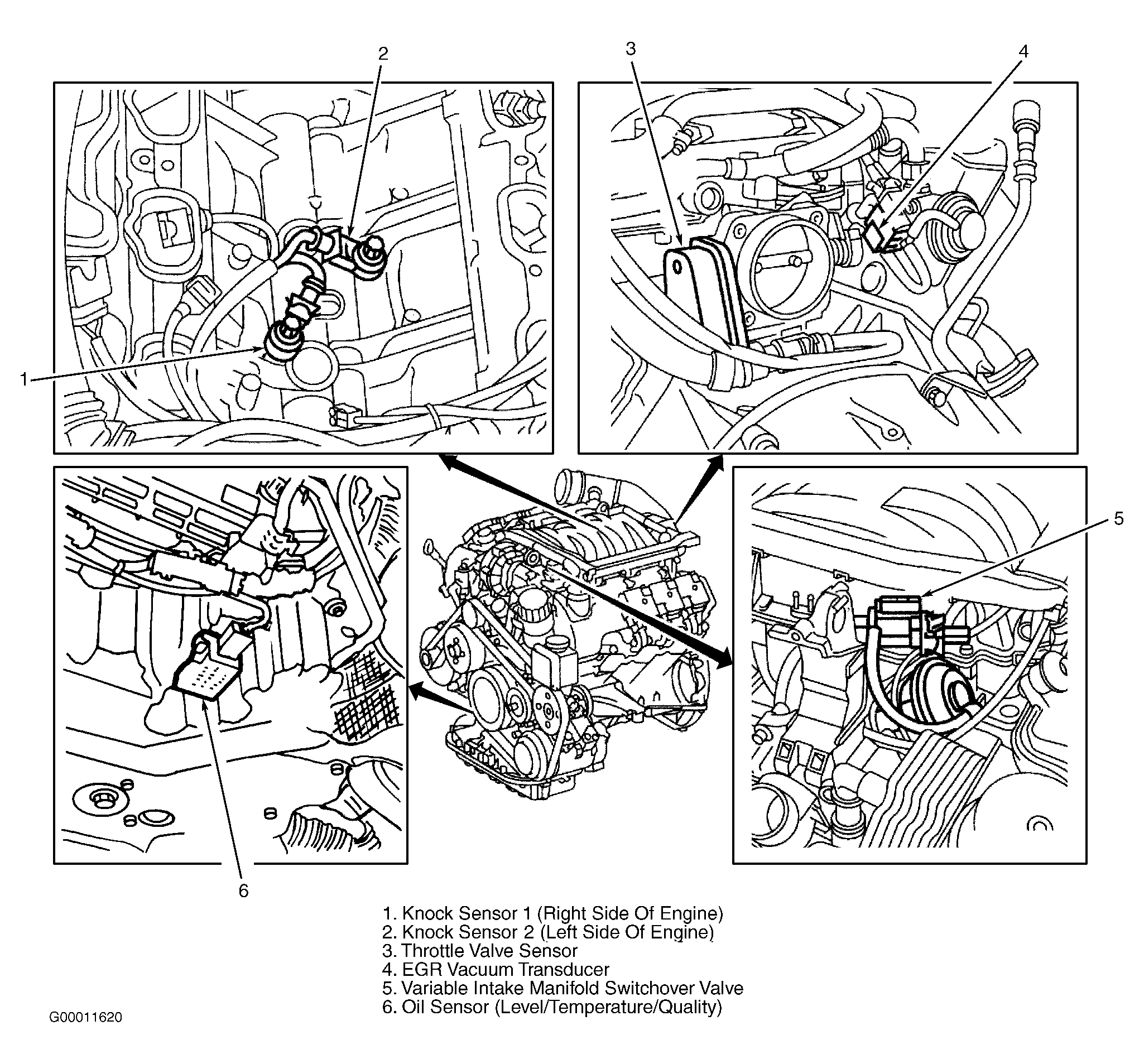

Fig 1: Locating Engine Components (C240 & C320)

G00011620

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

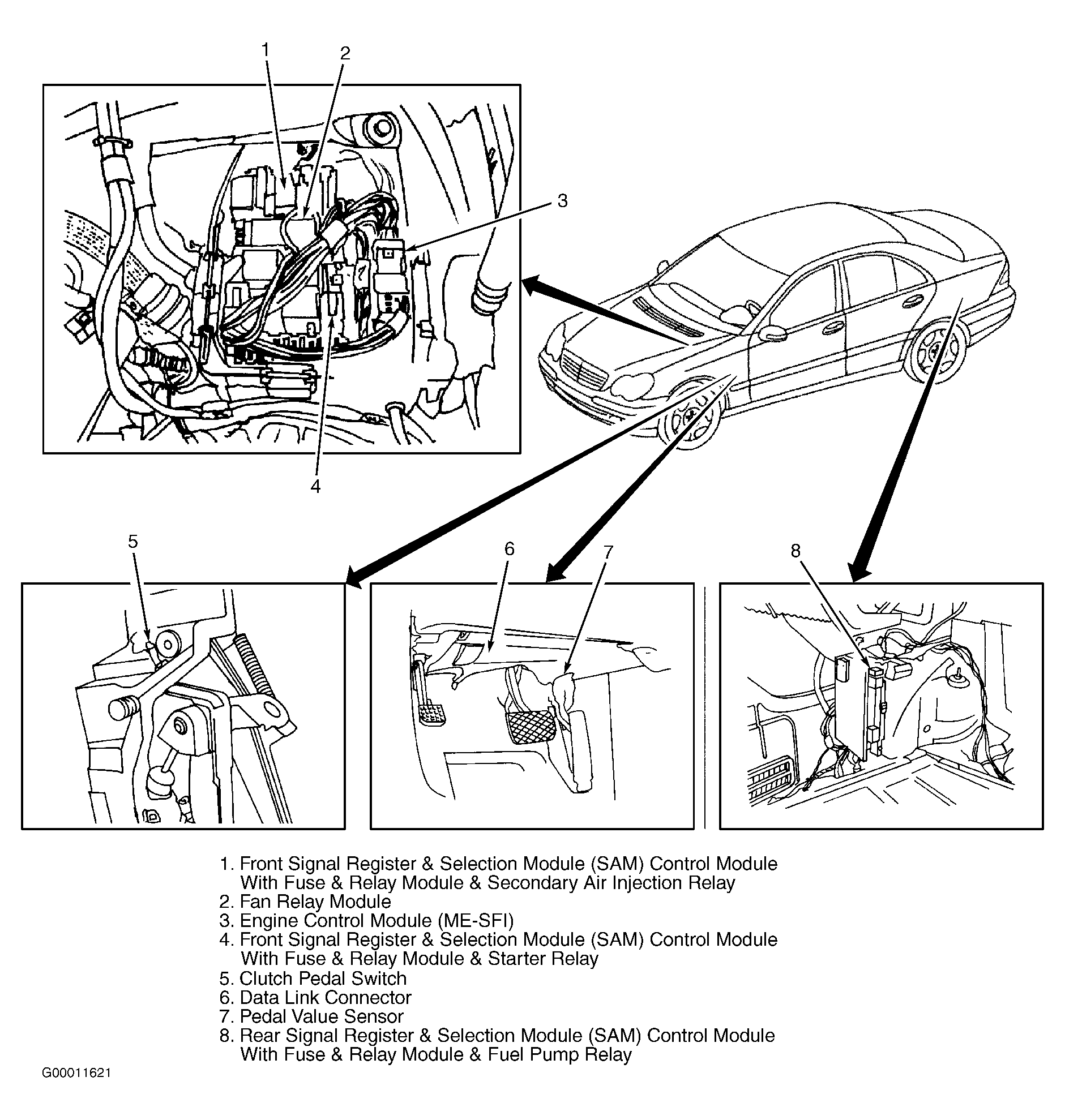

Fig 2: Locating System Components (C240 & C320 - 1 Of 4)

G00011621

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

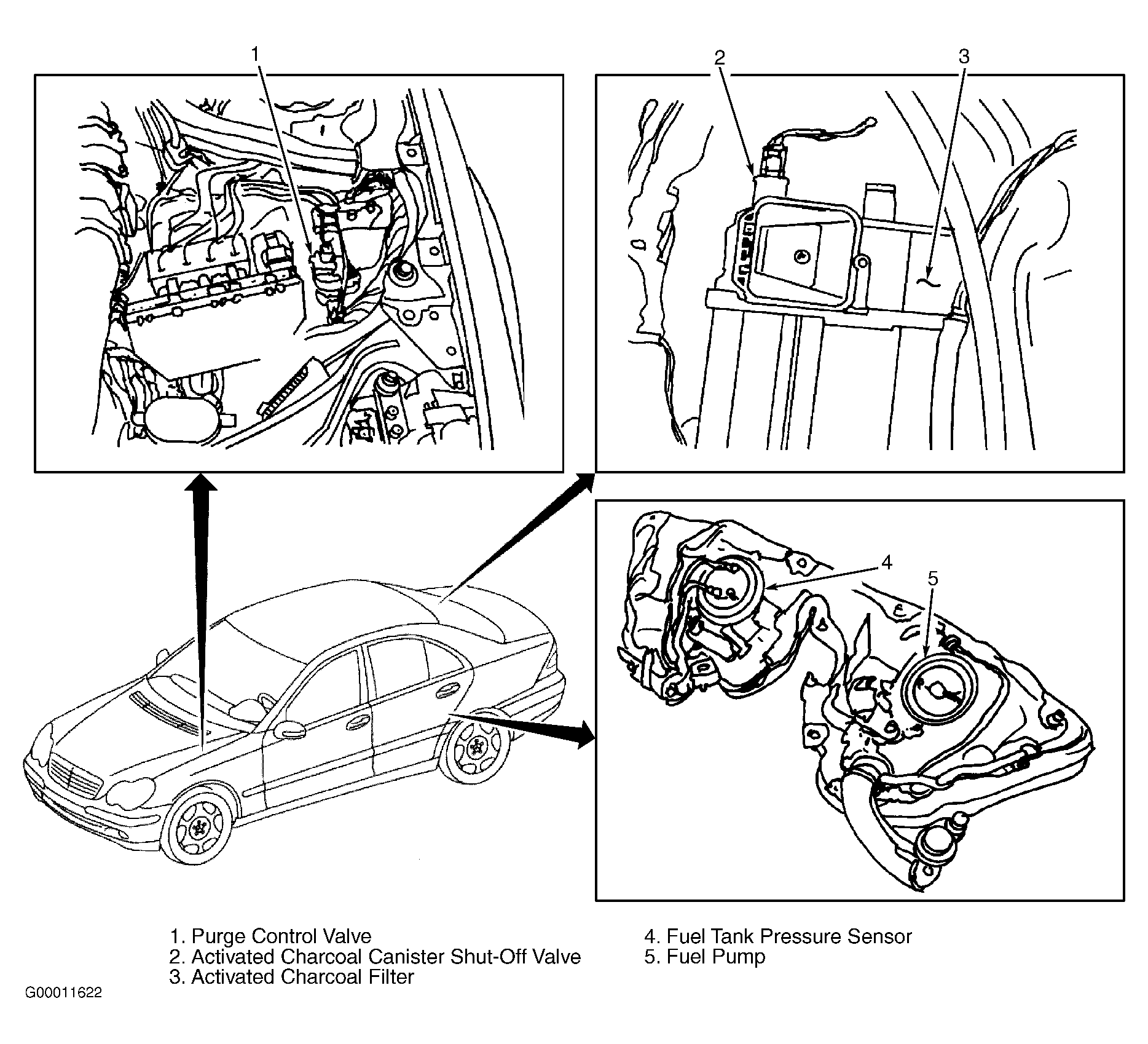

Fig 3: Locating System Components (C240 & C320 - 2 Of 4)

G00011622

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

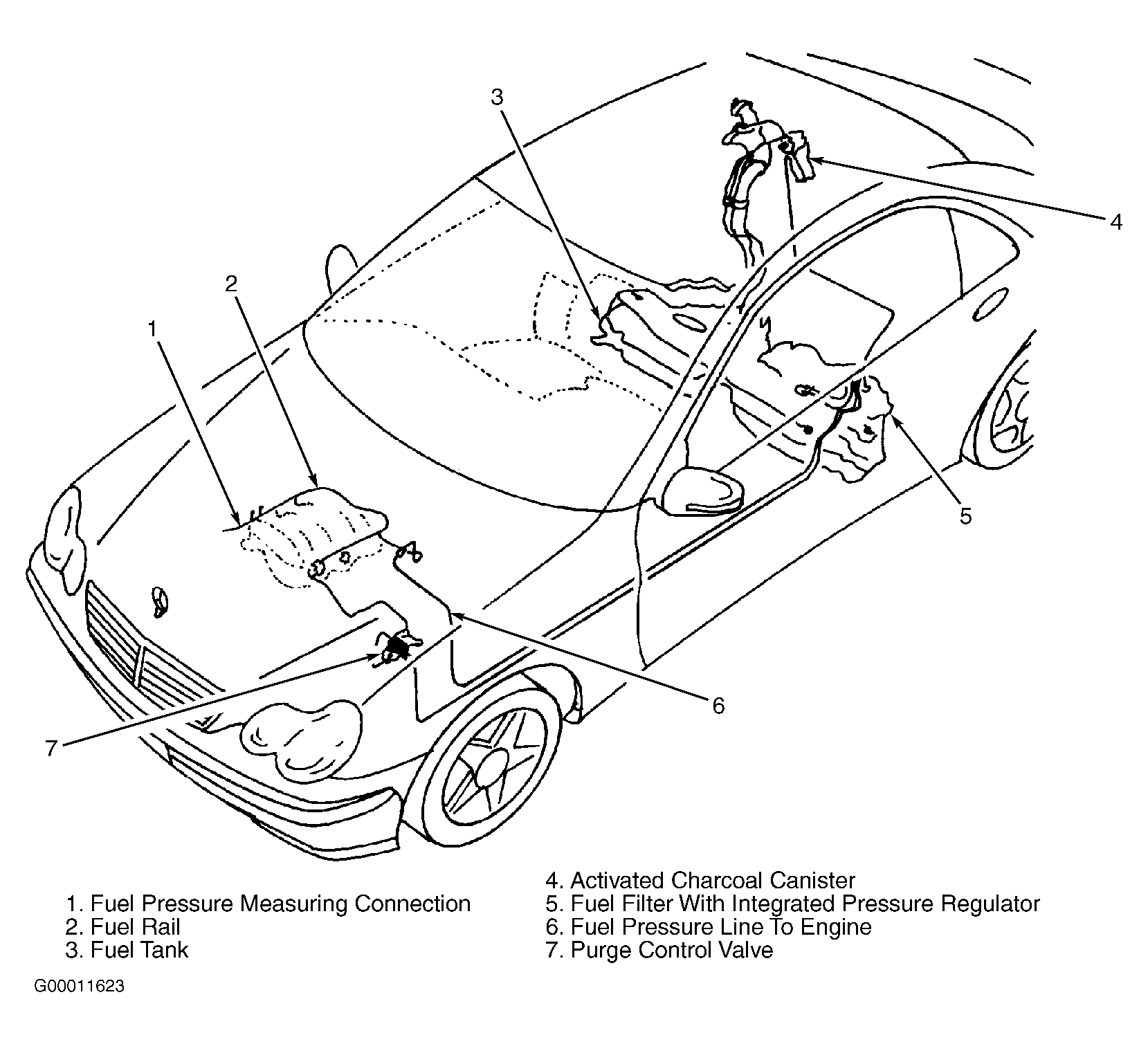

Fig 4: Locating System Components (C240 & C320 - 3 Of 4)

G00011623

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

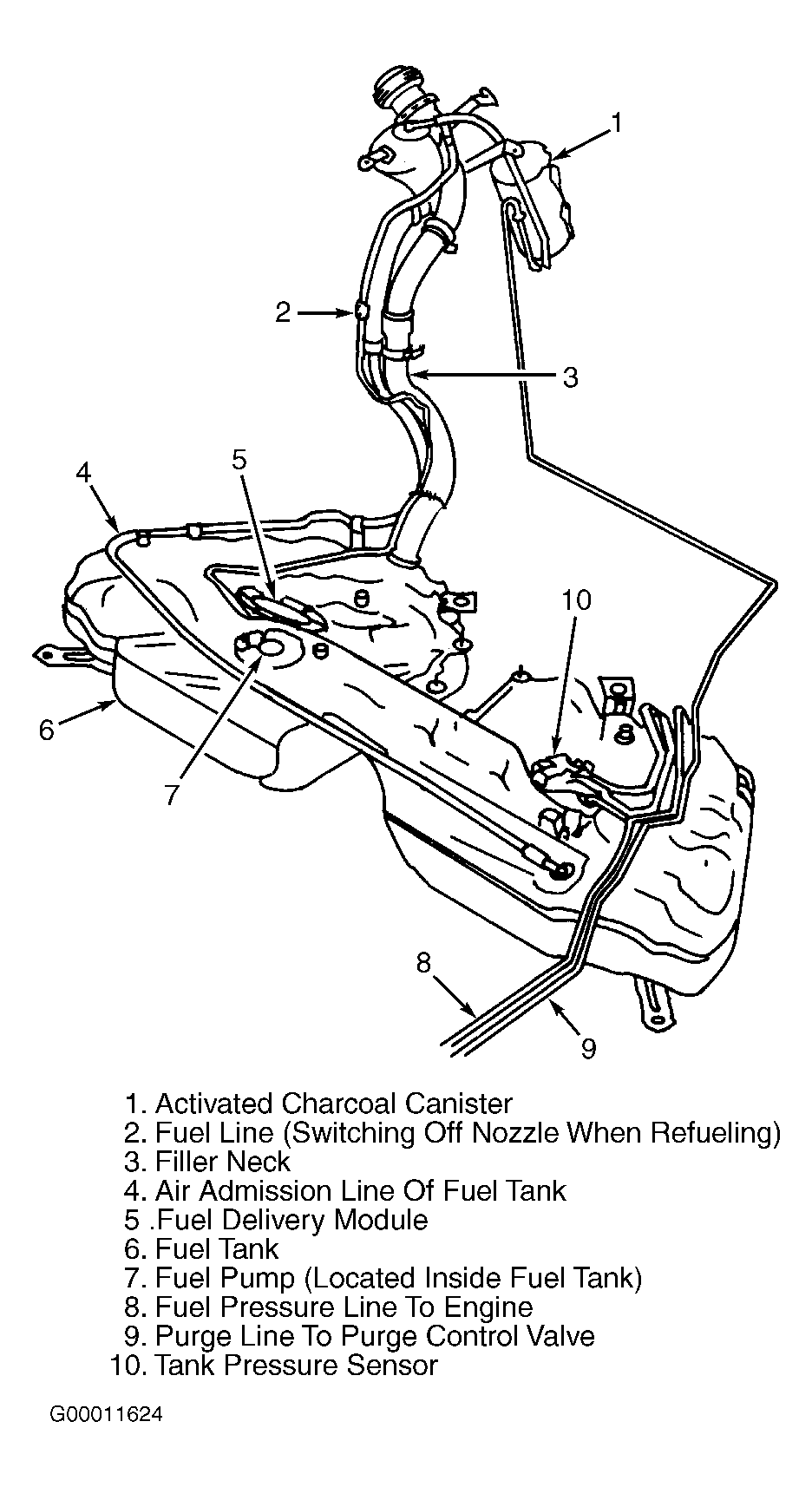

Fig 5: Locating System Components (C240 & C320 - 4 Of 4)

G00011624

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

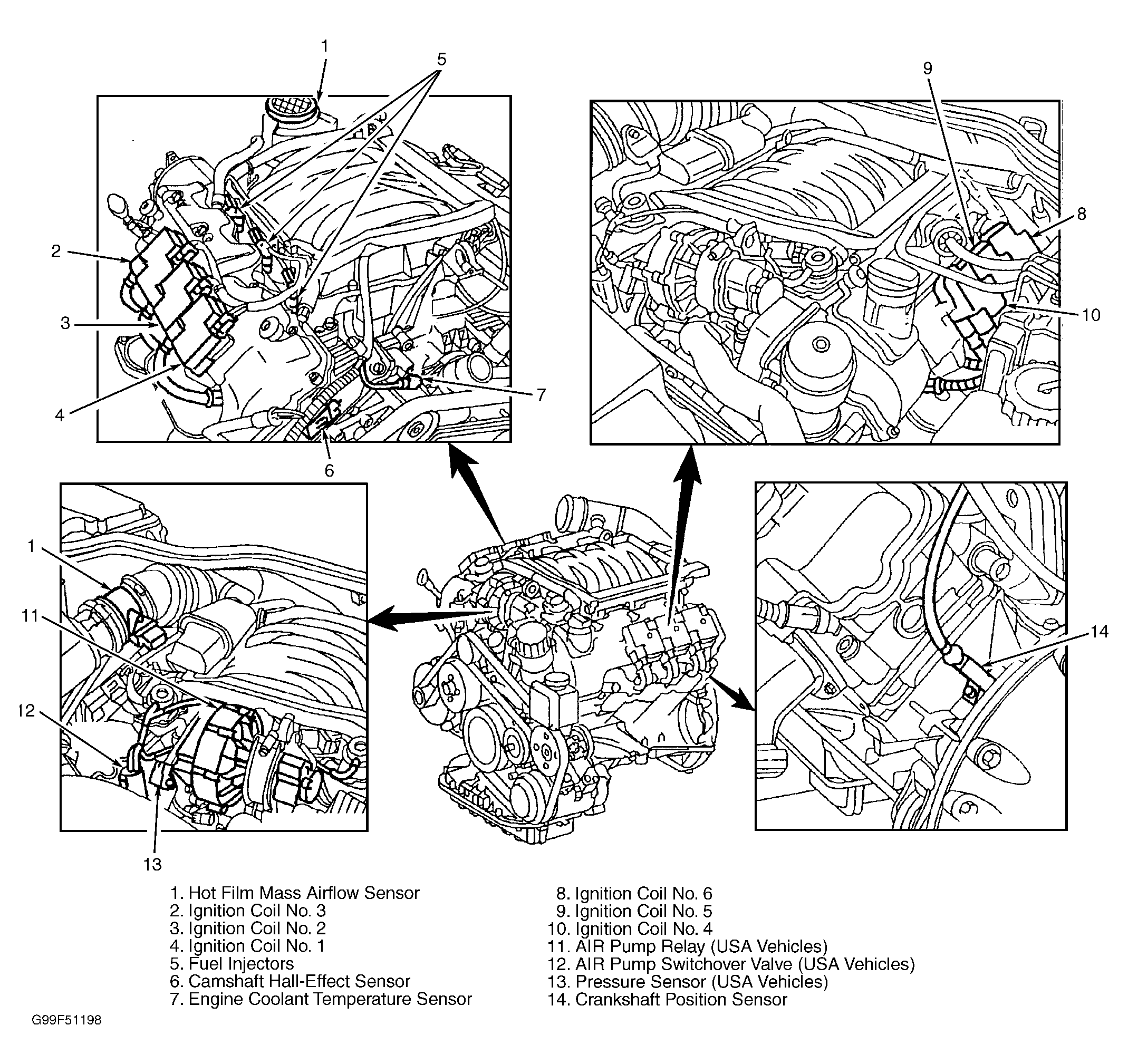

Fig 6: Locating Engine Components (CLK320, E320 & ML320 - 1 Of 2)

G99F51198

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

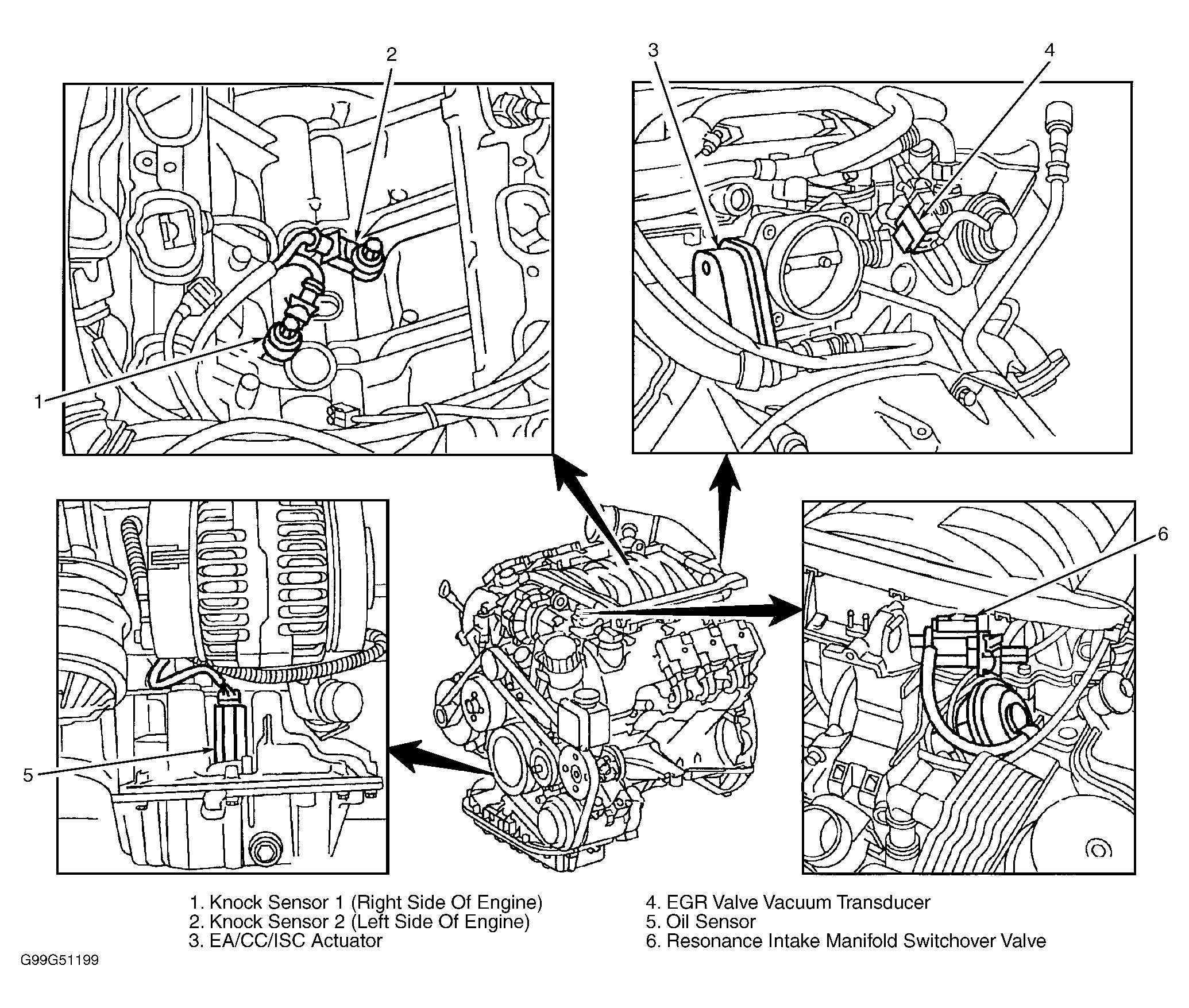

Fig 7: Locating Engine Components (CLK320, E320 & ML320 - 2 Of 2)

G99G51199

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

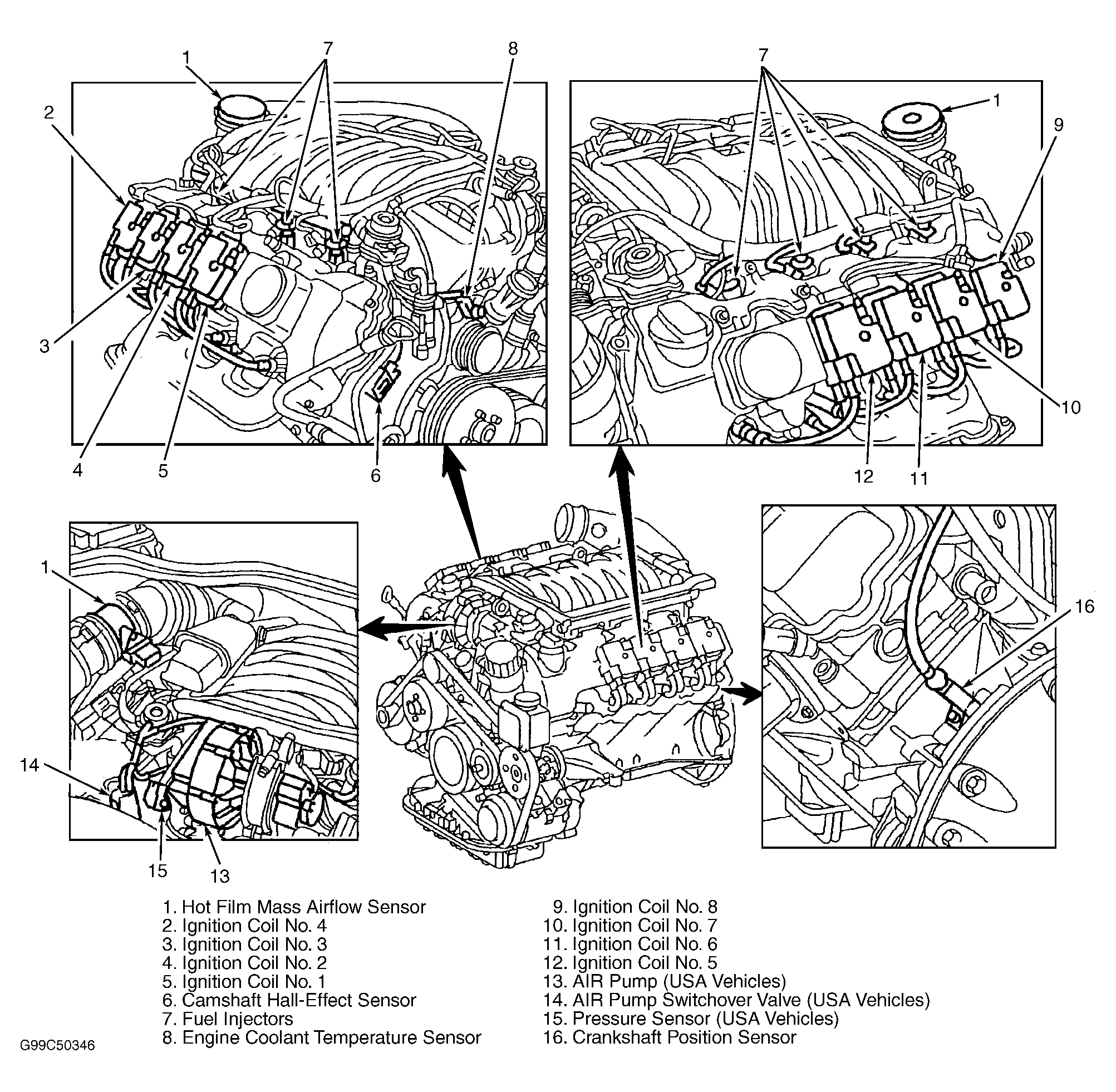

Fig 8: Locating Engine Components (CL500, CL55, CLK430, CLK55, E430, E55, ML430, ML55, S430, S500 & S55 - 1 Of 2)

G99C50346

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

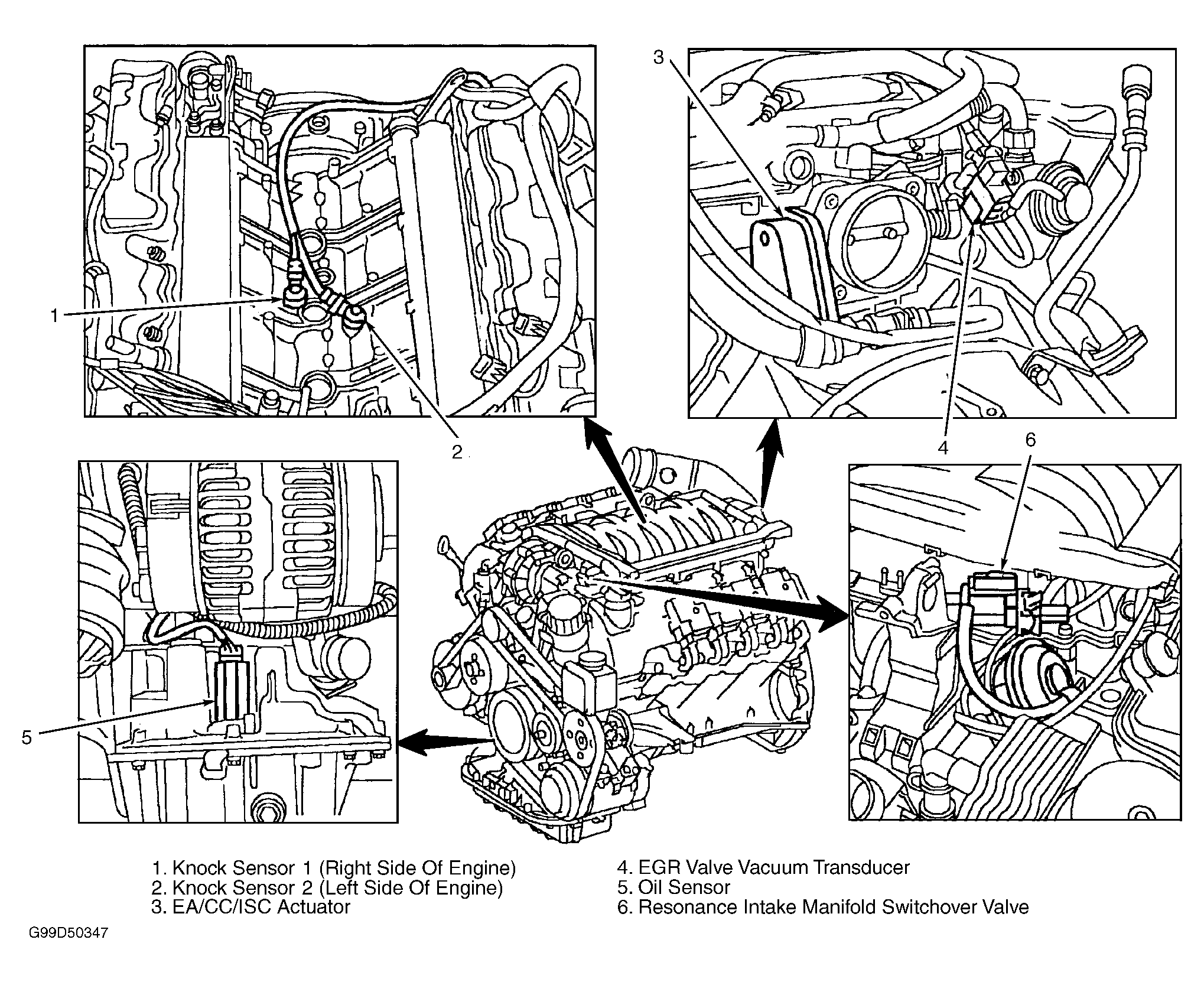

Fig 9: Locating Engine Components (CL500, CL55, CLK430, CLK55, E430, E55, ML430, ML55, S430, S500 & S55 - 2 Of 2)

G99D50347

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

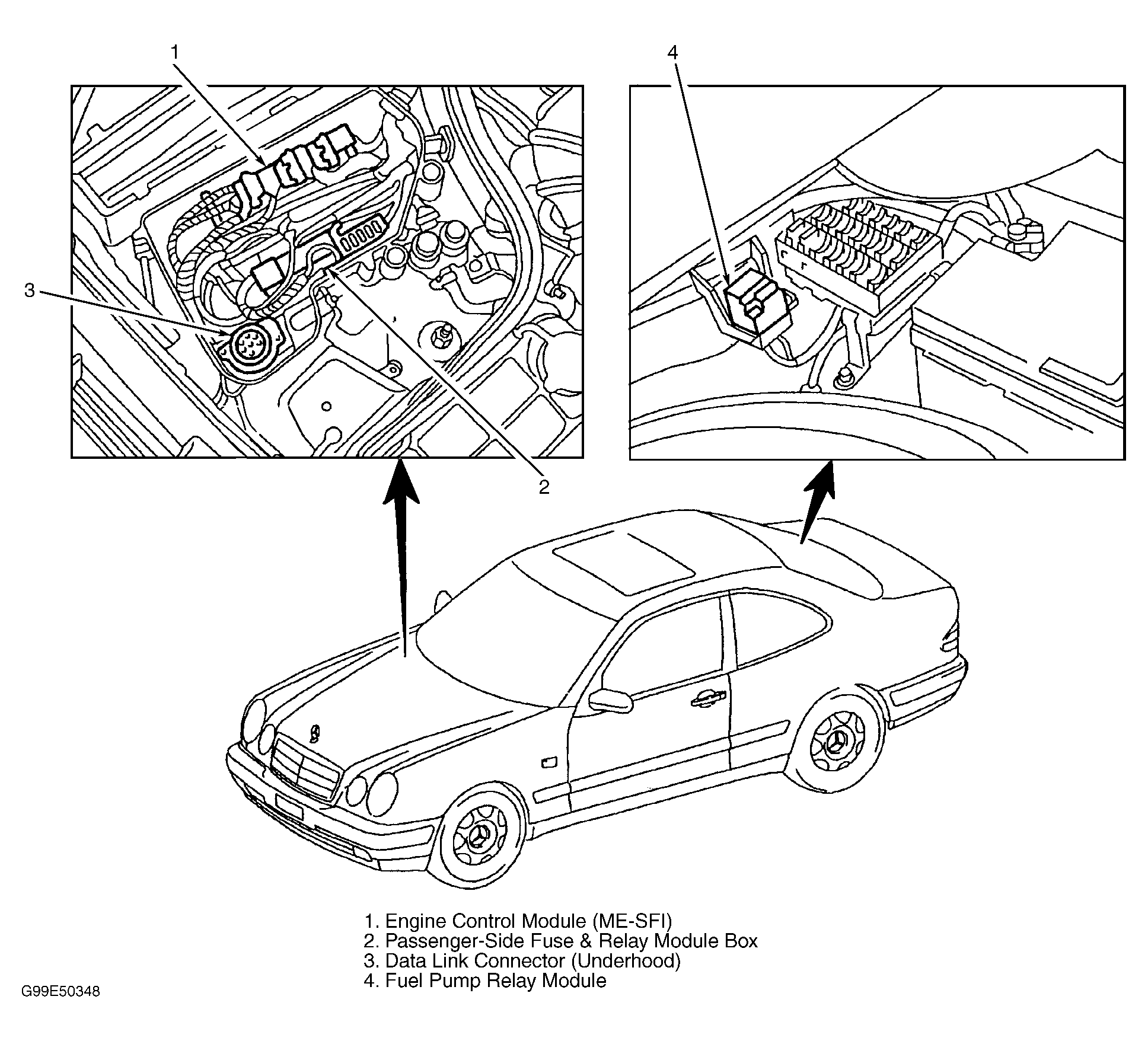

Fig 10: Locating System Components (CLK320, CLK430 & CLK55 - 1 Of 4)

G99E50348

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

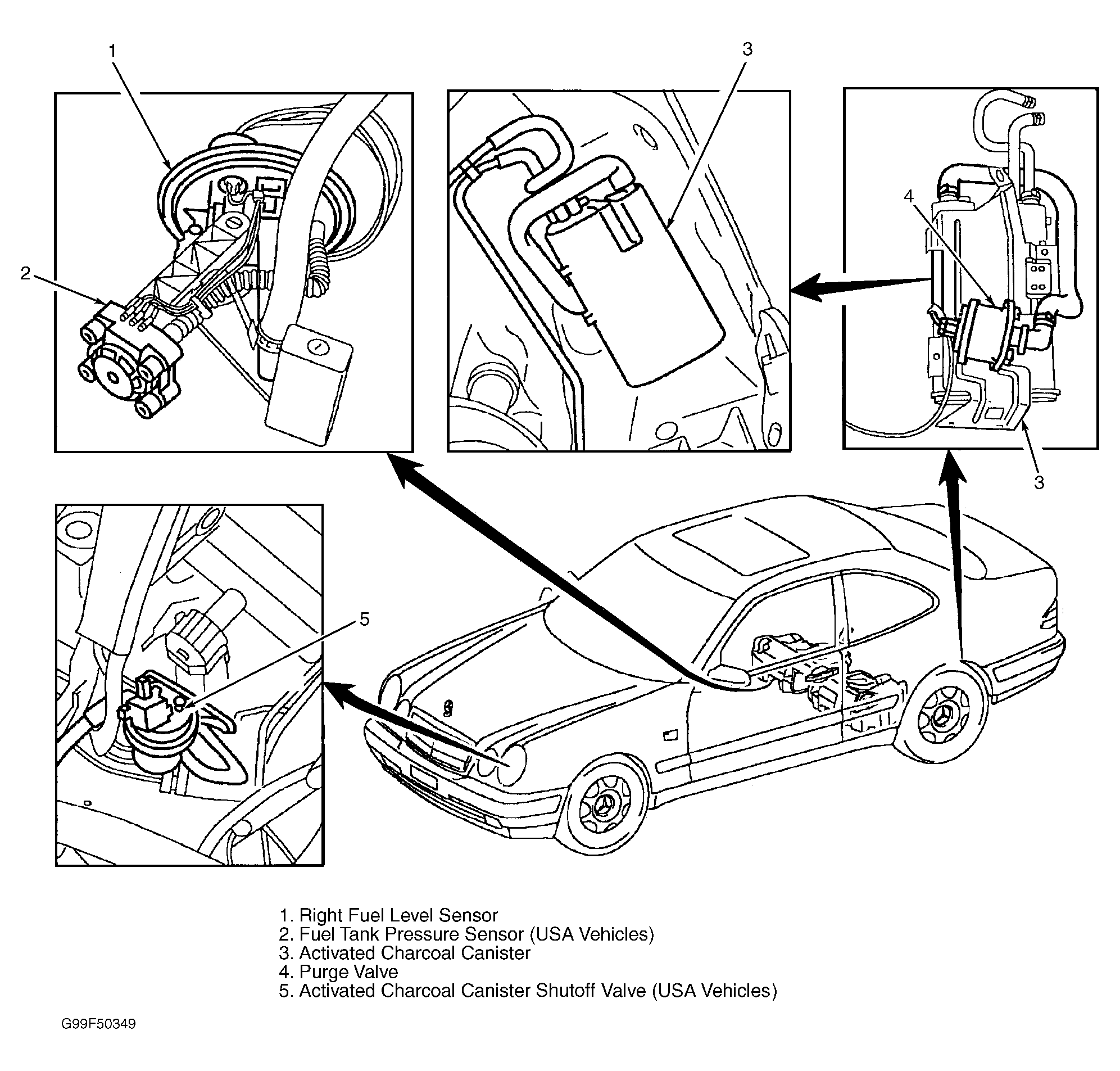

Fig 11: Locating System Components (CLK320, CLK430 & CLK55 - 2 Of 4)

G99F50349

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

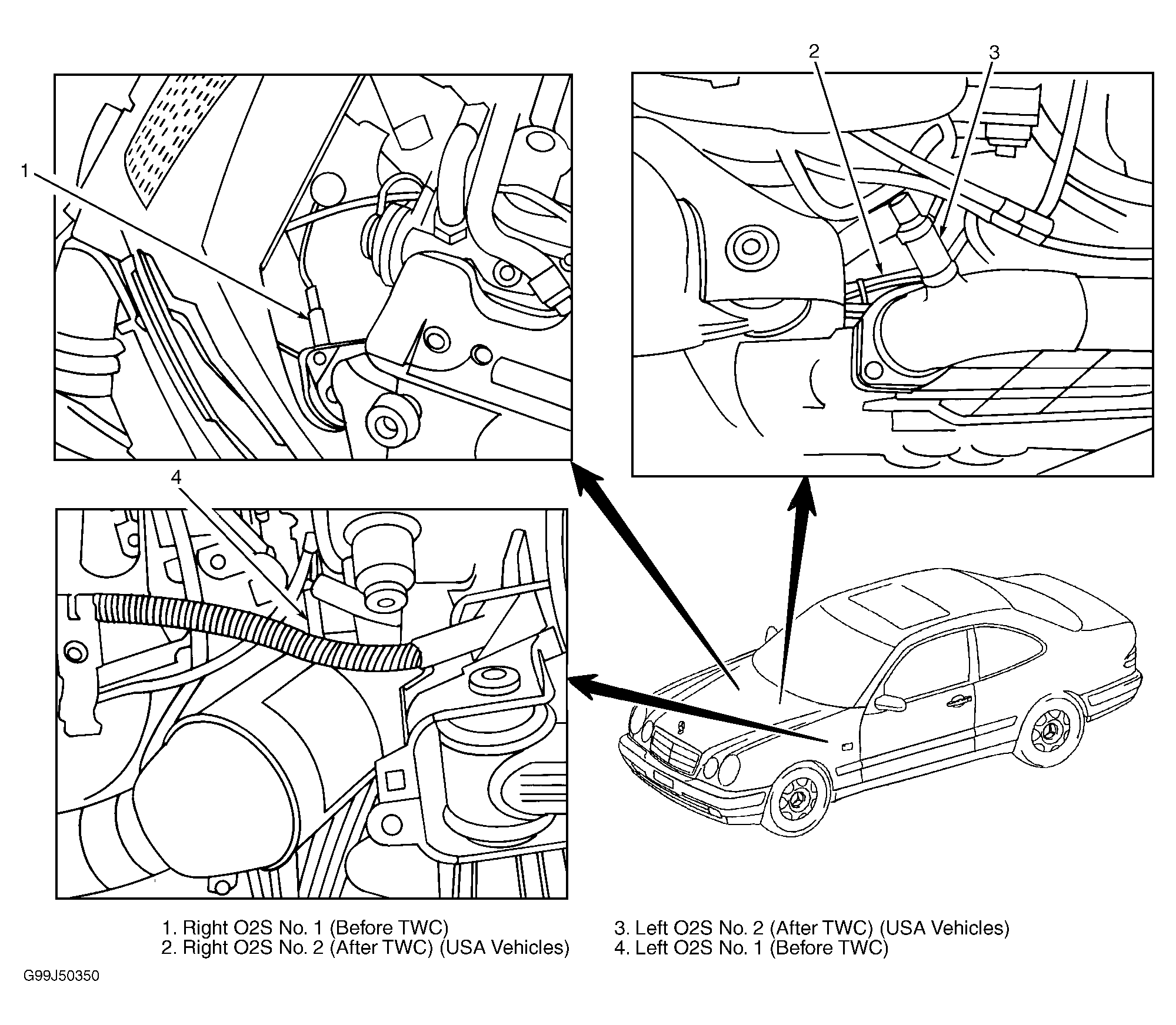

Fig 12: Locating System Components (CLK320, CLK430 & CLK55 - 3 Of 4)

G99J50350

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

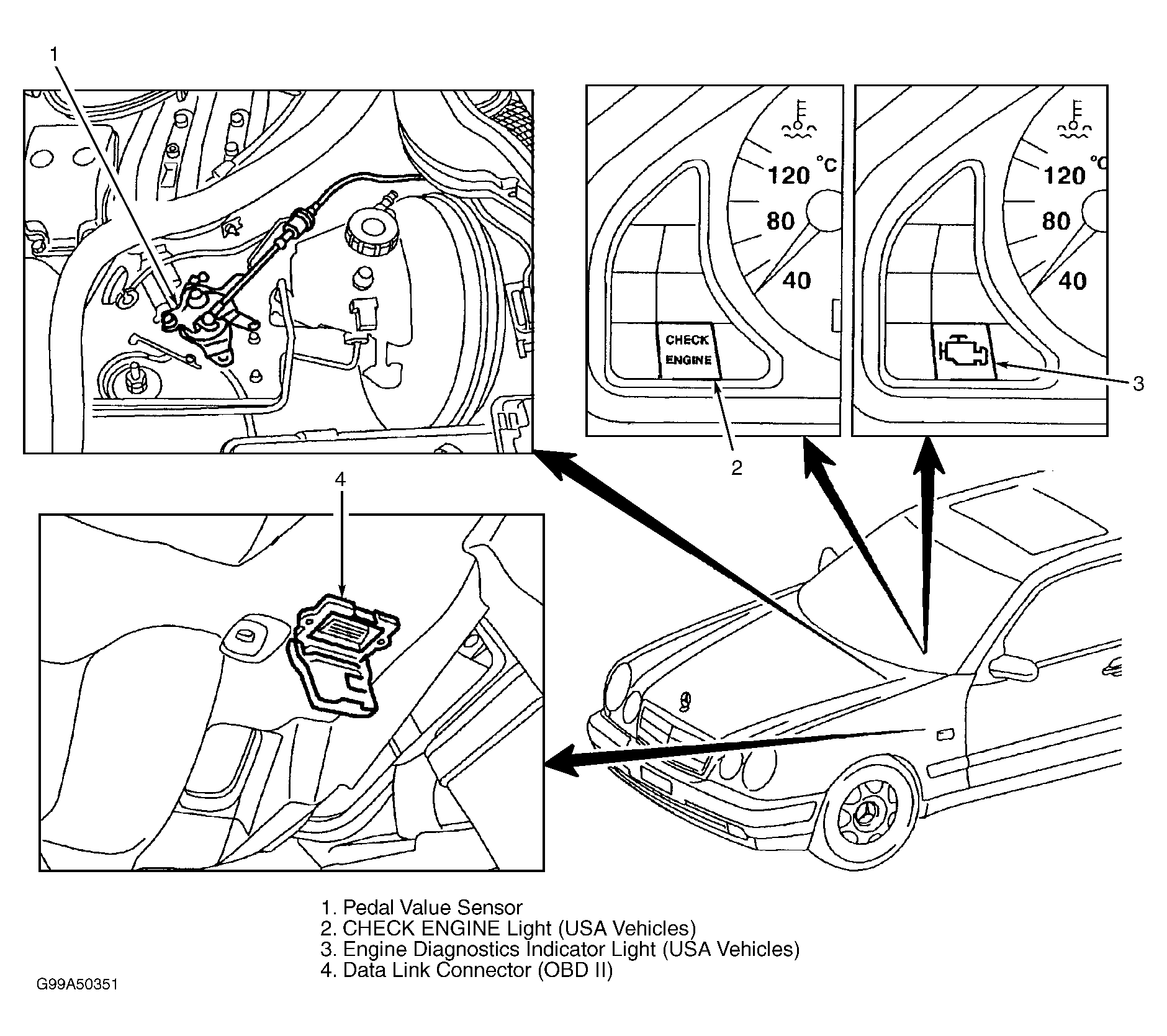

Fig 13: Locating System Components (CLK320, CLK430 & CLK55 - 3 Of 4)

G99A50351

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

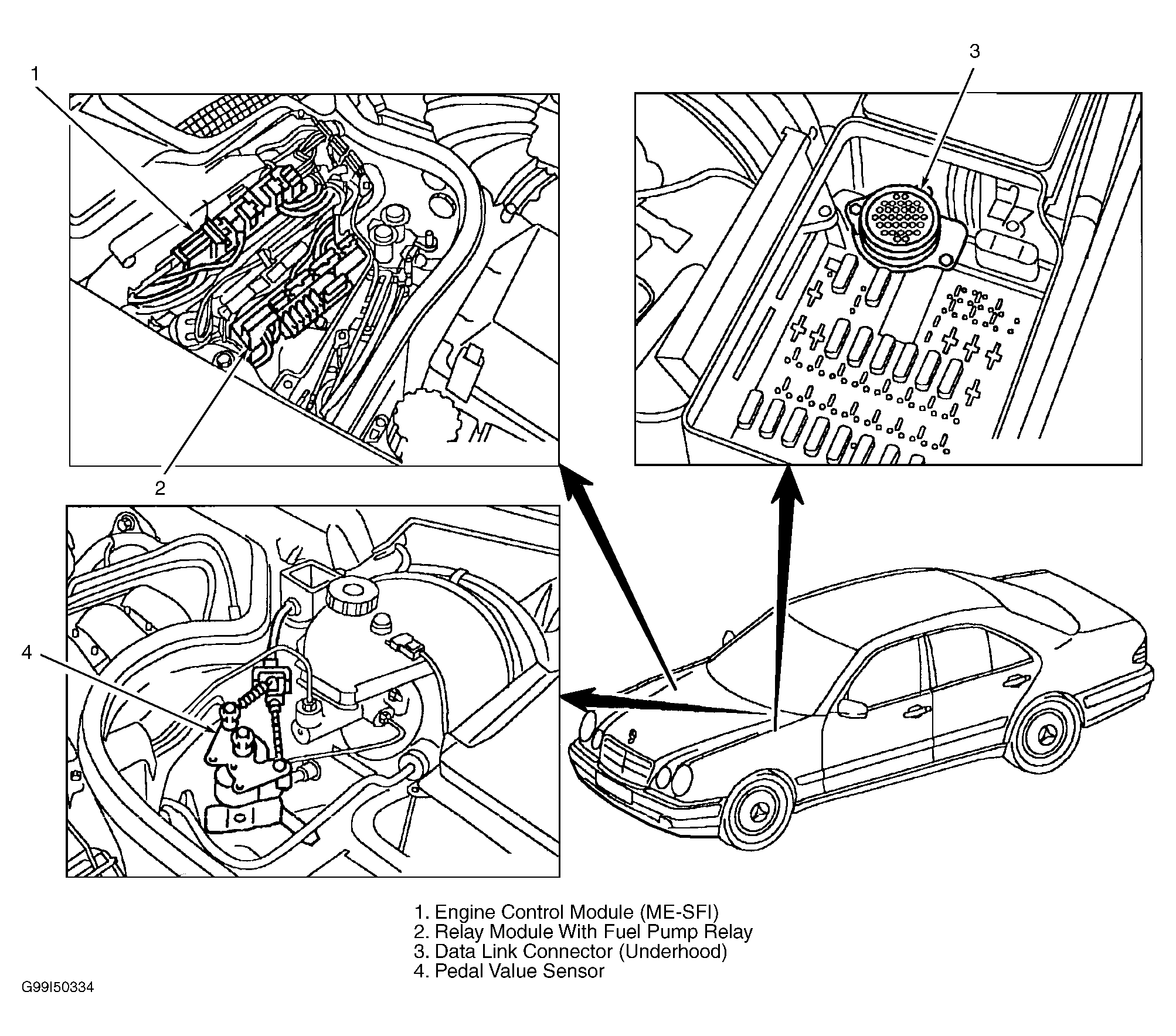

Fig 14: Locating System Components (E320, E430 & E55 - 1 Of 4)

G99I50334

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

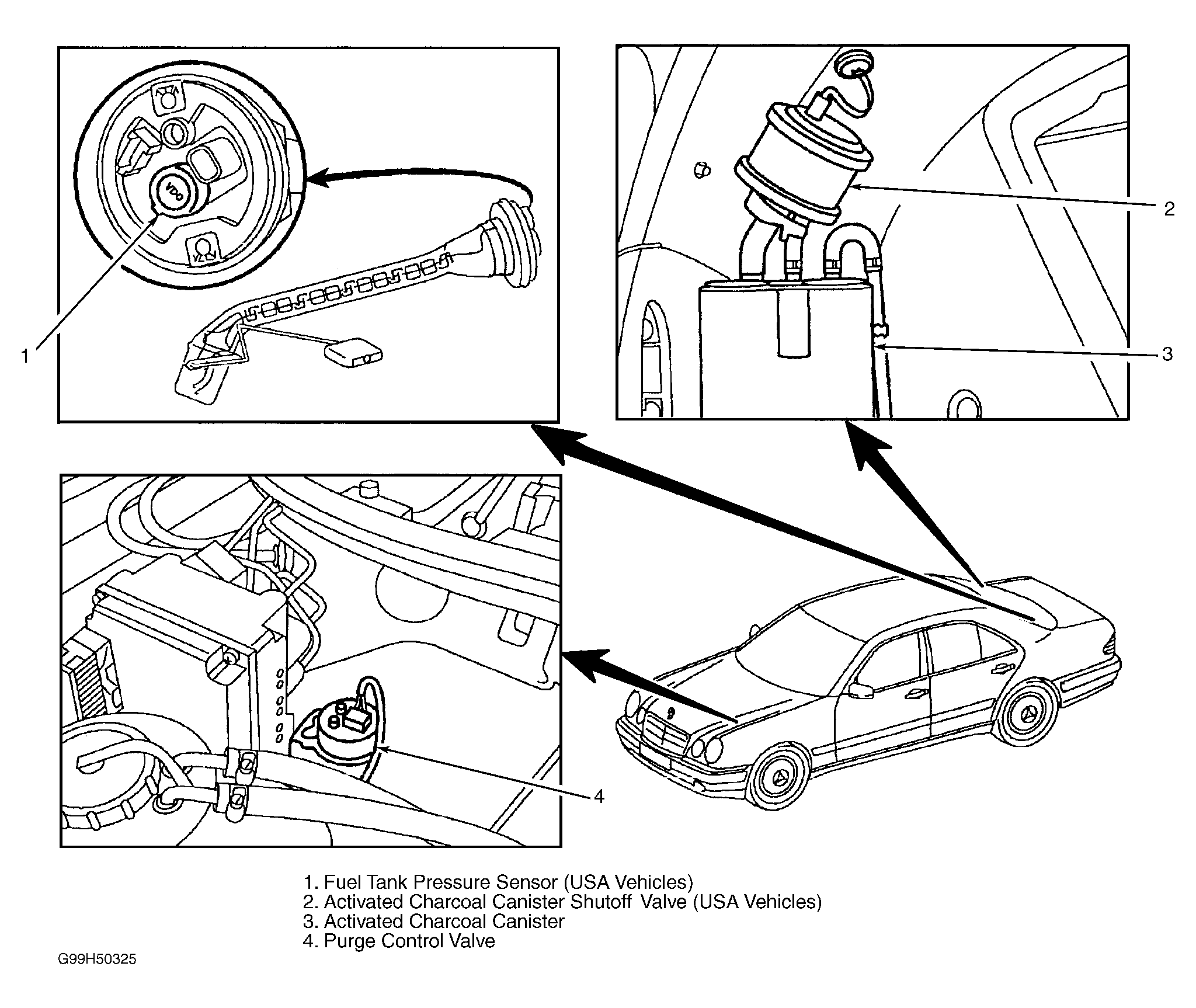

Fig 15: Locating System Components (E320, E430 & E55 - 2 Of 4)

G99H50325

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

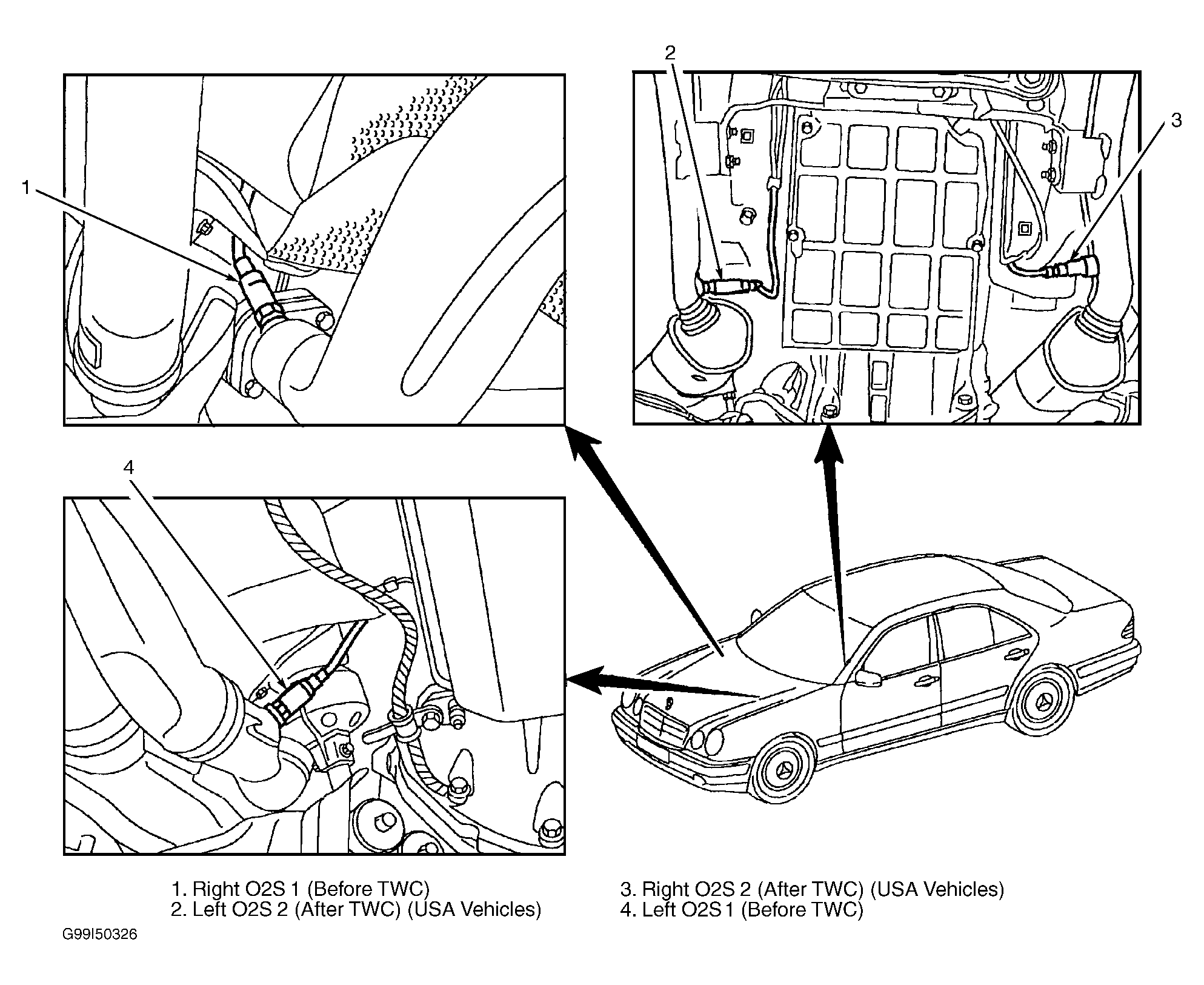

Fig 16: Locating System Components (E320, E430 & E55 - 3 Of 4)

G99I50326

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

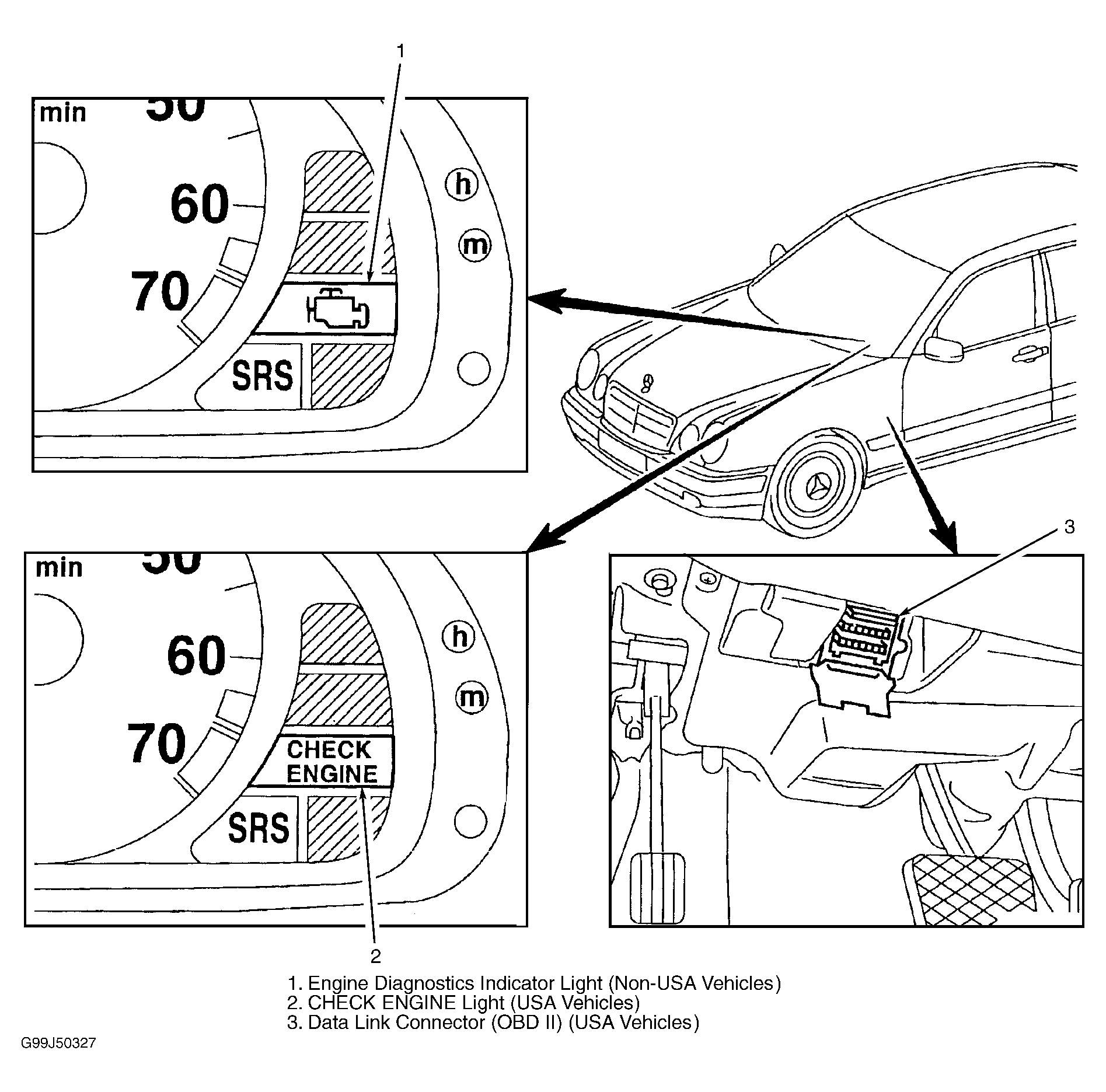

Fig 17: Locating System Components (E320, E430 & E55 - 4 Of 4)

G99J50327

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

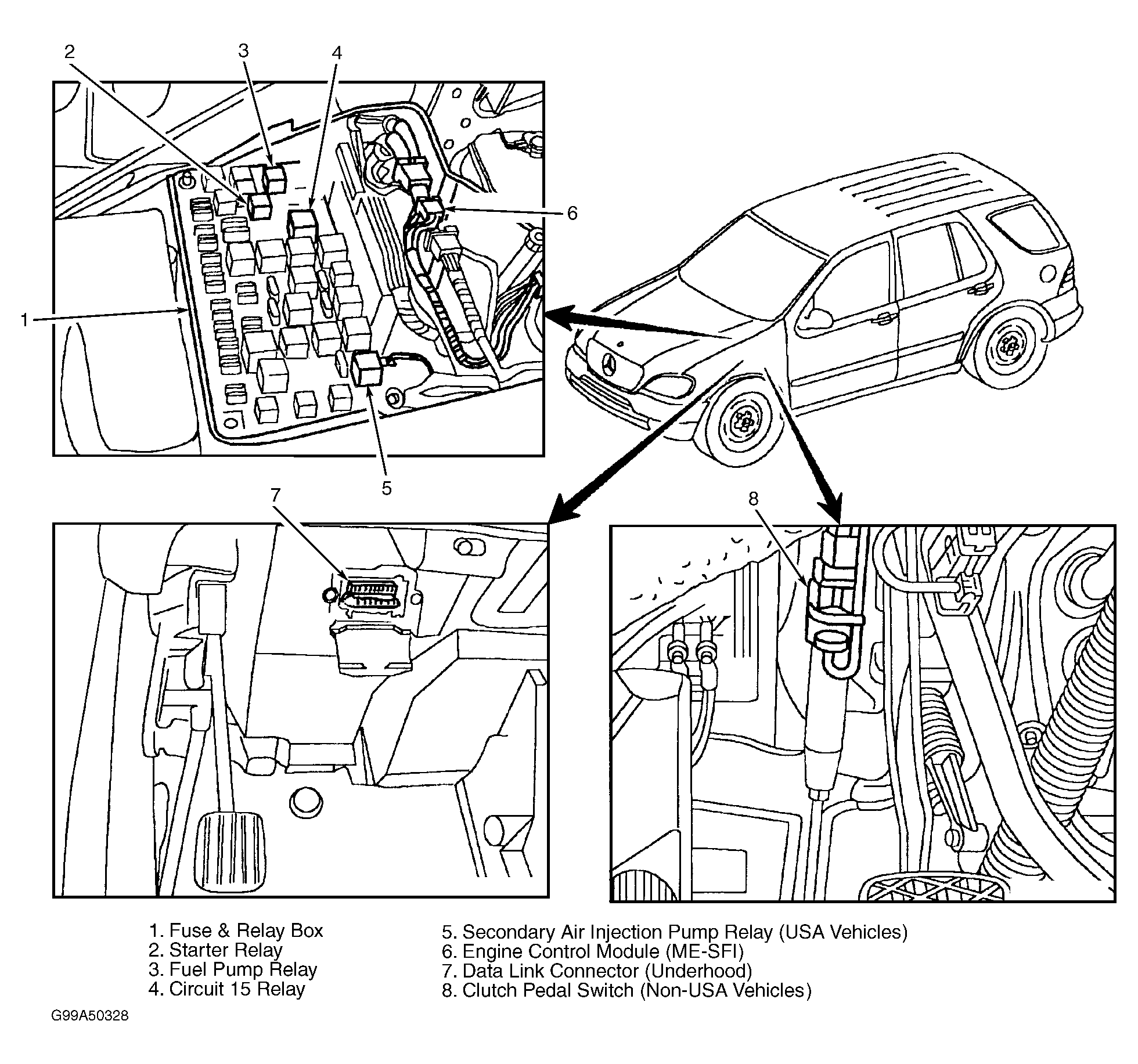

Fig 18: Locating System Components (ML320, ML430 & ML55 - 1 Of 3)

G99A50328

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

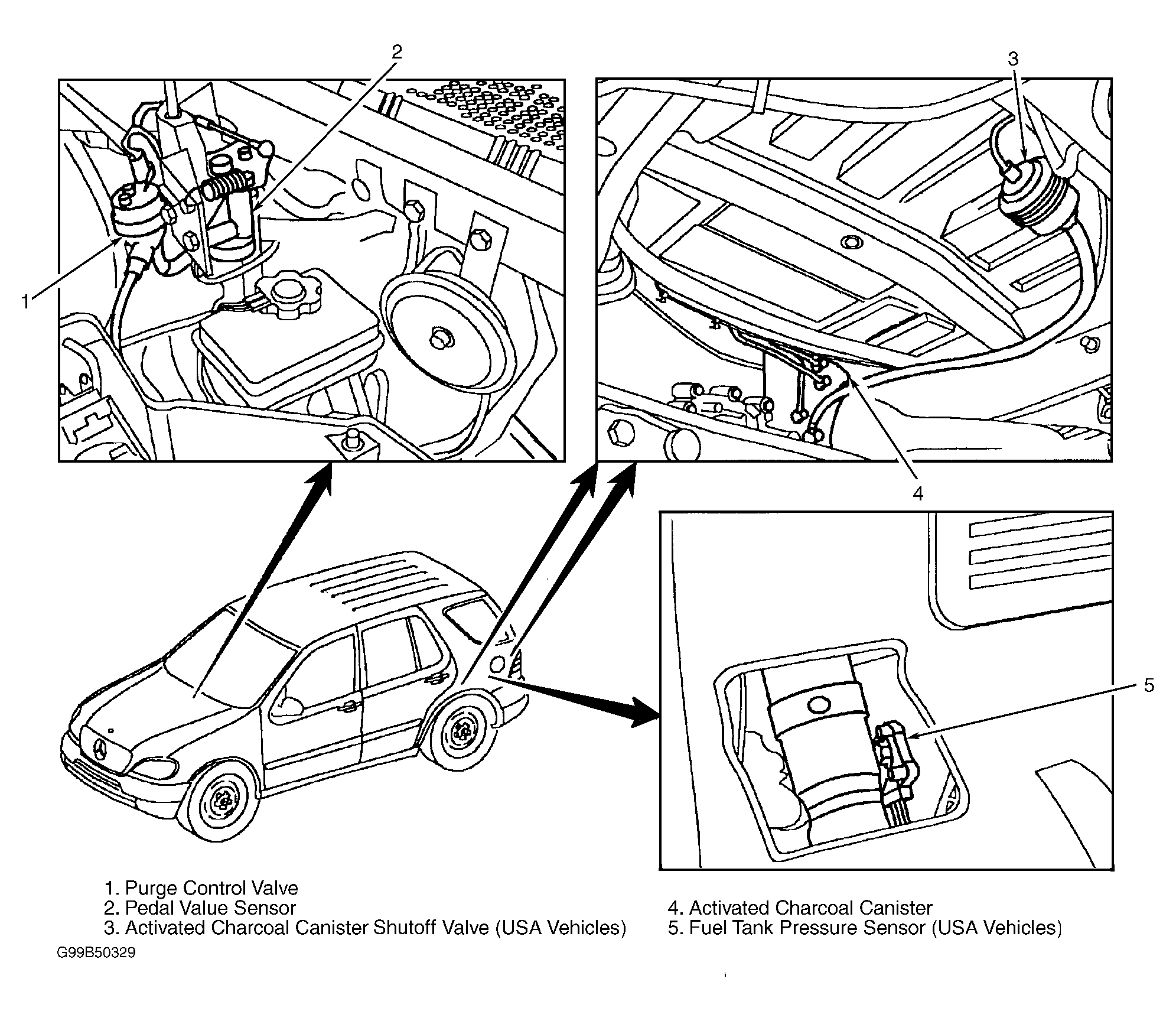

Fig 19: Locating System Components (ML320, ML430 & ML55 - 2 Of 3)

G99B50329

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

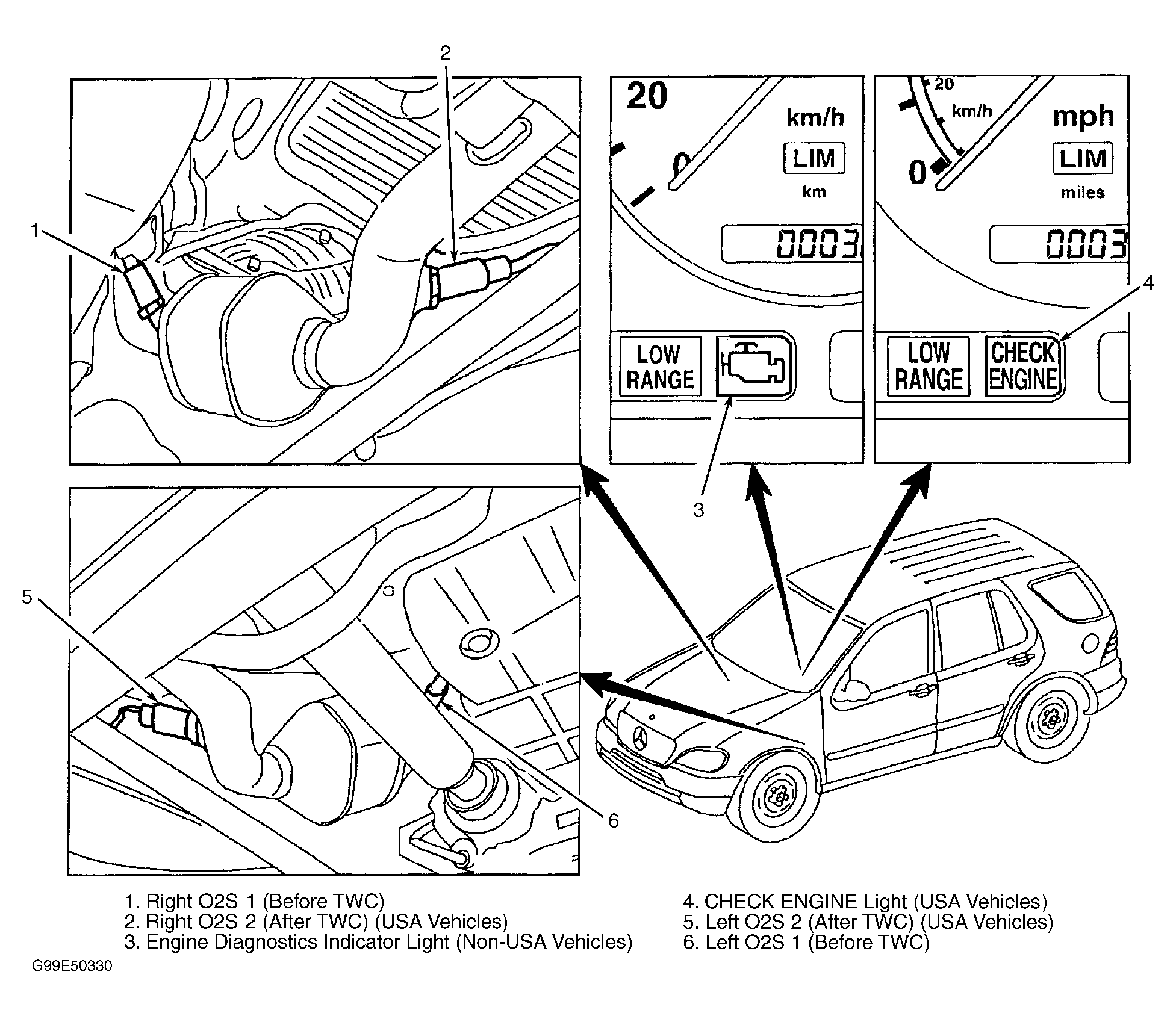

Fig 20: Locating System Components (ML320, ML430 & ML55 - 3 Of 3)

G99E50330

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

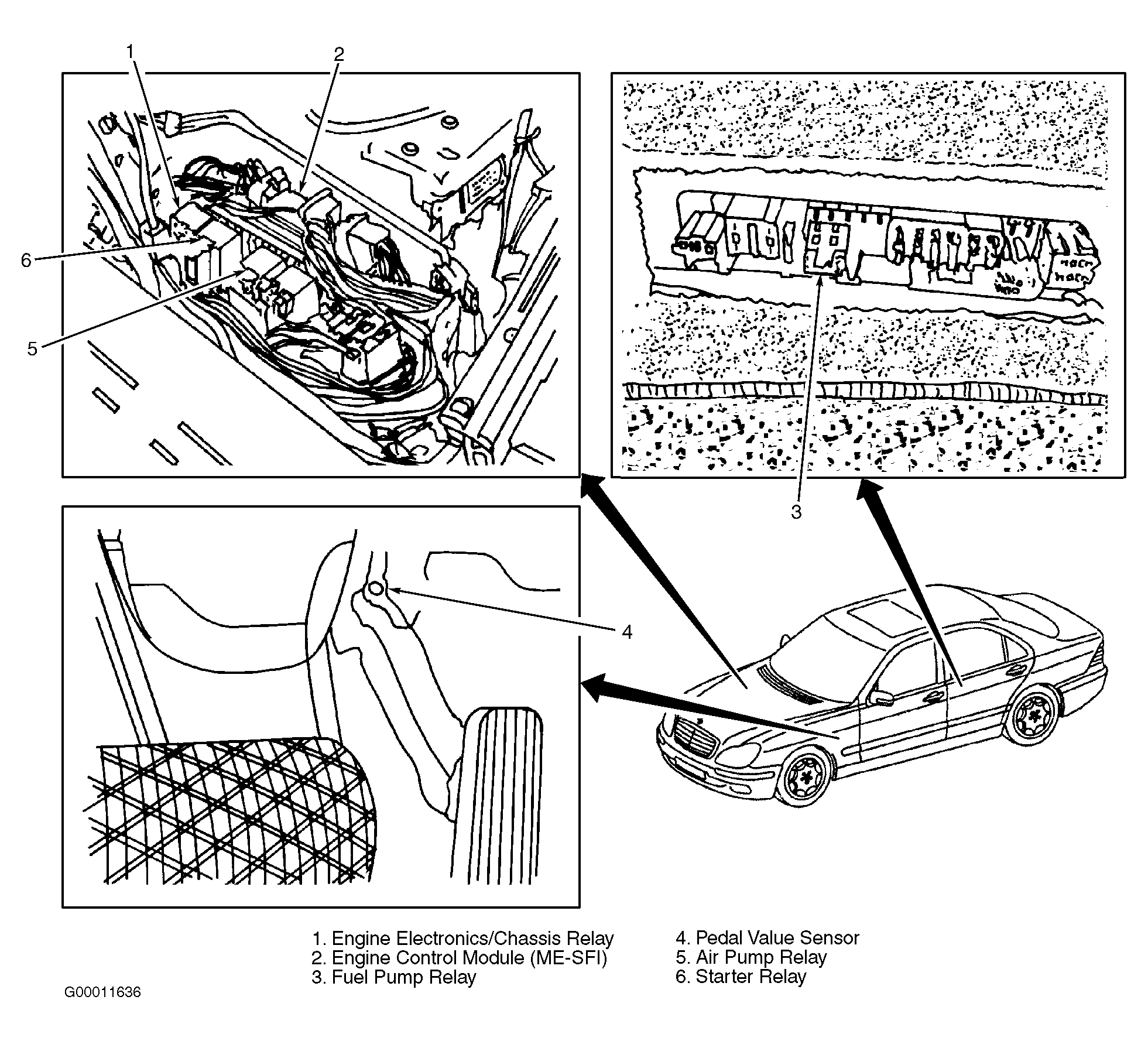

Fig 21: Locating System Components (S430, S500 & S55 - 1 Of 3)

G00011636

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

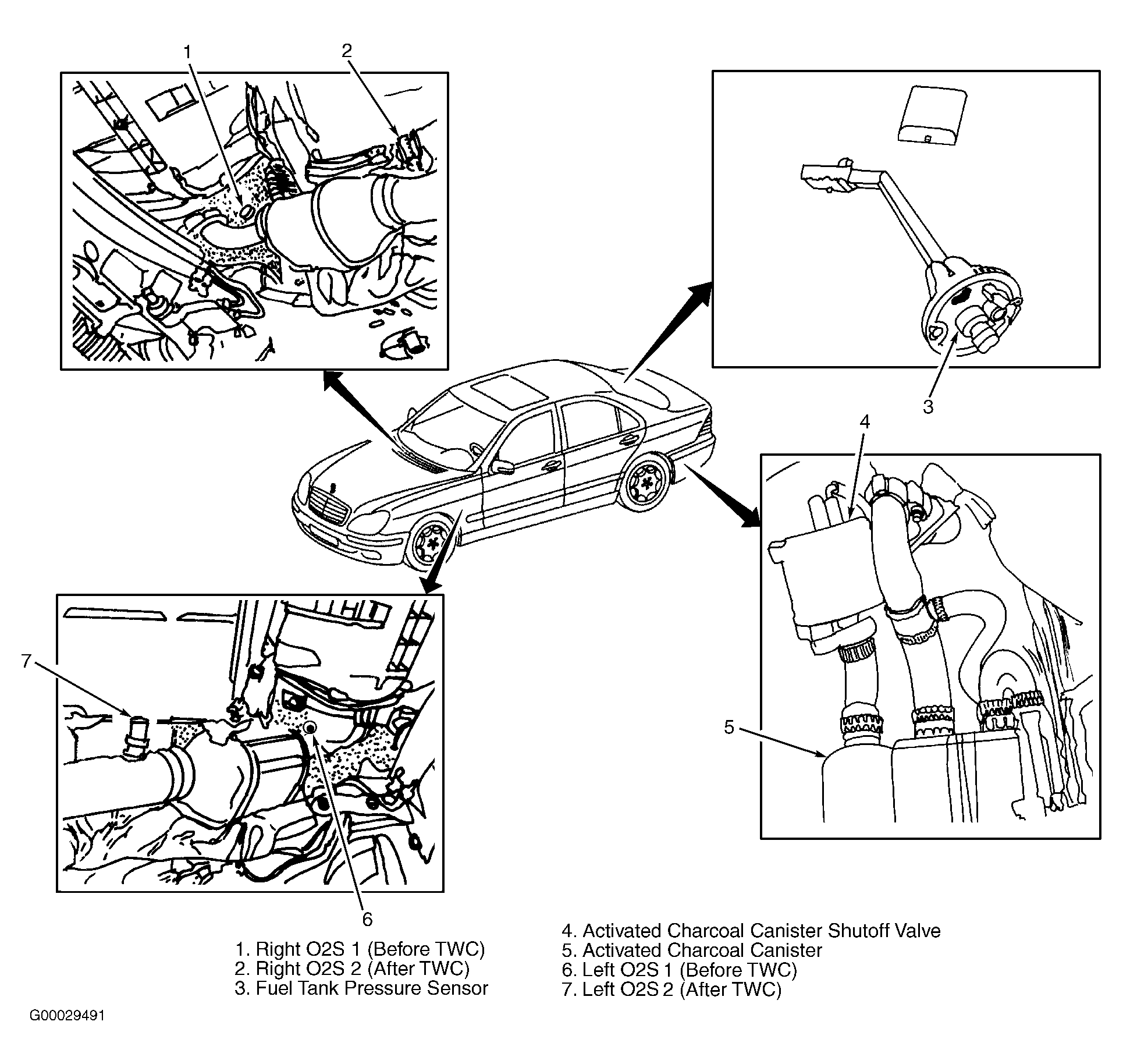

Fig 22: Locating System Components (S430, S500 & S55 - 2 Of 3)

G00029491

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

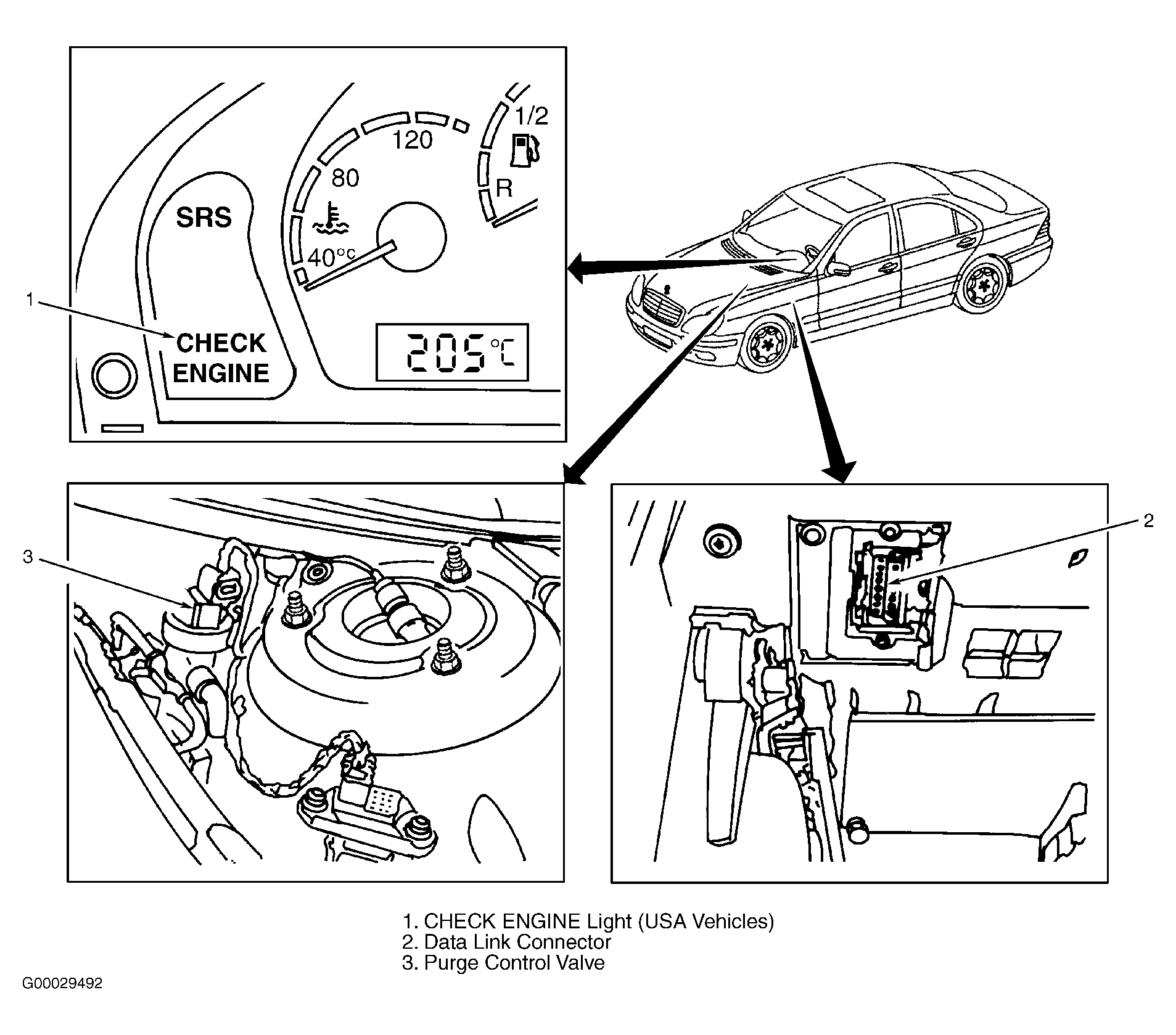

Fig 23: Locating System Components (S430, S500 & S55 - 3 Of 3)

G00029492

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

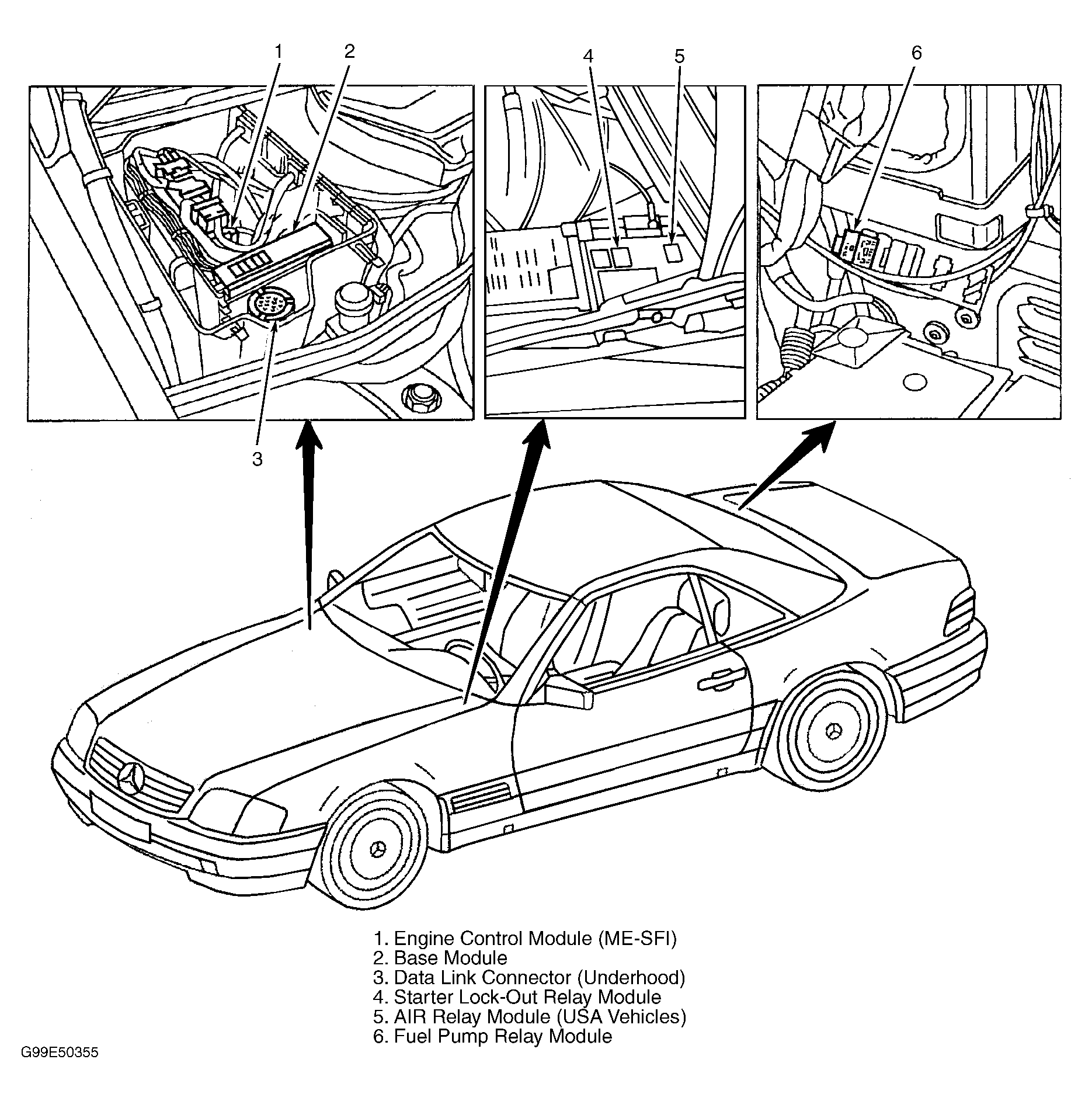

Fig 24: Locating System Components (SL500 - 1 Of 4)

G99E50355

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

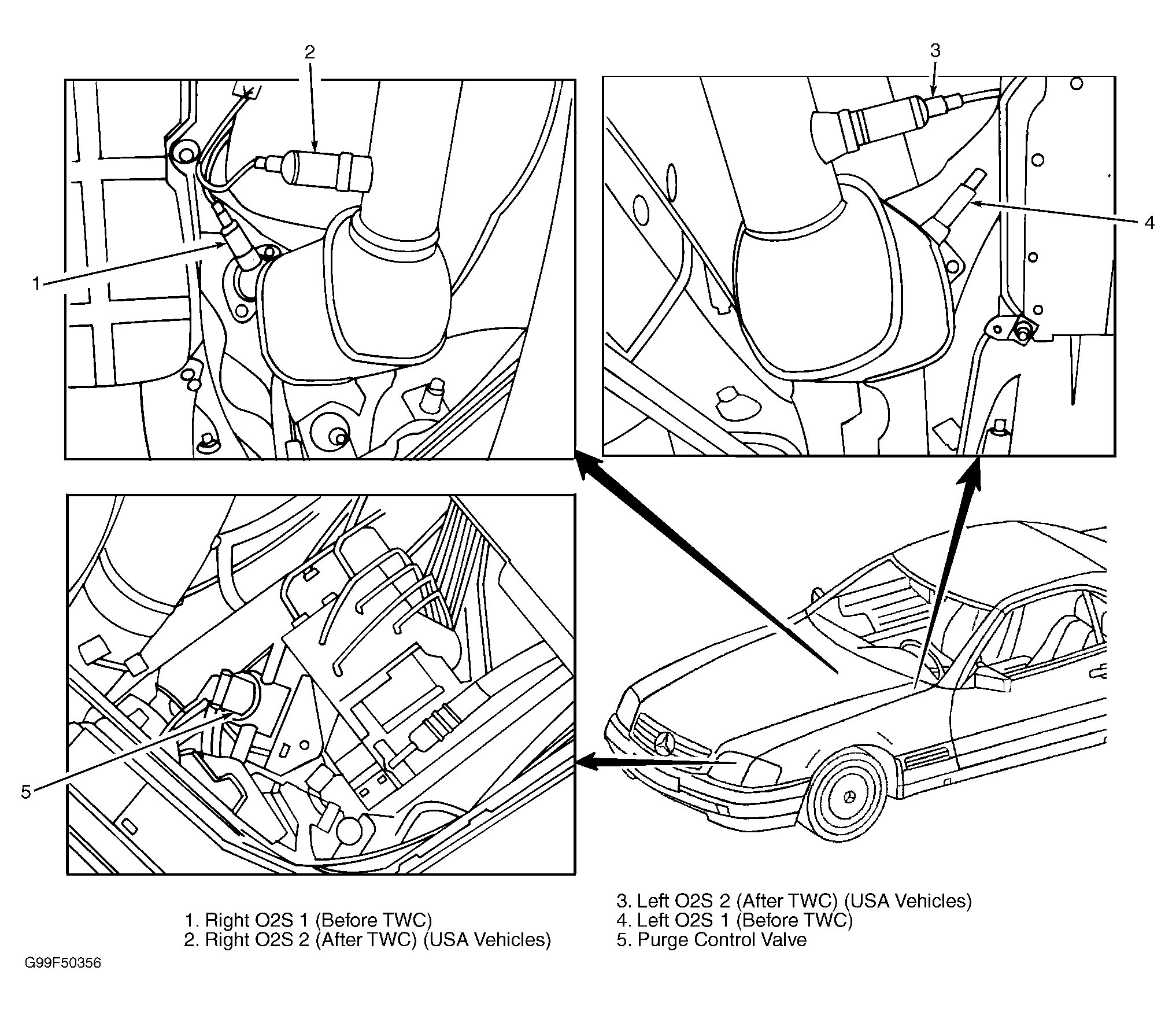

Fig 25: Locating System Components (SL500 - 2 Of 4)

G99F50356

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

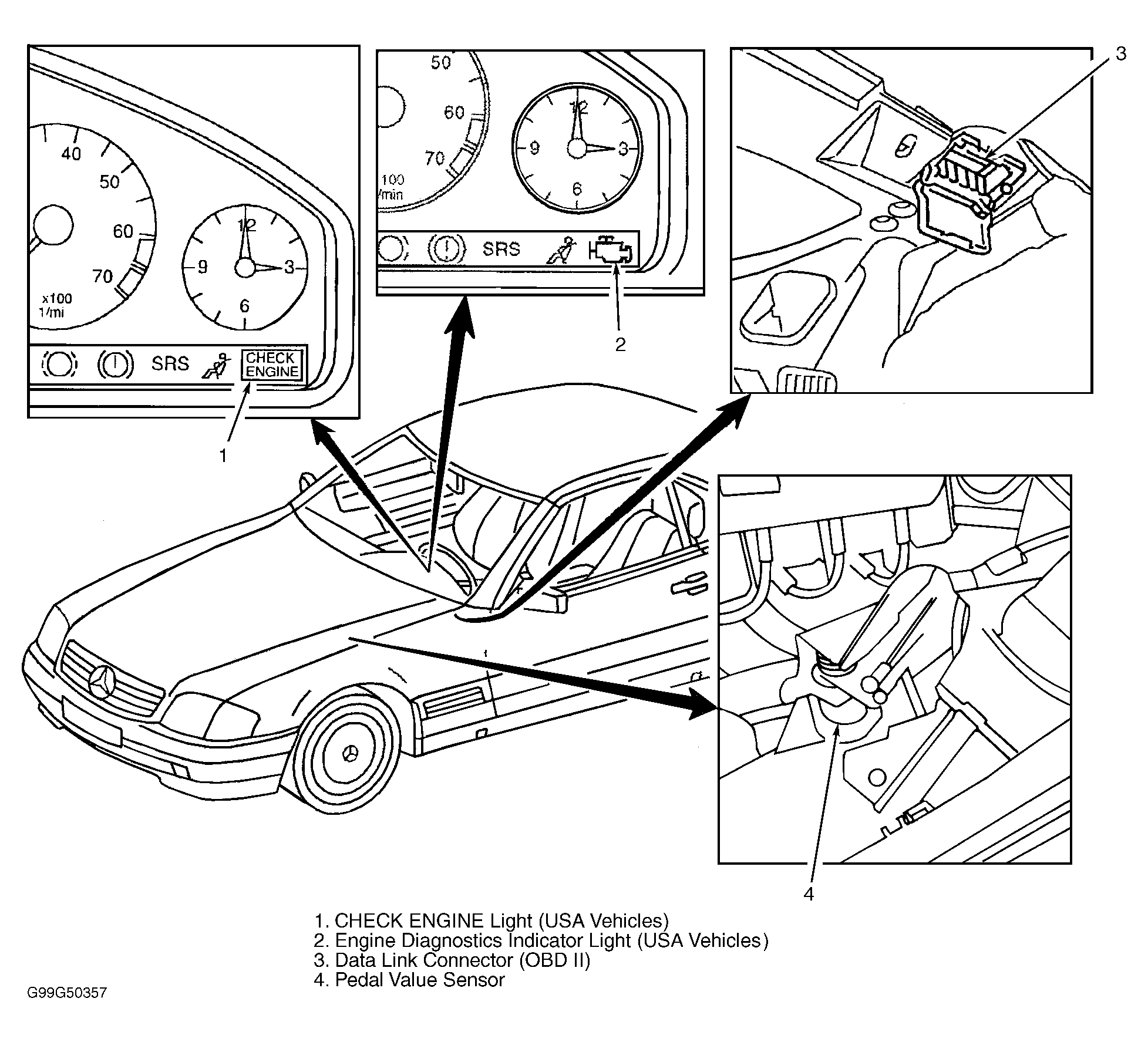

Fig 26: Locating System Components (SL500 - 3 Of 4)

G99G50357

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

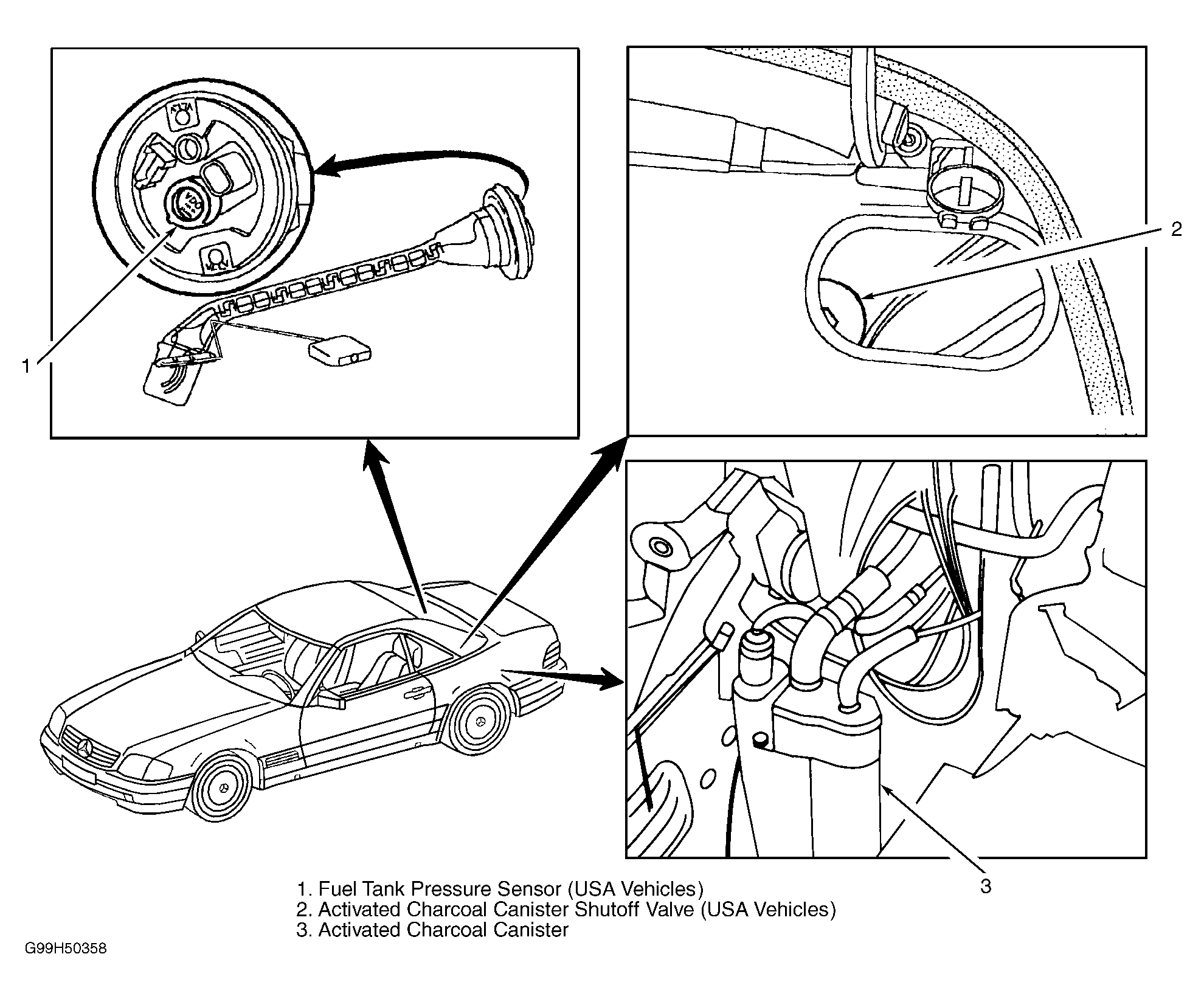

Fig 27: Locating System Components (SL500 - 4 Of 4)

G99H50358

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

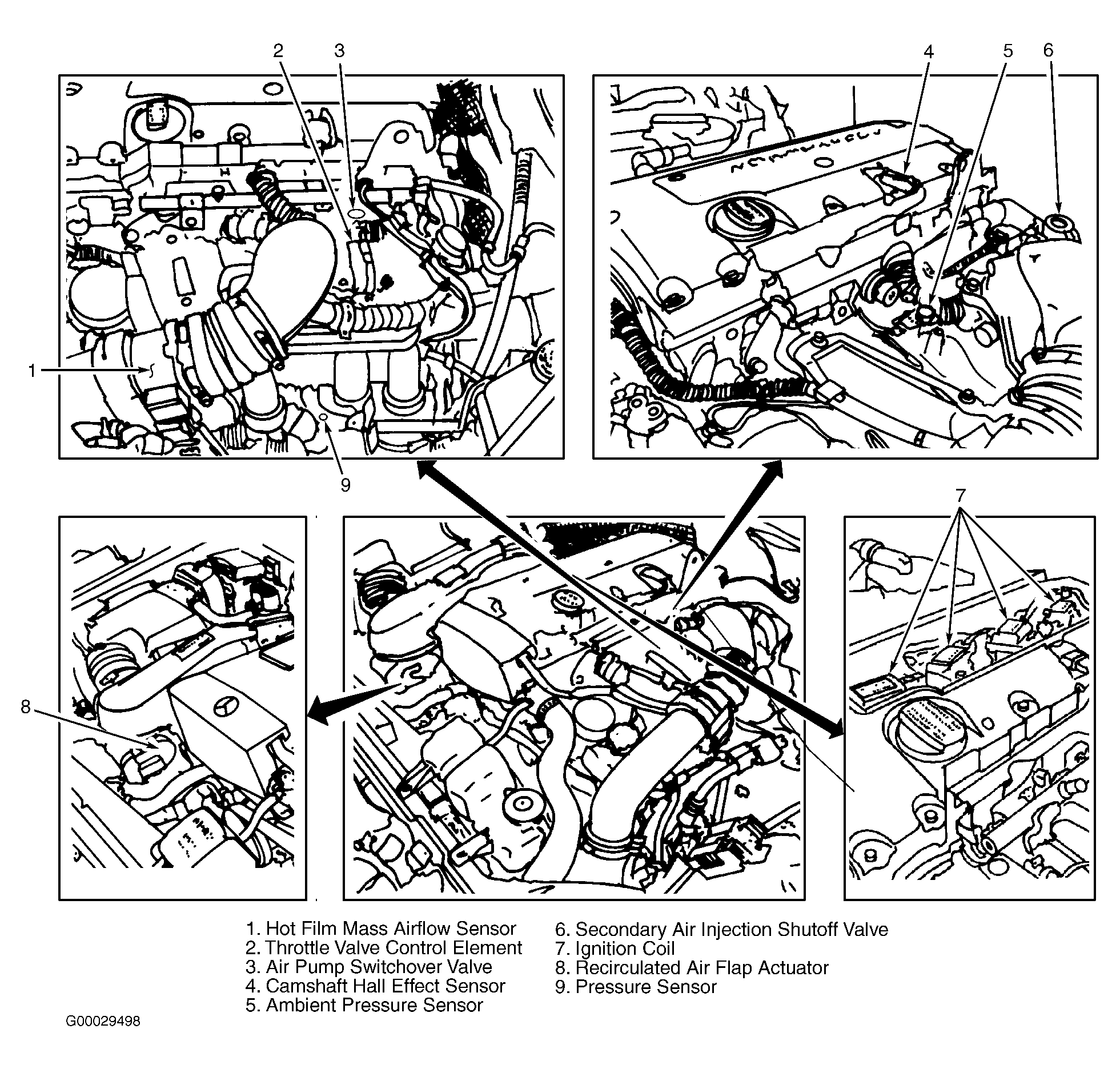

Fig 28: Locating System Components (SLK230)

G00029498

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

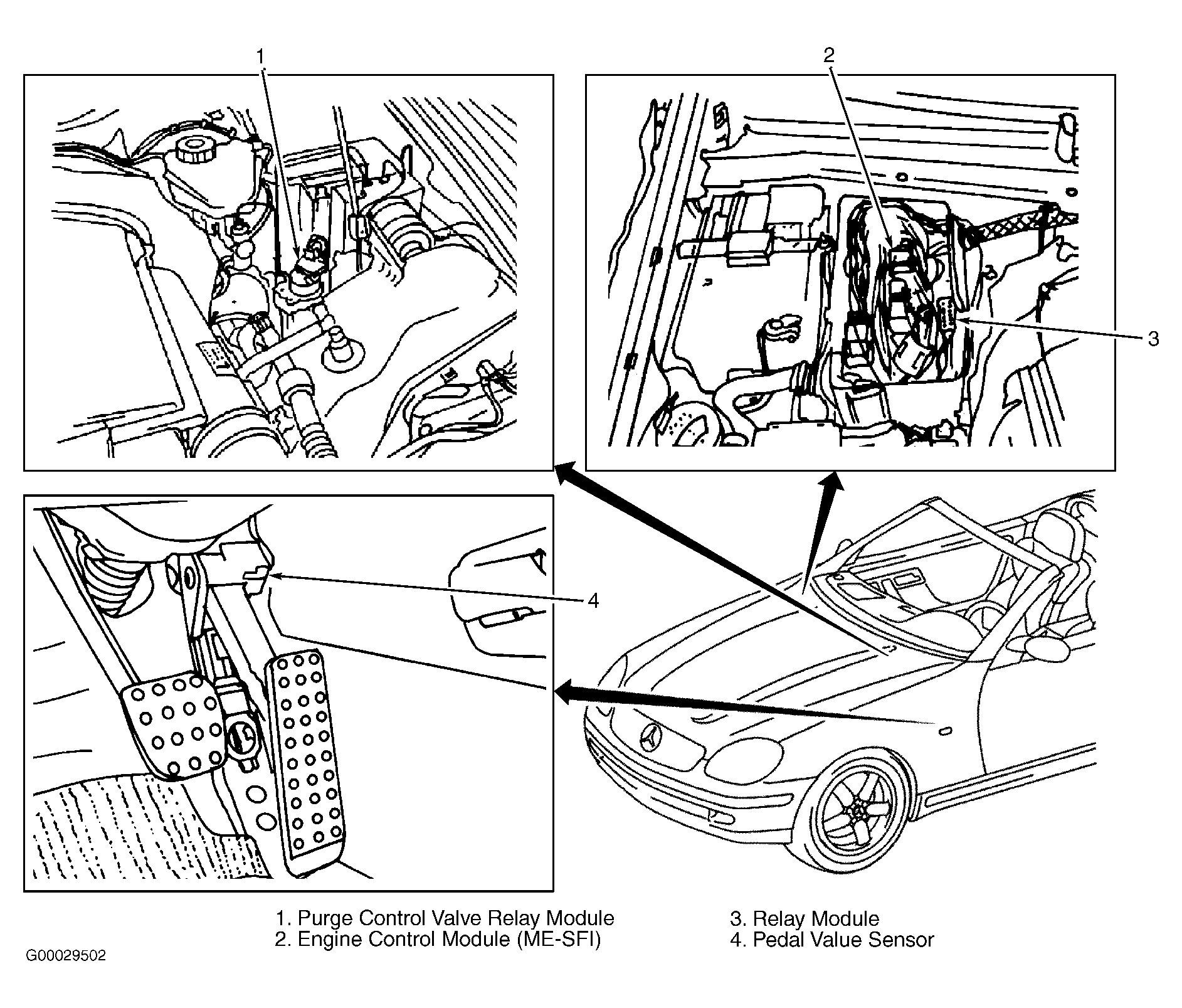

Fig 29: Locating System Components (SLK230 & SLK320 - 1 Of 2)

G00029502

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

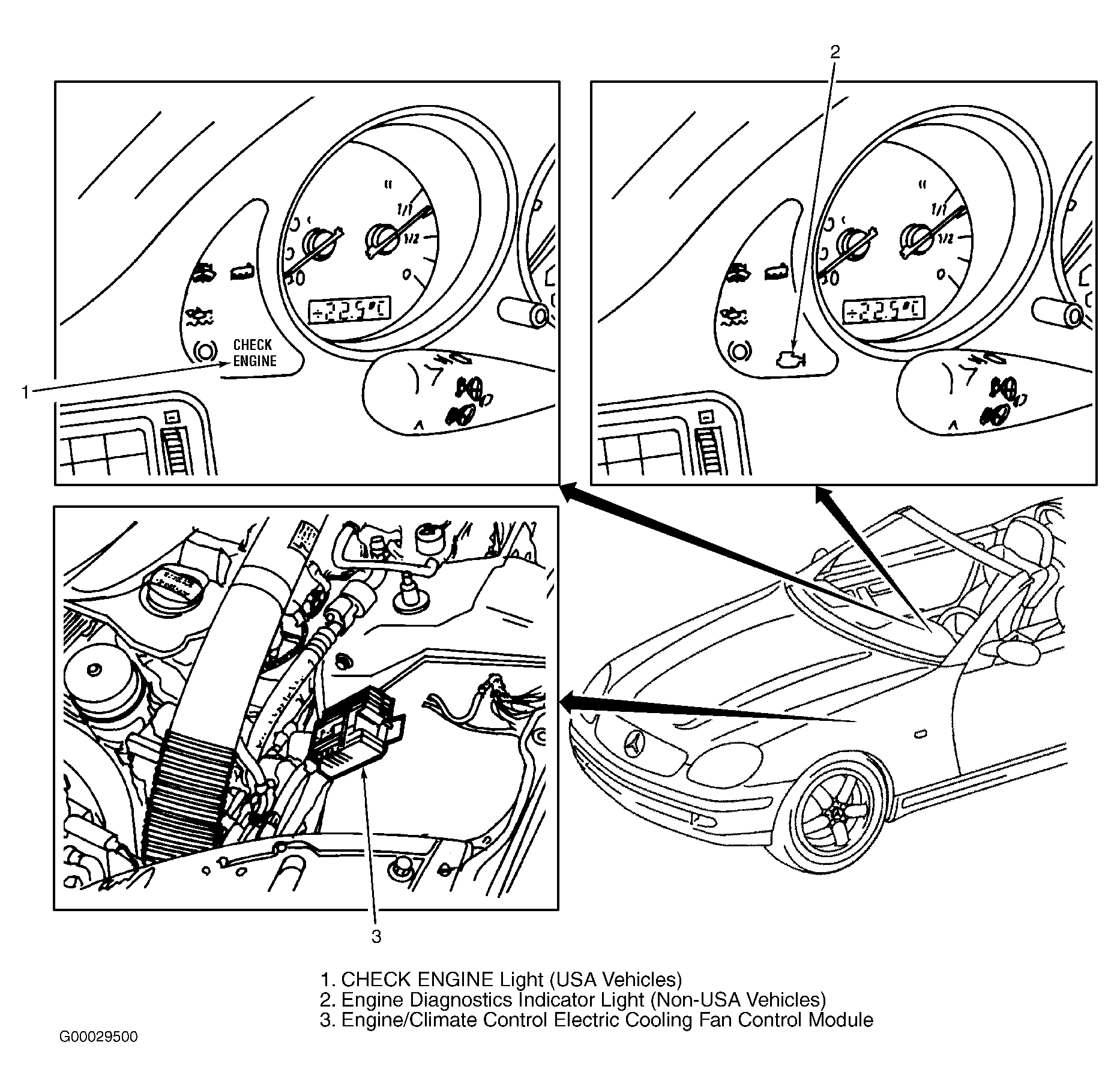

Fig 30: Locating System Components (SLK230 & SLK320 - 2 Of 2)

G00029500

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

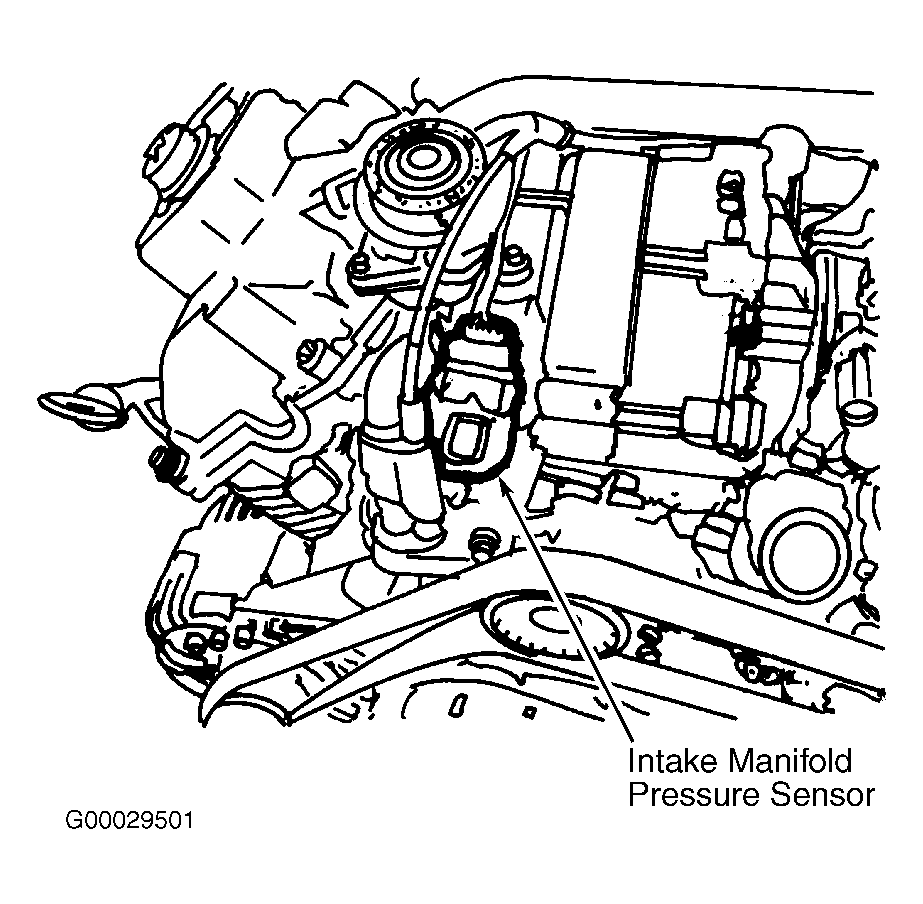

Fig 31: Locating System Components (SLK320)

G00029501

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
