Kickdown switch location/task/design/function - GF30.30-P-4000A

ENGINE 112, 113, 119, 120 in MODEL 129

ENGINE 104, 119, 120 in MODEL 140

ENGINE 112, 113 in MODEL 163

ENGINE 166 in MODEL 168

ENGINE 111,112 (except, 112.96) in MODEL 170

ENGINE 111,112, 113 in MODEL 202

ENGINE 111,112 (except, 112.96) in MODEL 203

ENGINE 111,112, 113 in MODEL 208

ENGINE 111,112, 113 in MODEL 210

ENGINE 112,113,137 (except, 113.99) in MODEL 220

ENGINE 113,137 (except 113.99) in MODEL 215

ENGINE 112,113 (except, 113.99) in MODEL 230

ENGINE 112, 113 in MODEL 211

ENGINE 112, 113 in MODEL 209

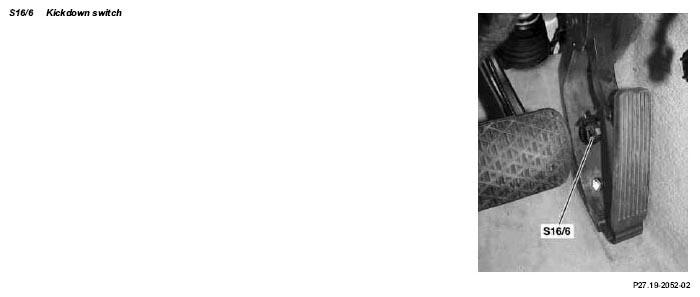

Fig 1: Identifying Kickdown Switch

Kickdown switch position	in footwell behind accelerator pedal
Kickdown switch task	Identify kickdown position of accelerator pedal, in order to influence transmission control, cruise control, variable speed limiter and Distronic.
Kickdown switch design	Up to approx. 6/02 designed as an electrical switch (S16/6). As of approx. 7/02 (without engine 166) the electrical switch is replaced by the Kickdown simulator (spring).	GF30.20-P-4011-02C
Kickdown switch function	Engine 111, 112, 113, 119, 120, 137 up to approx 6/02 and Engine 166: on closed contact the ground is switched to the engine control unit As of approx. 7/02 (without Engine 166): Kickdown recognition is performed via the signal of the accelerator pedal sensor.
