All-activity module position/task/design/function - GF54.21-P-4100GK
MODEL 163 as of 1.12.99

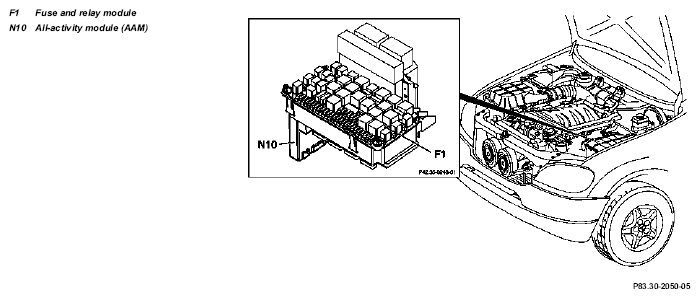

| All-activity module, location | The all-activity module (AAM) (N10) is plugged into the fuse and relay module (F1) from below. | |
| All-activity module, task | GF54.21-P-4100-02GK | |
| All-activity module, design | The AAM is accommodated in a sturdy plastic housing. It is connected to the wiring harnesses by 4 plug connectors and one coaxial connection. A 50-pin strip socket connects it with the fuse and relay module (F1). |
|
| All-activity module, function | GF54.21-P-4110-01GK |
