Shift Detent, Design

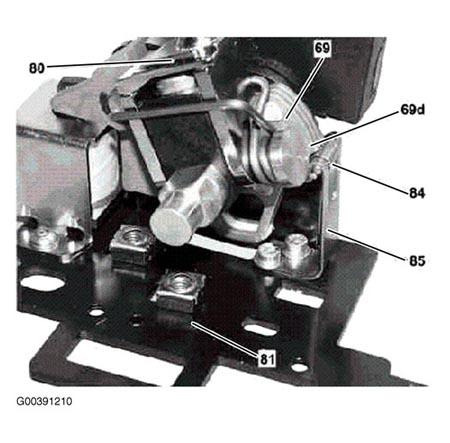

Fig 1: Shift Detent, Design

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Structure -  The shift detent consists of:

• The Locking Disc (69) Rigidly Connected To The Selector Lever (80). See Fig 1
• The Cam With Recess (69D)
• A Leaf Spring (85) Bolted Onto The Body (81)
• A Metal Roller (84) Inserted Into The Leaf Spring (85)
