Position Display, Location/Task

Transmission with touch shift.

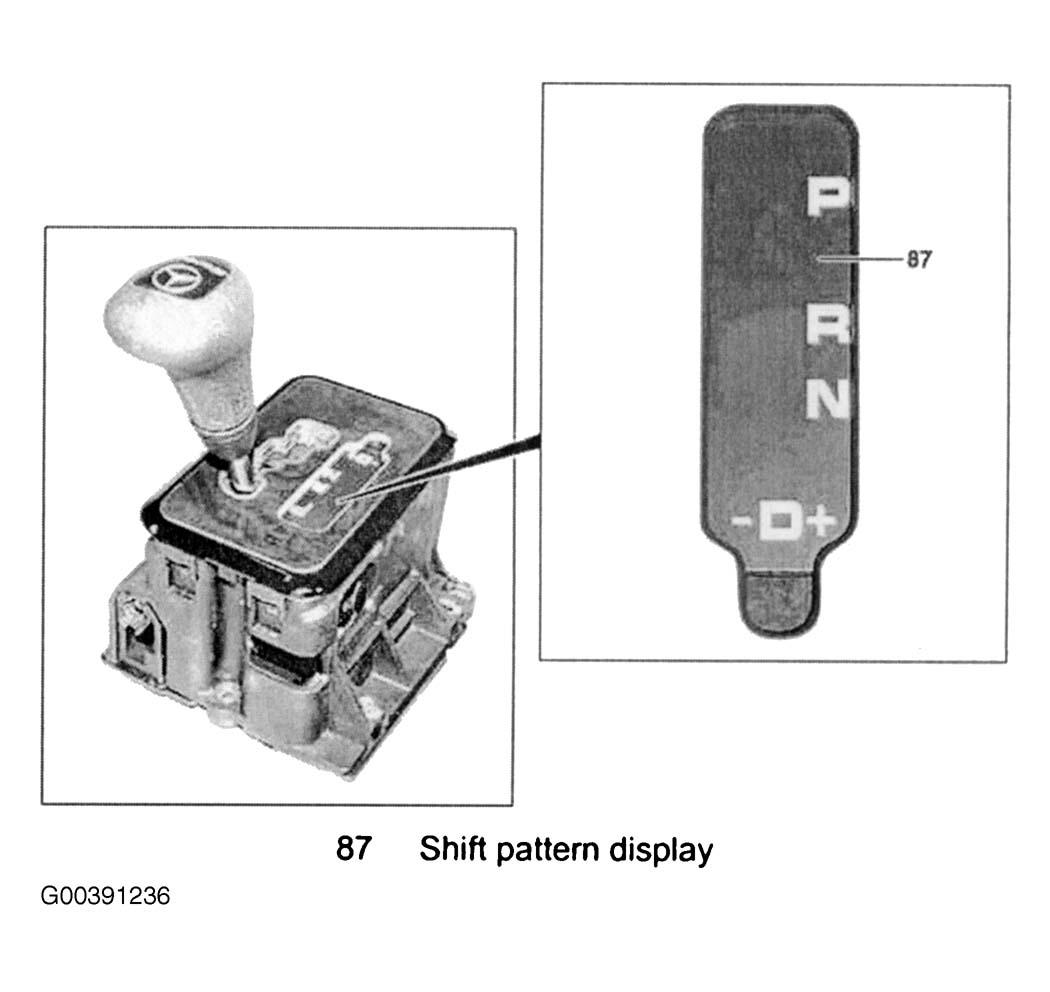

Fig 1: Position Display, Location/Task
G00391236Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

  1. Position Display, Location

    The position display (selector scheme symbols (87)) is accommodated in the floor shift cover. See Fig 1. In addition a gear display is located in the instrument cluster (A1).

  2. Position Display, Task

    Via the selector scheme symbols (87) the alternative selector lever positions and their sequence are shown symbolically.
