Shift detent mechanism, location/task/design/function - GF27.60-P-5101G
TRANSMISSION 722.6 in MODEL 163, 170, 202, 208, 210 without touch shift
TRANSMISSION 722.6 in MODEL 129, 140
| Shift detent, location | The shift detent is integrated into the floor shift. | ||
| Shift detent, task | Fixing the selector lever positions "4", "3", "2", "1". | ||

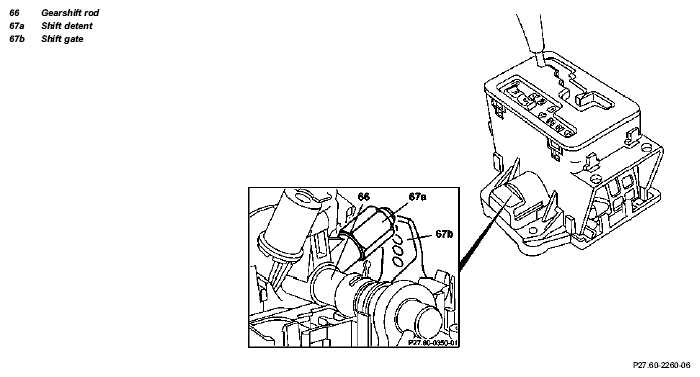

| Shift detent, design | The shift detent consists of a detent (67a) containing a spring-loaded ball and the shift gate (67b) with recesses arranged one under another. | ||
| Shift detent, function | When the selector lever is moved between the selector lever positions "4", "3", "2", "1" the shift detent (67a) locks in position in one of the four recesses in the shift gate (67b). |
