Function Tests

NOTE: Before performing function test, see USING DIAGNOSTIC CHARTS  .

Use function tests charts to determine which system test to perform. See Fig 1 . If problem is identified, perform appropriate test procedure under SYSTEM TESTS  . If problem is not identified, continue diagnosis. See SYMPTOM INDEX  .

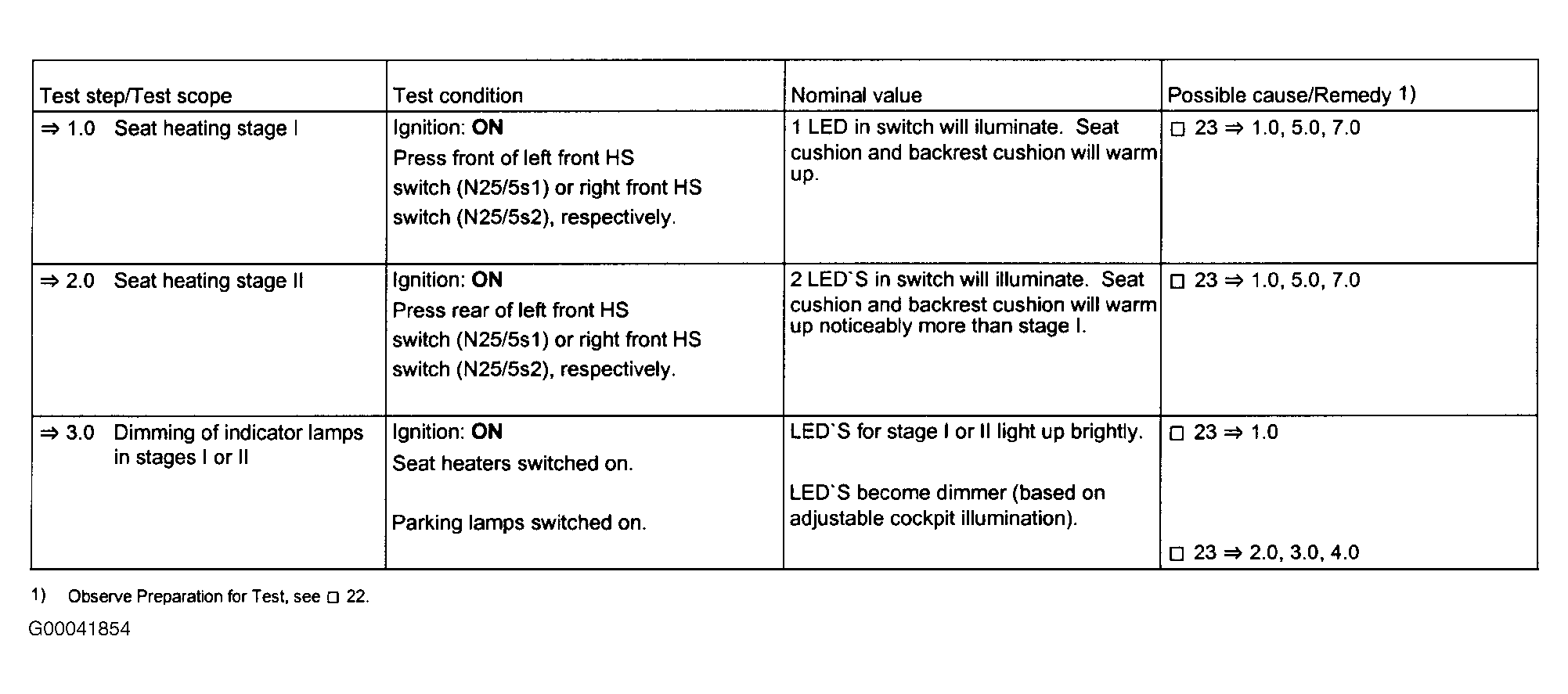

Fig 1: Function Test Chart
G00041854Courtesy of DAIMLERCHRYSLER CORPORATION
