Component Locations
Component Locations

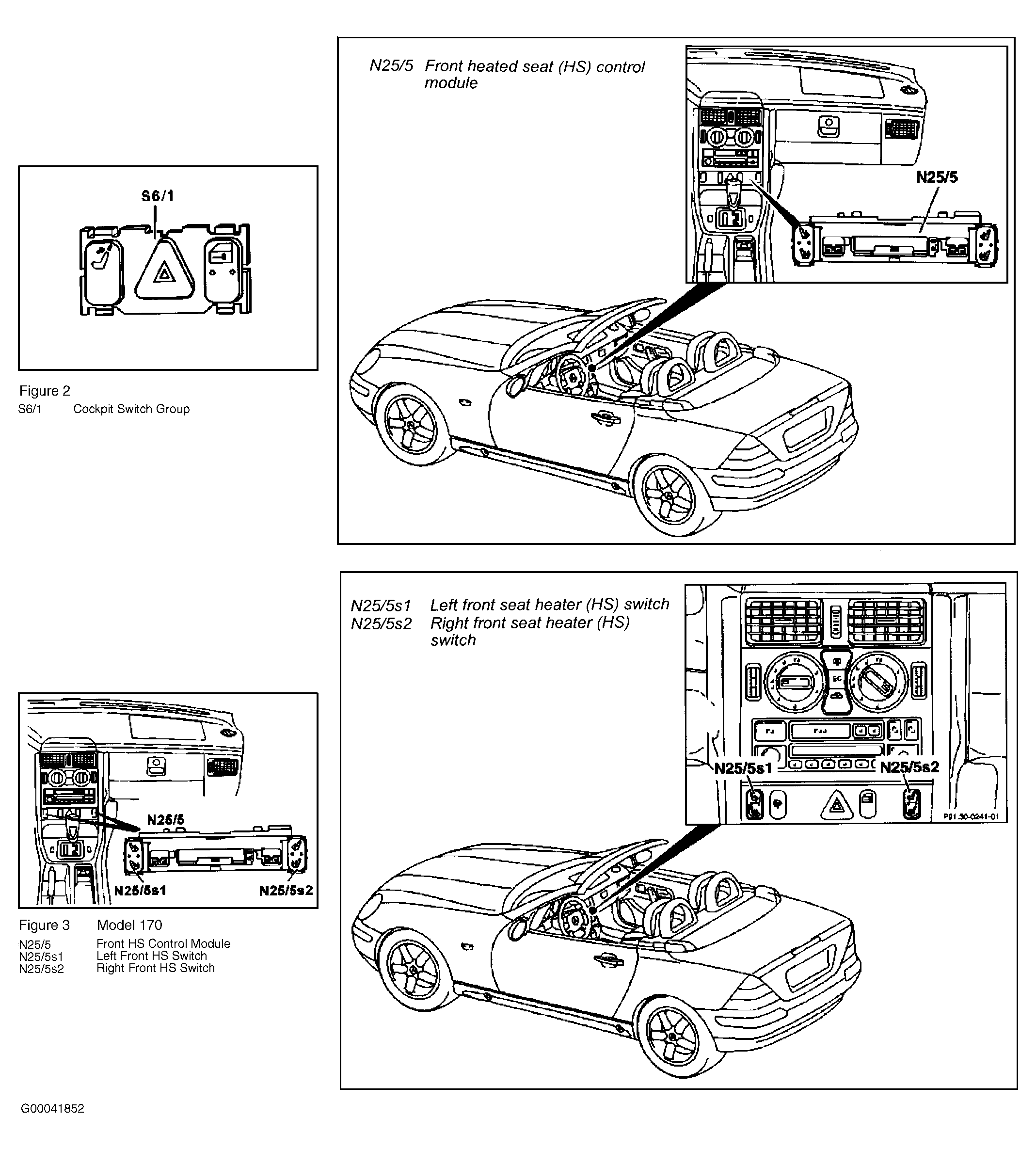

Fig 1: Component Locations (1 Of 2)
Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 2: Component Locations (2 Of 2)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of DAIMLERCHRYSLER CORPORATION
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
