Control Unit Box/Engine Separation Point Connector End View (X35/63)

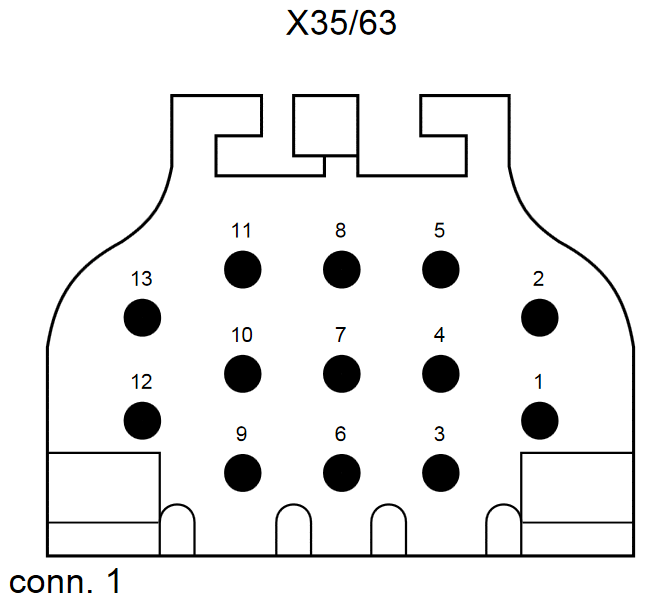

Fig 1: Control Unit Box/Engine Separation Point Connector End View (X35/63)

G10969535

Courtesy of MERCEDES-BENZ USA
