Shift pattern display, function - GF27.19-P-5129-03PZ

Transmission 722.6 in model 203 as of 01.06.03 up to 23.04.04, 215, 220 (except 215.374/379, 220.074/174/179) as of 01.09.02

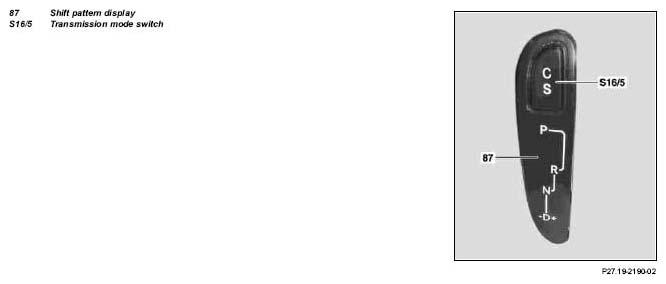

Fig 1: Identifying Shift Pattern Display And Transmission Mode Switch (Transmission 722.6 Model 203 As Of 01.06.03 Up To 23.04.04)
G04732568

The program selection performed with the driving program switch (S16/5) is sent from the ETC control unit (N15/3) to the instrument cluster A1 and the selector lever position is sent from the electronic selector lever module control unit (N15/5) to the instrument cluster ().

The program selection performed at the transmission mode switch (S16/5) only remains stored after a driving time of approx. 1 minute and is then displayed again once the engine is started again. The driving time of approx. 1 minute is necessary because of the system. The selector diagram system of symbols (87) is illuminated when the driving lamps are switched on
