Electric control module, function - GF27.19-P-5104-02G

Transmission 722.6

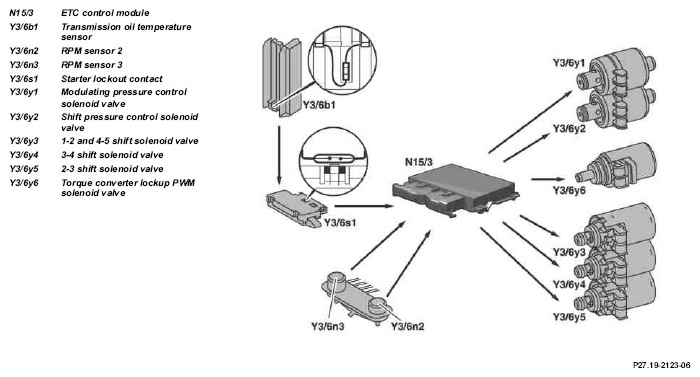

Fig 1: Identifying Electric Control Module Function
G04606419

Operation

Signals from the ETC control module (N15/3) are converted into hydraulic functions in the electric valve control unit (Y3/6). The rpm sensors (Y3/6n2, Y3/6n3), the starter lockout contact (Y3/6s1) and the transmission oil temperature sensor (Y3/6b1) of the electrical control unit (Y3/6) supply the ETC control module (N15/3) with input signals.

The solenoid valves are controlled by the ETC control module (N15/3) and trigger the hydraulic functions.
