Steering column drive position recognition microswitch position - GF46.15-P-4102-01S

The microswitch for steering column driving position (M20s1)  is located on the steering column.

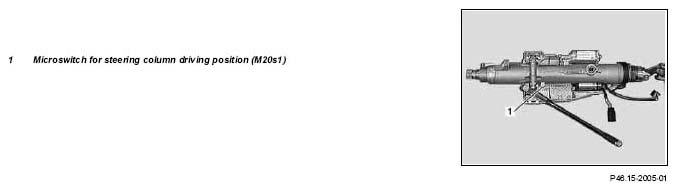

Fig 1: Identifying Microswitch For Steering Column Driving Position (M20S1)
G04852964
