Seat belt tensioner control module with airbag, location/task/design/function - GF91.60-P-4006B: Notes
MODEL 210 Applicable to 30.6.99 for vehicles with code 290 (window airbags)
MODEL 210 Applicable to 30.6.99 for vehicles with code 293 (left and right rear side airbags)
MODEL 210 as of 1.6.98 up to 30.6.99 with CODE (491) U.S. version
MODEL 210 Applicable from 1.6.98 to 30.6.99 for vehicles with code 498 (Japanese version)
MODEL 210 Applicable as of 1.7.99, 215, 220
Location on models 210, 215, 220

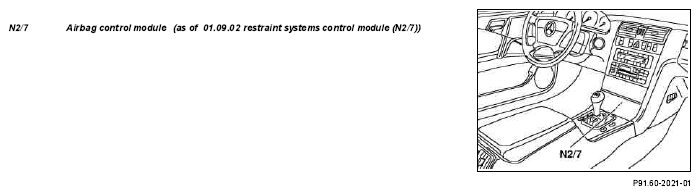

Fig 1: Identifying Airbag Control Module (N2/7) (As Of 01.09.02 Restraint Systems Control Module (N2/7)) (Models 210, 215, 220)
Location on model 210

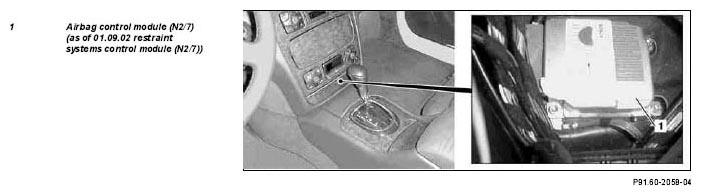

Fig 2: Identifying Airbag Control Module (N2/7) (As Of 01.09.02 Restraint Systems Control Module (N2/7)) (Models 210)
| Control module for emergency belt tensioners with airbags, location | The airbag control module (N2/7) (as of 1.09.02 restraint systems control module (N2/7)) on models 215, 220 is located on the transmission tunnel in front of the gearshift guide plate under the center console. | ||
| MODELS 215, 220 to 31.8.02 | GF91.60-P-4006-01S | ||
| Model 210 | GF91.60-P-4006-01B | ||
| Belt Tensioner Control Module with Airbag - Task | GF91.60-P-4006-02B | ||
| Control module for emergency belt tensioners with airbags - design | The airbag control module (N2/7) (as of 1.09.02 restraint systems control module (N2/7)) is accommodated in an aluminum housing. The housing and the electrical connection are insensitive to electromagnetic interference radiation | ||
| Emergency tensioning retractor with airbag control module, function | GF91.60-P-4006-04B |
