Trunk lid opening angle detection sensor position/task/design/function - GF80.20-P-4113A

MODELS 215, 220 with CODE (881b) Remote trunk locking (RTL)

Shown on model 220

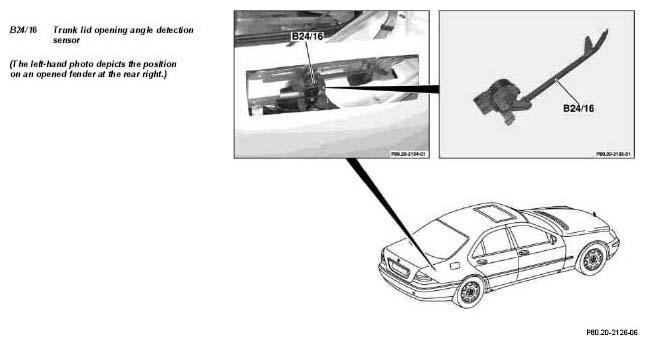

Fig 1: Identifying Trunk Lid Opening Angle Detection Sensor - Shown On Model 220

	Trunk lid opening angle detection sensor, position	In the trunk at right below the multiple-jointed hinge
	Trunk lid opening angle detection sensor, task	Recording of trunk lid opening angle Recording of speed changes in trunk lid in event of malfunction
	Trunk lid opening angle detection sensor, design	Plastic rod serving as connection to multiple-joint hinge Potentiometer with electric connection to pneumatic control module (combined) (A37)
	Trunk lid opening angle detection sensor, function	Recording of limit stop position Recording of speed changes in trunk lid movements
