Voice control system (VCS) function diagram - GF82.70-P-0002-02P

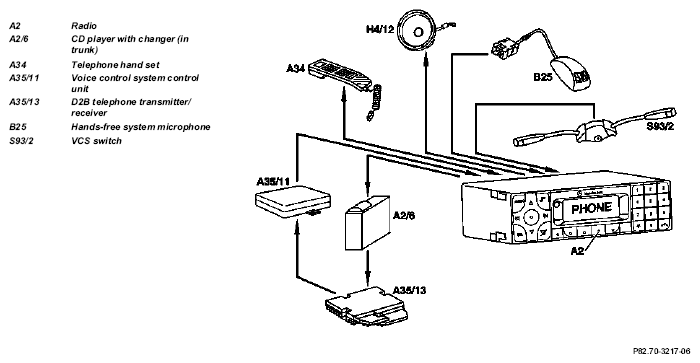

Shown on model 220 with code (316) MB D-network telephone (D2B)

Fig 1: Identifying Voice Control System Function Diagram - Shown On Model 220 With Code (316) MB D-Network Telephone (D2B)
G04633596

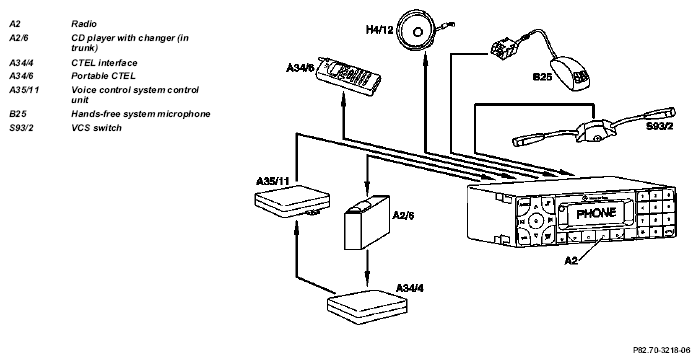

Shown on model 220 with code (317) D-net portable CTEL telephone (D2B)

Fig 2: Identifying Voice Control System Function Diagram - Shown On Model 220 With Code (317) D-Net Portable CTEL Telephone (D2B)
G04633597
