Voice control system (VCS) function diagram - GF82.70-P-0002-02E

Models 202, 208.3, 210 as of 1.6.98, 215, 220 with code 316 (MB D-network telephone (D2B))

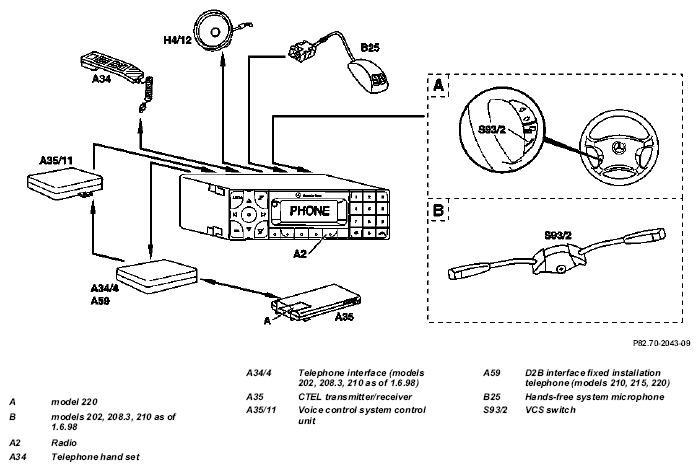

Fig 1: Identifying Voice Control System (VCS) Function Diagram (2 Of 5)

Models 202, 208.3, 210, 220 as of 1.6.98 with code 317 (D-net portable CTEL telephone (D2B))

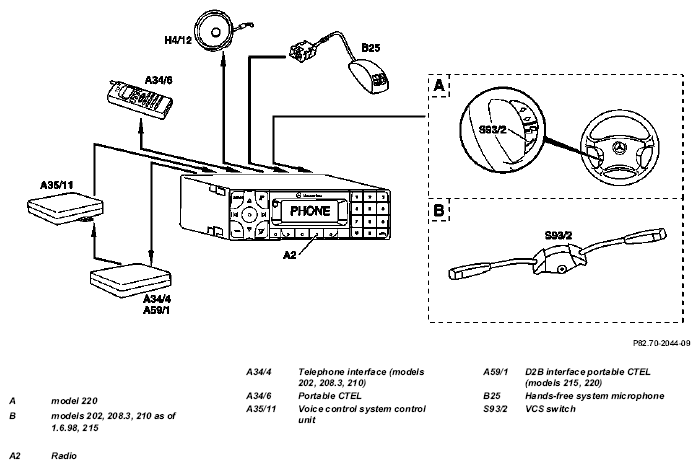

Fig 2: Identifying Voice Control System (VCS) Function Diagram (3 Of 5)
