Fiber optic cable interface, location - GF82.70-P-3106-01D

Models 215, 220 with code 352a and code 494a

Illustrated on model 220

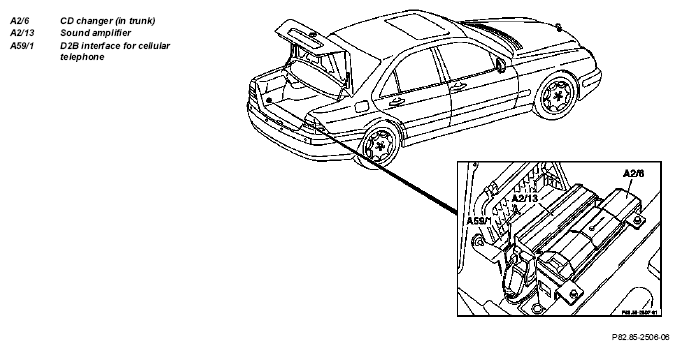

Fig 1: Identifying Fiber Optic Cable Interface Location - Illustrated On Model 220
G04841053
