Temperature sensor, location / task / design / function - GF27.19-P-5108G: Notes
TRANSMISSION 722.6

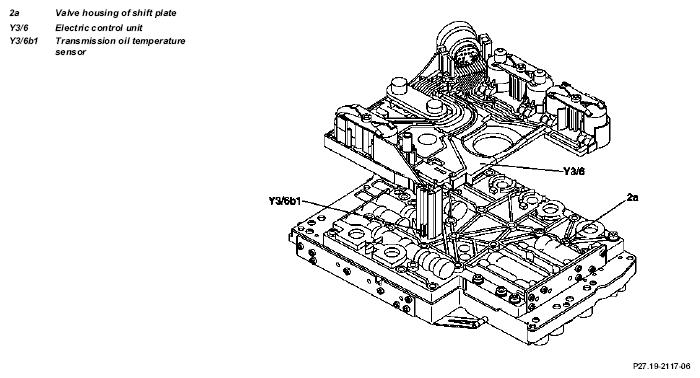

| Temperature sensor, location | The transmission oil temperature sensor (Y3/6b1) is located in the electrical control unit (Y3/6) and is permanently connected to the conductor tracks. | ||
| Temperature sensor, task | To measure the temperature of the transmission oil and pass the temperature to the ETC control unit (N15/3) as an input signal. | ||
| Temperature sensor, design | Temperature-dependent resistor (PTC). | ||
| Temperature sensor, function | GF27.19-P-5108-04G |
