Location / task / function of position indicator - GF27.19-P-5129P: Notes

TRANSMISSION 722.6 in MODEL 203, 209.3 (except, 209.376) up to 31.5.03, 215, 220 up to 31.8.02

Shown in model 203.0

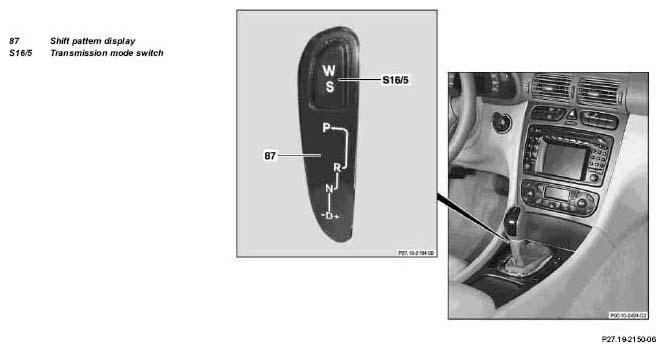

Fig 1: Identifying Shift Pattern Display And Transmission Mode Switch (Transmission 722.6 Model 203, 209.3 Up To 31.5.03) - Shown In Model 203
G04732569
  Position display, location The position display (shift pattern display (87)) is housed in the cover of the center shifter console. In addition a gear display and transmission mode display is located in the instrument cluster (A1).
  Position display, task   GF27.19-P-5129-02P
  Position display, function Models 203, 215, 220 GF27.19-P-5129-03P
    Model 209 GF27.19-P-5129-03Q
