Overlap regulating valve, location / task / function - GF27.60-P-5137G: Notes
TRANSMISSION 722.6

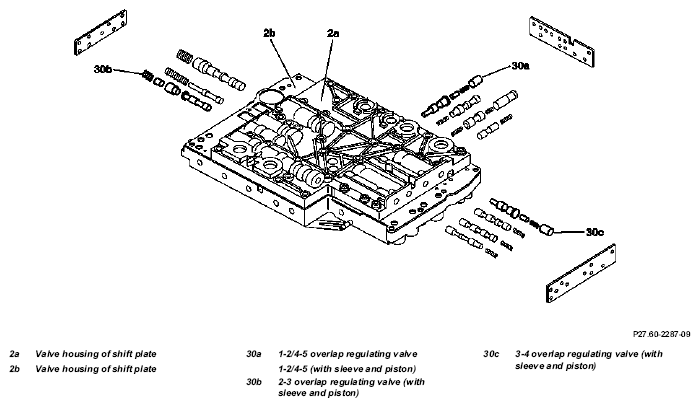

| Overlap regulating valve, location | Each shift group is assigned one overlap regulating valve. The 1-2/4-5 overlap regulating valve (30a) is installed in the valve housing of the shift plate (2b), the 2-3 overlap regulating valve (30b) and 4-5 (30c) are installed in the valve housing of the shift plate (2a). | ||
| Overlap regulating valve, location | The overlap regulating valve regulates the pressure reduction during a shift phase. | ||
| Overlap regulating valve, function | GF27.60-P-5137-04G |
