Control solenoid valve, location/task/design/function - GF27.19-P-5111N: Notes

TRANSMISSION 722.9 in MODEL 171.4, 203, 209, 211, 215, 219, 220, 230

TRANSMISSION 722.9 in MODEL 463.303 /340 /341

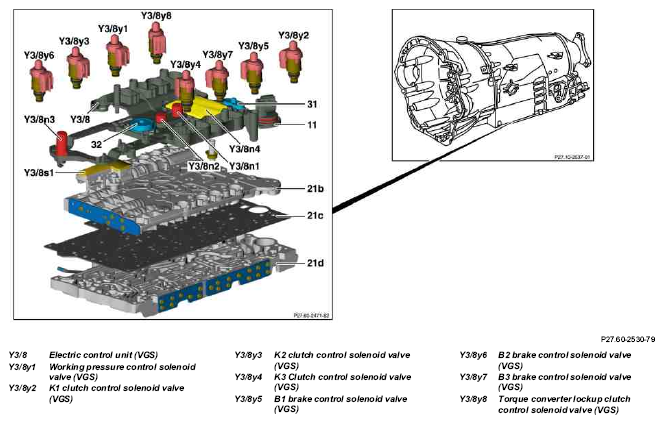

Fig 1: Identifying Control Solenoid Valve - Transmission 722.9

Control solenoid valve, location	The control solenoid valves are mounted on the electric control unit (VGS) (Y3/8).
Control solenoid valve, task	Working pressure control solenoid valve	GF27.19-P-5111-01A
	Clutch control solenoid valve K1	GF27.19-P-5111-01B
	Clutch control solenoid valve K2	GF27.19-P-5111-01C
	Clutch control solenoid valve K3	GF27.19-P-5111-01D
	Brake control solenoid valve B1	GF27.19-P-5111-01E
	Brake control solenoid valve B2	GF27.19-P-5111-01F
	Brake control solenoid valve B3	GF27.19-P-5111-01G
	Torque converter lockup clutch control solenoid valve	GF27.19-P-5111-01H
Control solenoid valve, design	With the control solenoid valves used the proportional solenoids convert the electric signals of the fully integrated transmission control (VGS) control unit (Y3/8n4). The float needles can also be moved into intermediate positions as a result.
Control solenoid valve, function	The control solenoid valves assign a proportional pressure to a current regulated by the fully integrated transmission control (VGS) control unit (Y3/8n4).
