Tandem pump, location/task/design/function - GF46.30-P-3300A: Notes
MODEL 215
MODEL 220, 230 with CODE (487a) Active body control (ABC)
Manufacturer identification
LFR430=
LuK Vehicle hydraulics GmbH & Co KG

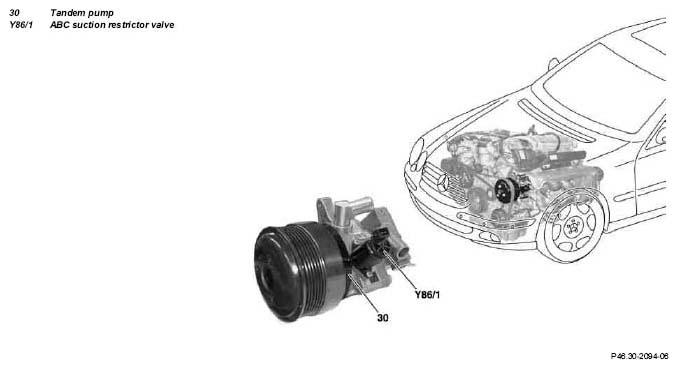

| Tandem pump, location | On front side of engine. | ||
| Tandem pump, task | Produces different oil pressures and volume flows irrespective of engine speed for the steering system and the active body control (ABC) system. | ||
| Tandem pump, design | GF46.30-P-3300-03A | ||
| Tandem pump, function | Power steering pump component | GF46.30-P-3300-04A | |
| Radial piston pump component (ABC) | GF46.30-P-3300-04B |
