Adjusting steering column function - GF46.15-P-2000S

MODEL 215, 220

Shown on model 220:

Functional prerequisites

• No overvoltage or undervoltage

  and

• Circuit 15c ON or
• Circuit 15R ON or
• Circuit 15 ON or
• Driver's door open or
• Front passenger's door open
• No blocking  recognized
• Steering column in standardized  condition

Manual adjustment

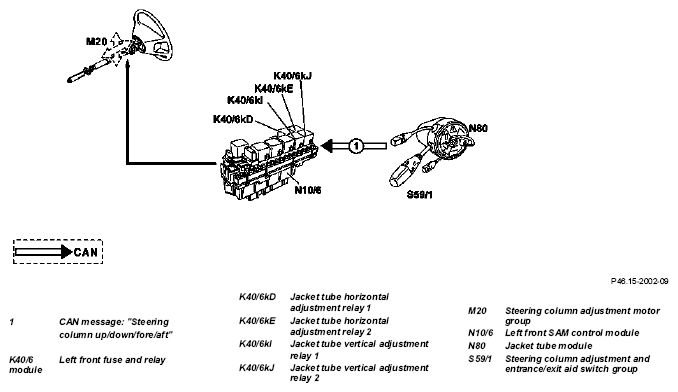

When the switches of the steering column adjustment and entrance/exit aid switch group (S59/1)  are operated, this is read in by the jacket tube module (N80)  and from there placed on the CAN bus as a message. The left front SAM control module (N10/6)  receives this message and actuates the telescopic adjustment motor (in/out) (M20m1)  and tilt adjustment motor (in/out) (M20m2)  via the left front fuse and relay module (K40/6)  as long as the switch is operated.

Automatic adjustment with memory function (special equipment)

When one of the memory buttons or the "Ergo" button in the left front door control module (N69/1)  (right-hand steering: front right door control module (N69/2) is pressed the corresponding steering column positions are also approached in addition to the stored driver's seat position and associated settings of the interior rearview and exterior rearview mirrors. For this a CAN message is sent to the left front SAM control module (N10/6)  . This control module then actuates the motors (M20m1, M20m2) via the door control module.

Entrance/exit aid

When the entrance/exit aid  function is called up the steering wheel is moved to the uppermost position, making it easier for the driver to get in and out.

Emergency running function

If the Hall sensors in the motors (M20m1, M20m2) are defective or if normalizing  is defective the emergency running function  enables the steering column to be moved into the driving position manually (airbag safety range).

	Entrance/exit aid steering column adjustment, function		GF46.15-P-2001S
	Emergency running function, steering column adjustment, function		GF46.15-P-2002S
	Position measurement, steering column adjustment motors, function		GF46.15-P-3000S
	Driving position recognition, steering column adjustment, function		GF46.15-P-3001S
	Normalizing steering column adjustment, function		GF46.15-P-3002S
	Blocking steering column adjustment, function		GF46.15-P-3003S
	Calling up stored positions, function	220.063 with code 275a only	GF91.29-P-2011S
	Storing memory positions, function	Left-hand steering only 220.063 with code 275a only	GF91.29-P-2012S
		Right-hand steering only 220.063 with code 275a only	GF91.29-P-2012SA
	Steering column adjustment motor group, location/task/design/function		GF46.15-P-4101S
	Left signal-acquisition and actuation module, location/task/design/function		GF54.21-P-4101S
